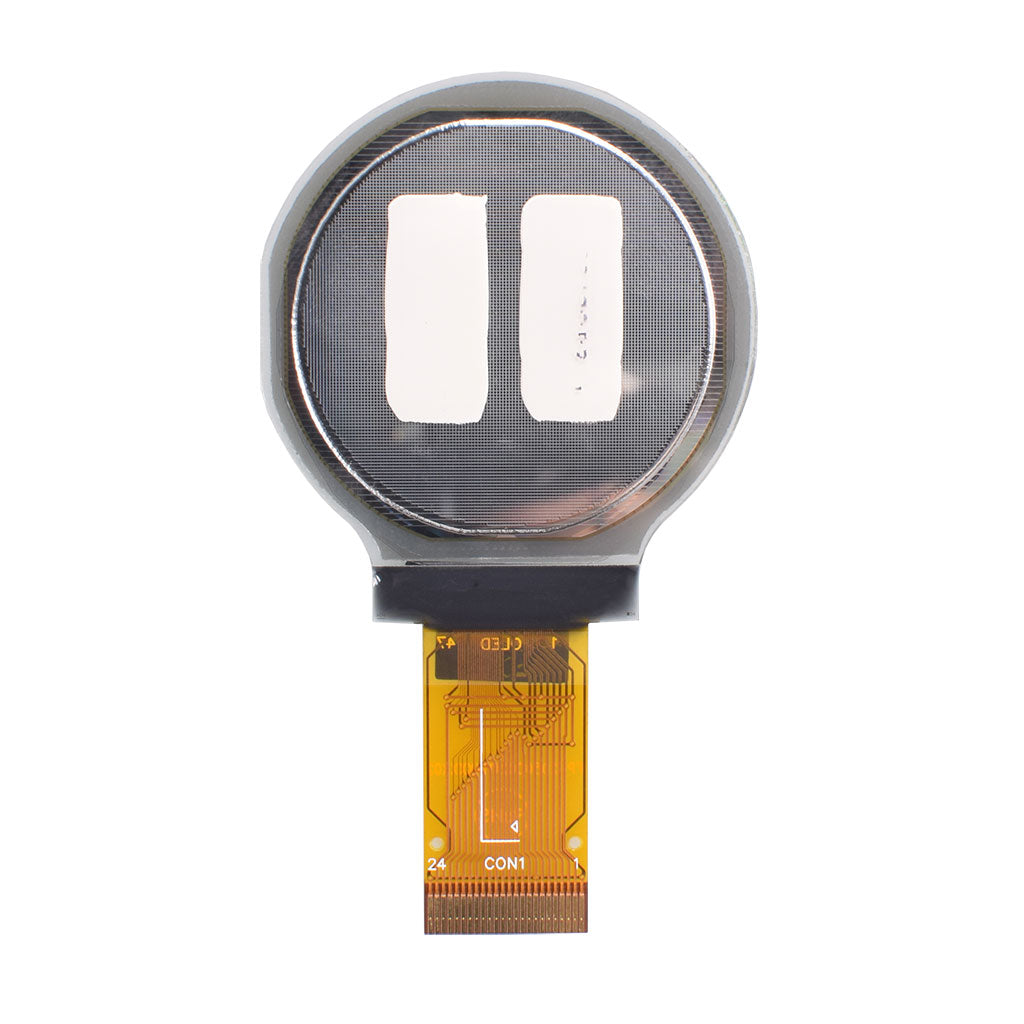

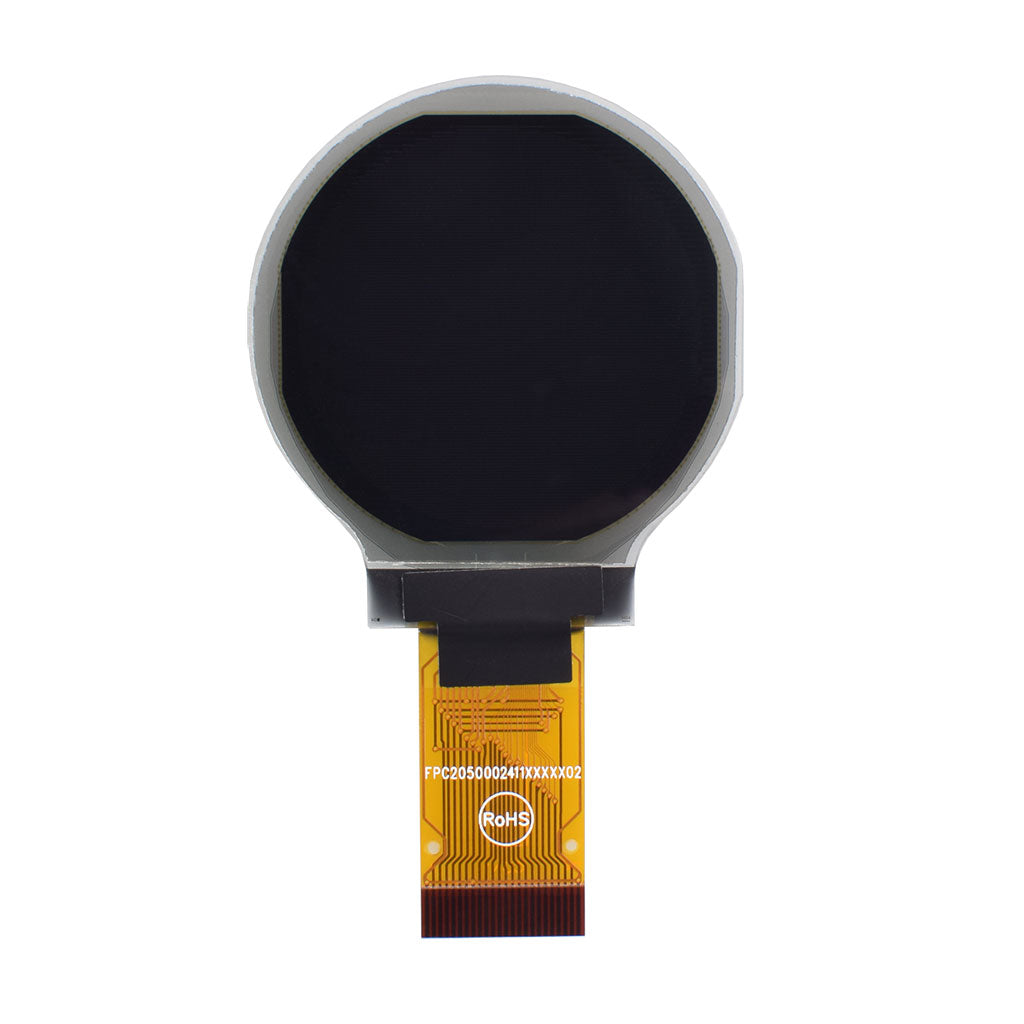

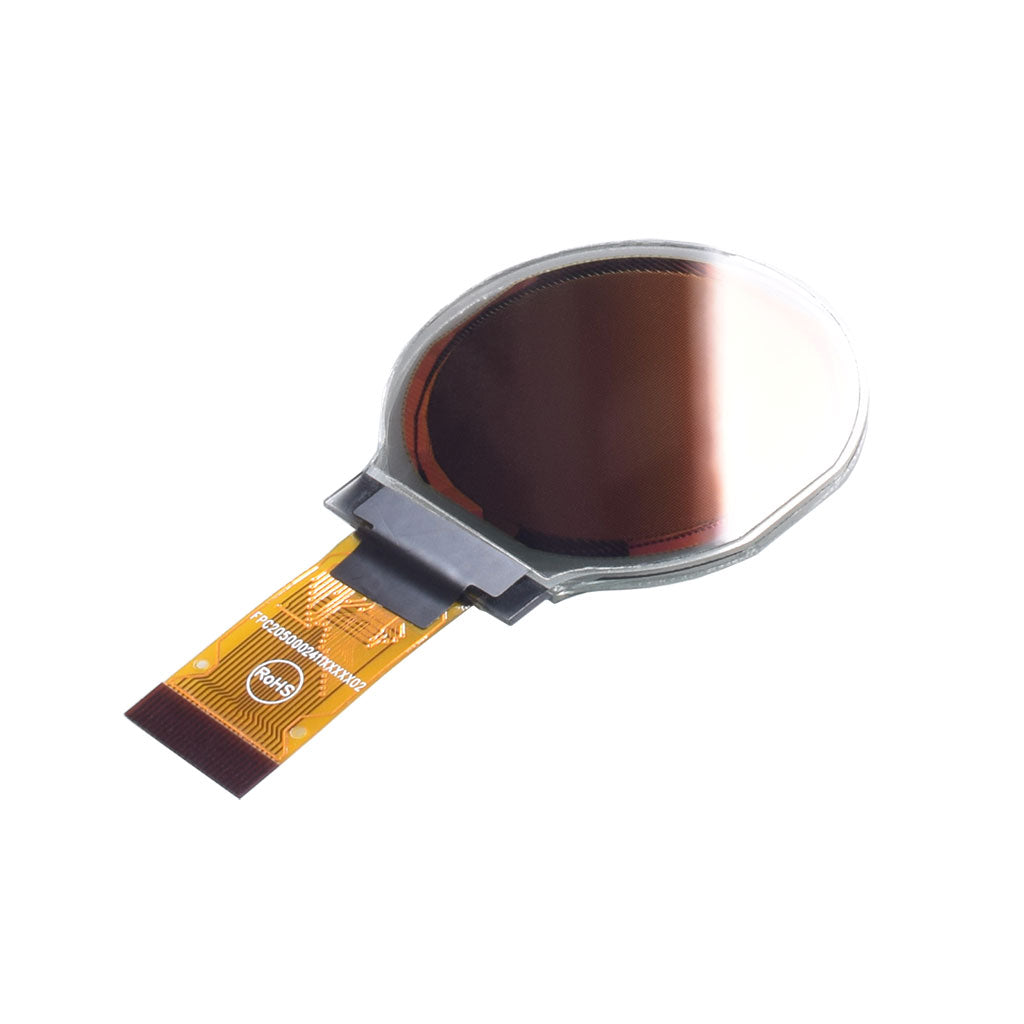

1.18" Round OLED Graphic Display 128x128 Monochrome - MCU, SPI, I2C
1.18" Round OLED Graphic Display 128x128 Monochrome - MCU, SPI, I2C
SKU:DM-OLED118-655
Regular price
$24.90 USD
Regular price
Sale price
$24.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| 1 pcs | original price |
| 5 pcs | 8% off |
| 10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
Display Specifications
- Resolution : 128x128 pixel
- Display Mode : Passive Matrix OLED
- Display Color : Monochrome (White/Yellow/Blue)
- Module Dimension : 36.98×41.23x2.05 mm
- Viewing Area : 30×30 mm
- Power Supply : 3.0 V
- Interface : 6800/8080 MCU,SPI,I2C
- Controller IC : SSD1327ZB
- Operation Temperature : -40℃~80℃
- Storage Temperature : -40℃~85℃
Dimensions
Resources
- Datasheet :DM-OLED118-655、SSD1327-Rev1.8
- Example code : SSD1327ZB-SPI-128x128
- 3D : DM-OLED118-655
- Viedo : DM-OLED118-655
