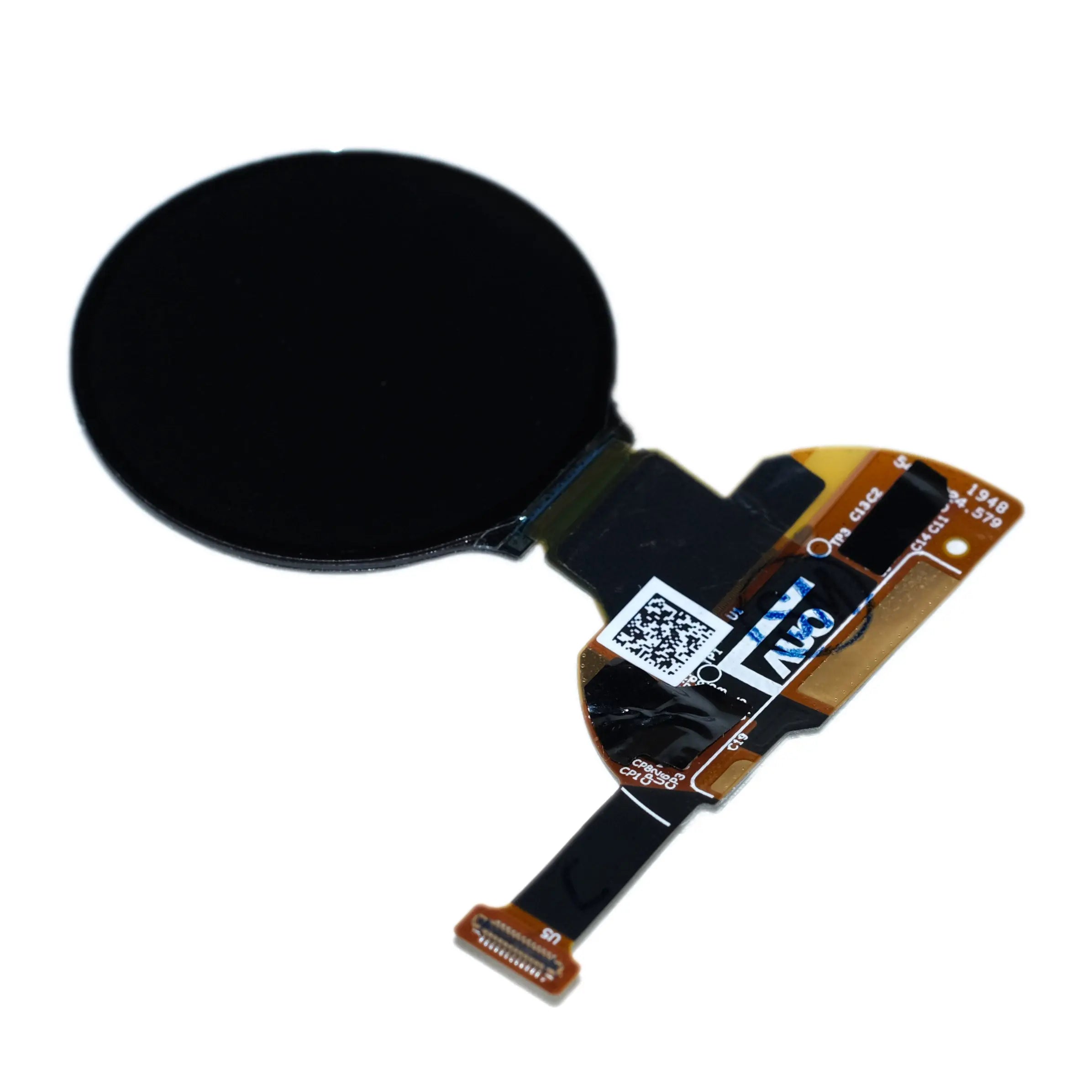

Display Specifications
- Diagonal Dimension : 1.20 inch
- Resolution : 390 x 390 pixel
- Display Color : Hyper R.G.B
- Touch Mode : None
- Module/Panel Dimension : 33.22 (H) × 34.72 (V) × 0.66(T) mm
- Viewing Area : 30.42 (H) × 30.42 (V) mm
- Supply Voltage : 1.8 V
- Luminance : 350 cd/m2
- Interface : MIPI (command mode) + SPI
- Controller IC : RM67162
- Operation Temperature : -20 ~ 70 °C
- Storage Temperature : -30 ~ 80 °C
Dimensions
Resources
- Datasheet : DM-OLED12-667、RM67162
- Example code : RM67162-MIPI-390x390
- 3D : DM-OLED12-667
- Video : DM-OLED12-667
