1.39" Round AMOLED Display 400x400 300nits 16.7M-Colors - MIPI

$39.90
Shipping calculated at checkout.
SKU: DM-OLEDC139-654
Set: Panel-20pin
1.39-inch Round AMOLED Display, 400x400 resolution, 300 nits, 16.7M colors, MIPI interface
$39.90
Panel-20pin

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 1.39 inch
  • Resolution : 400x400 pixel
  • Display Color : 16.7M(Maximum)
  • Touch Mode : None
  • Module/Panel Dimension : 38.6x40.5x0.7 mm
  • Viewing Area : 35.4x35.4 mm
  • Supply Voltage : 1.8 V
  • Luminance : 300 cd/m2
  • Interface : MIPI
  • Controller IC : Raydium RM69080
  • Operation Temperature : -
  • Storage Temperature : -

Dimensions



Resources

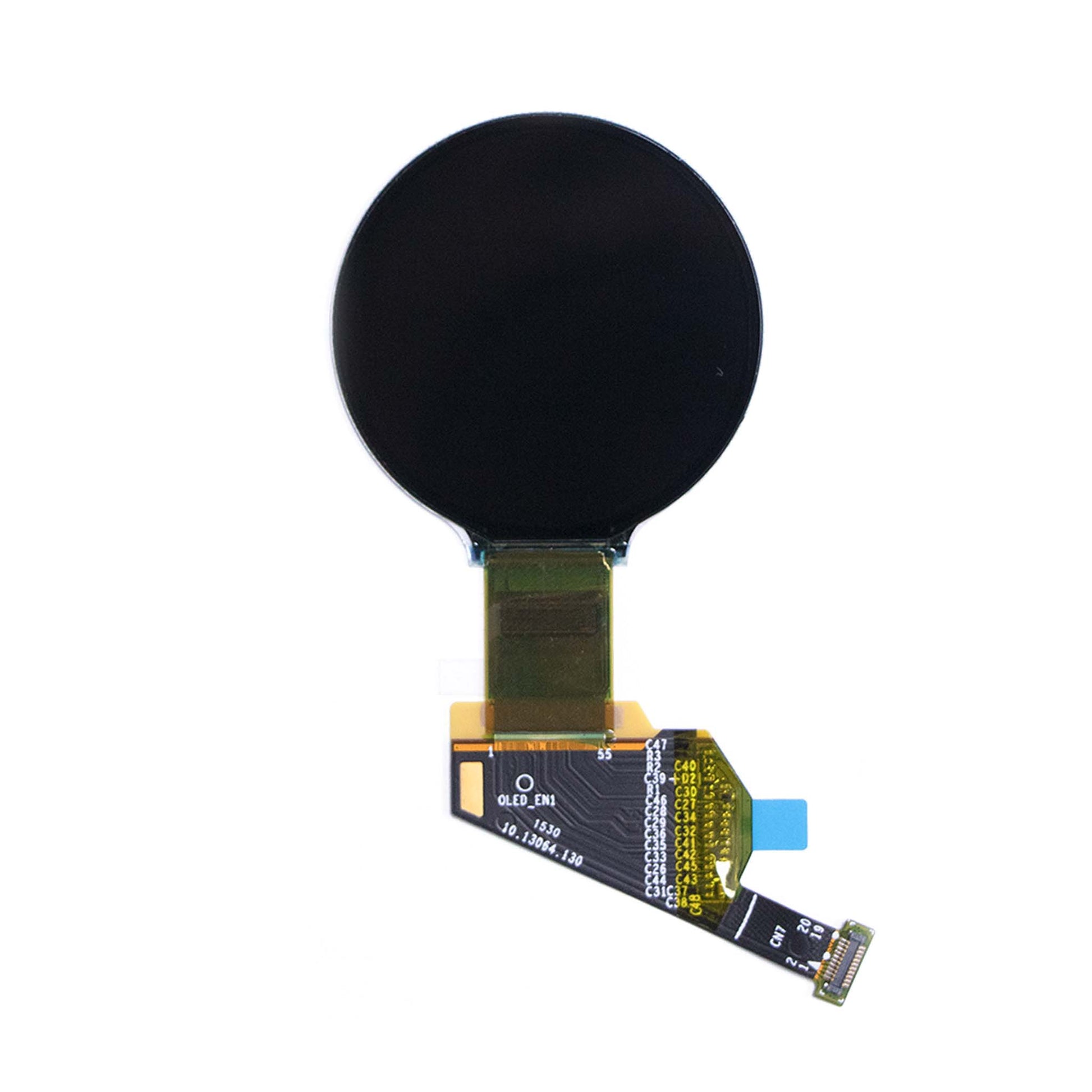

  • 1.39-inch Round AMOLED Display, 400x400 resolution, 300 nits, 16.7M colors, MIPI interface

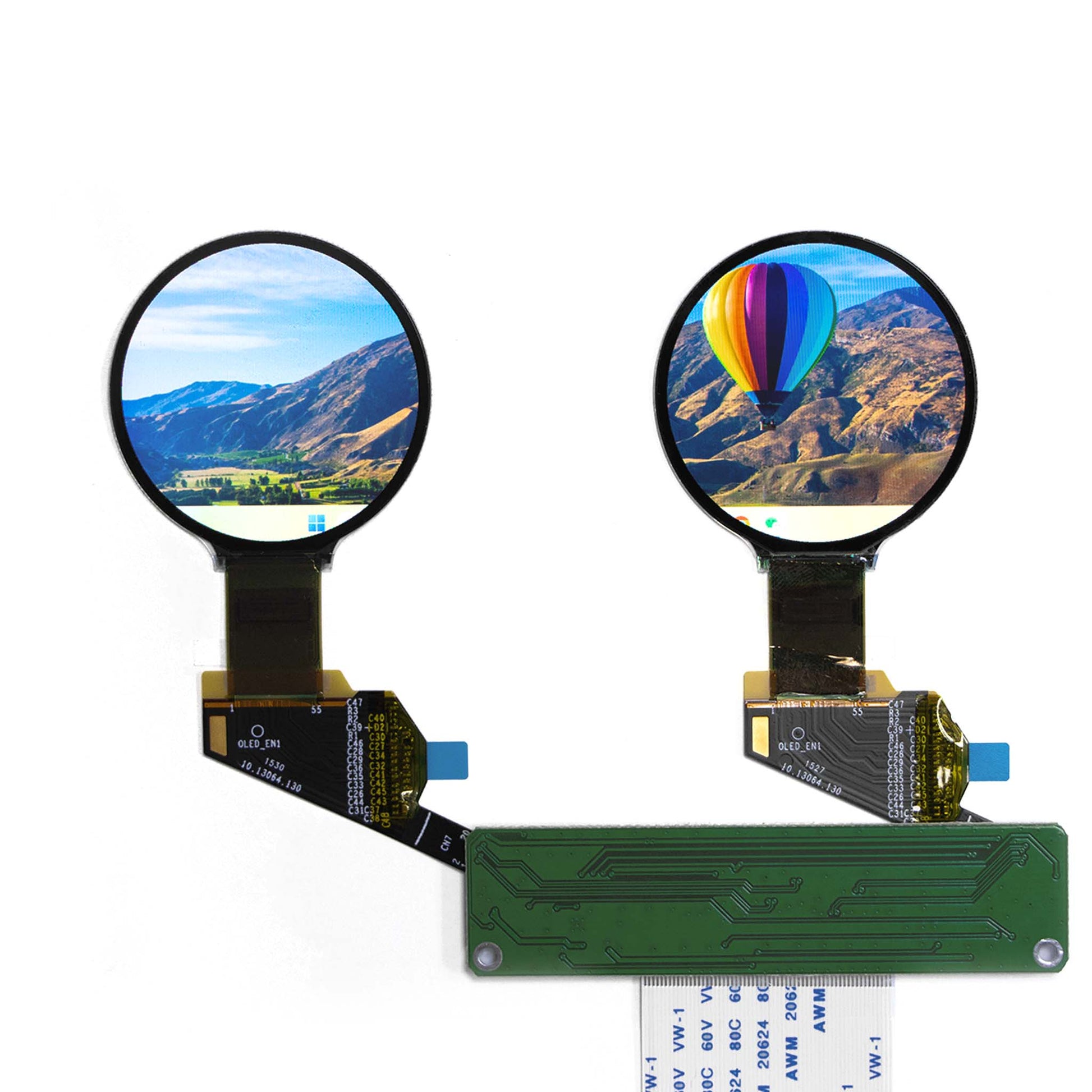

  • Two round display panels connected to an adapter board

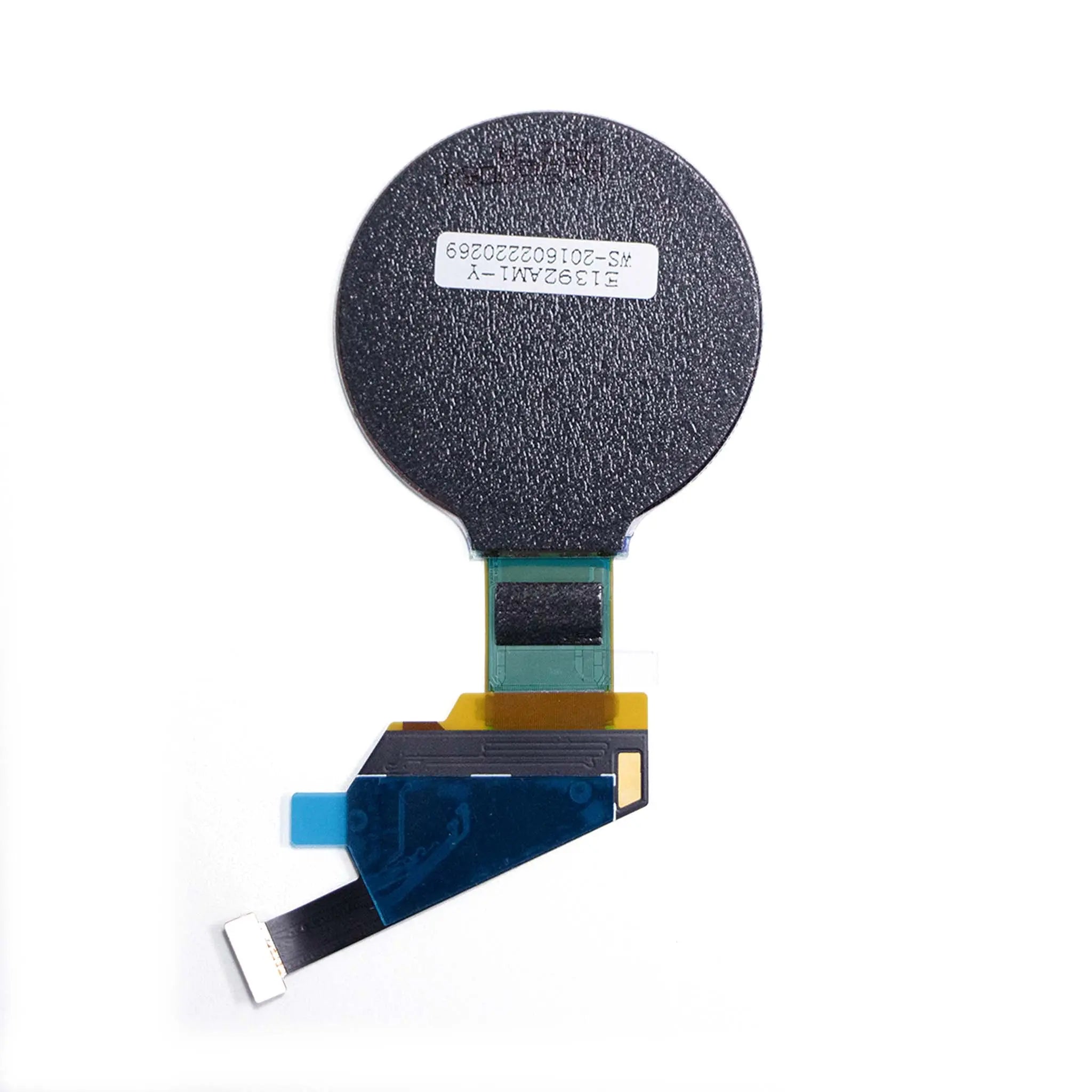

  • Back of 1.39-inch Round AMOLED Display Module

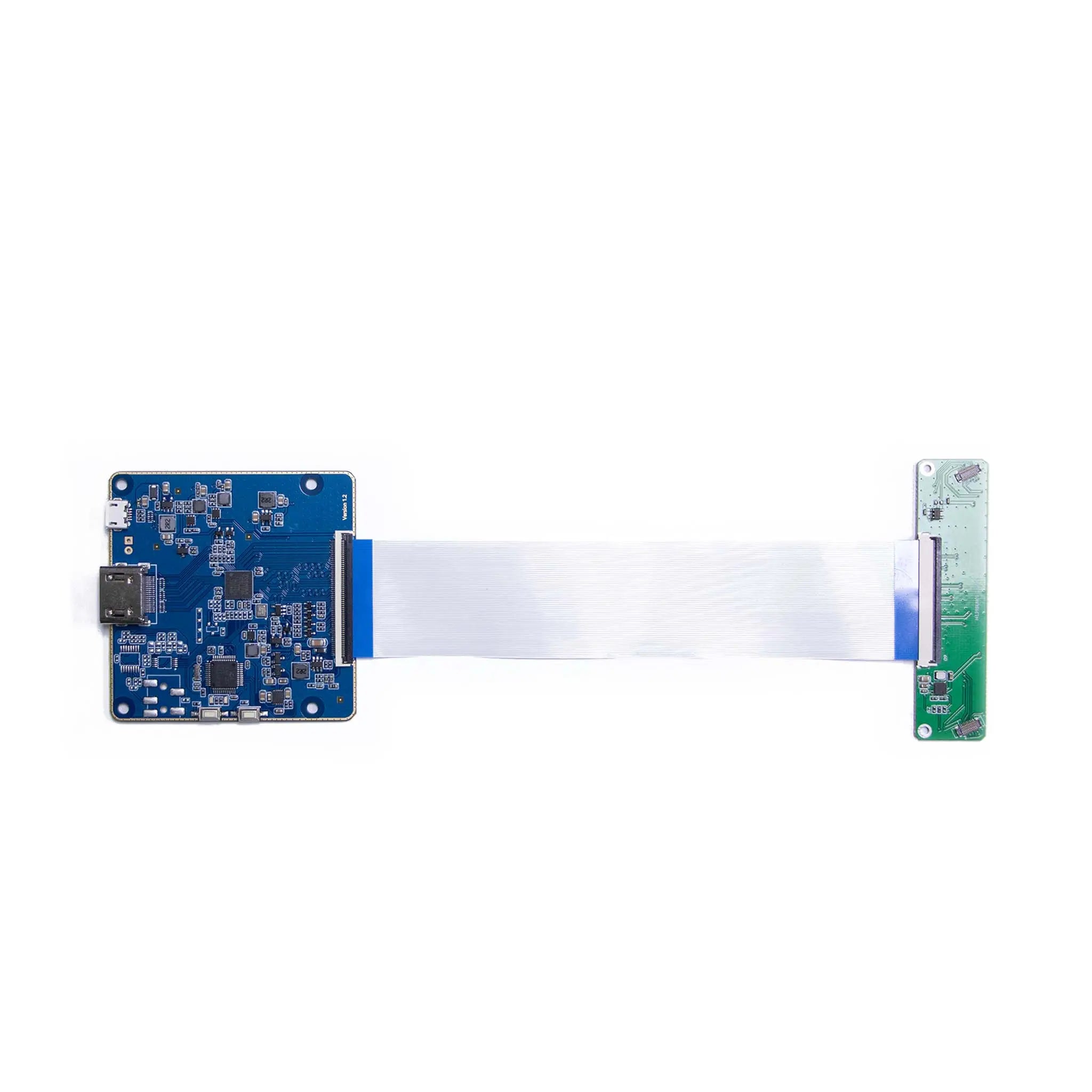

  • Adapter for 1.39-inch Round AMOLED Display, 400x400 resolution

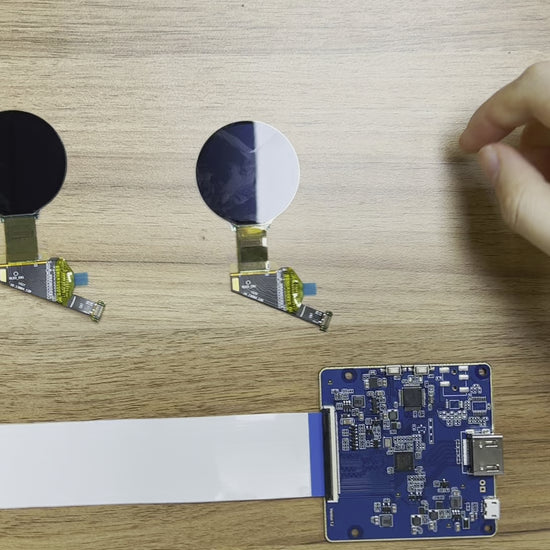

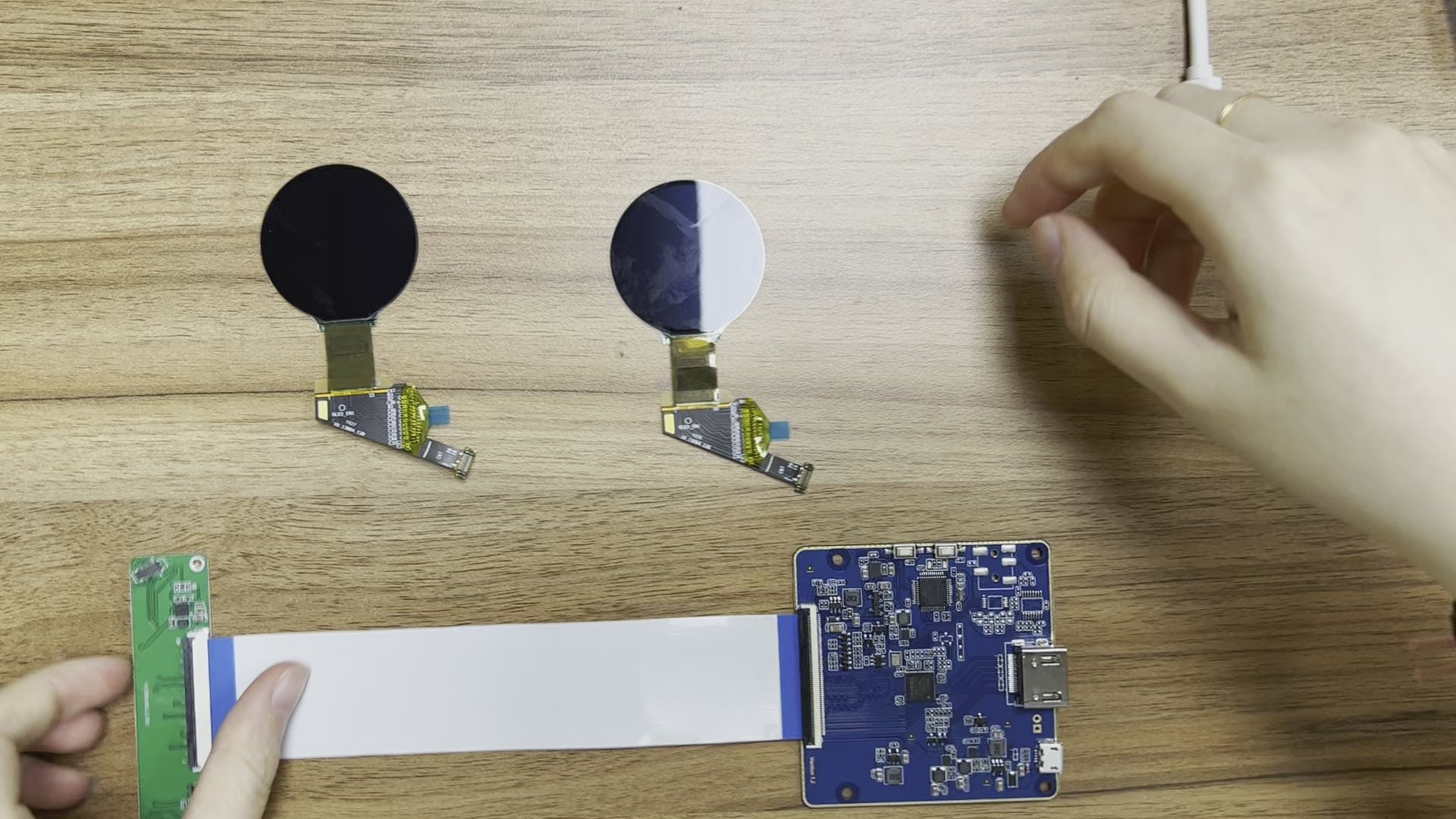

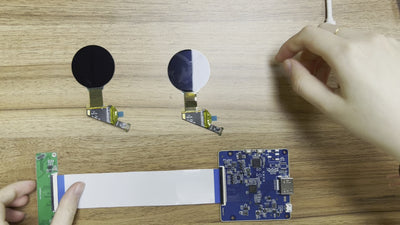

  • Video of connecting two 1.39-inch screens with adapter
