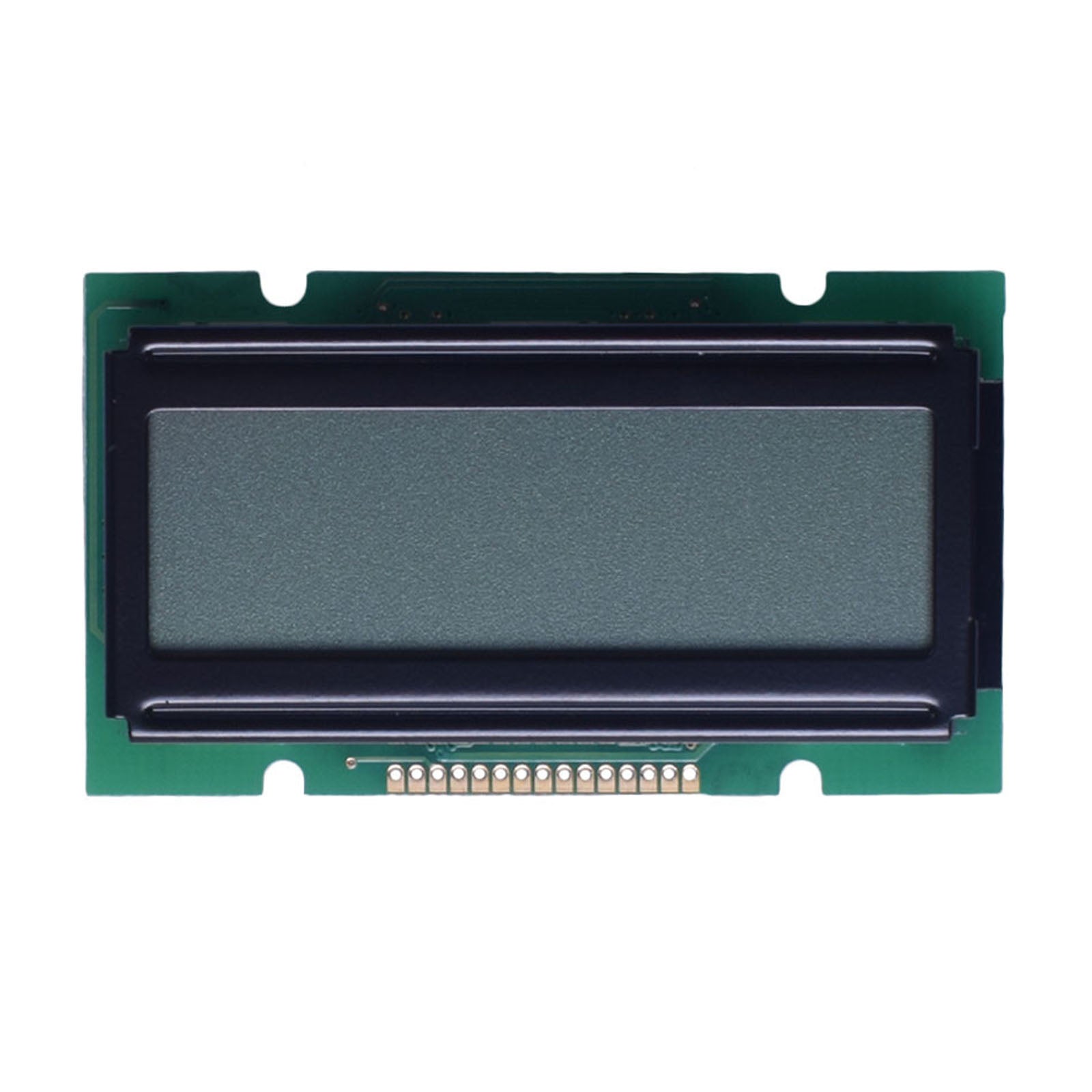

• 12x2 character LCD module in gray color with MCU interface

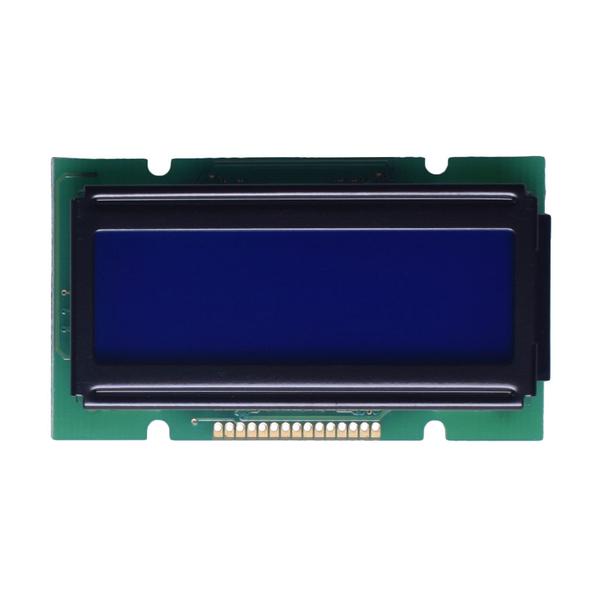

  • 12x2 character LCD module in blue color with MCU interface

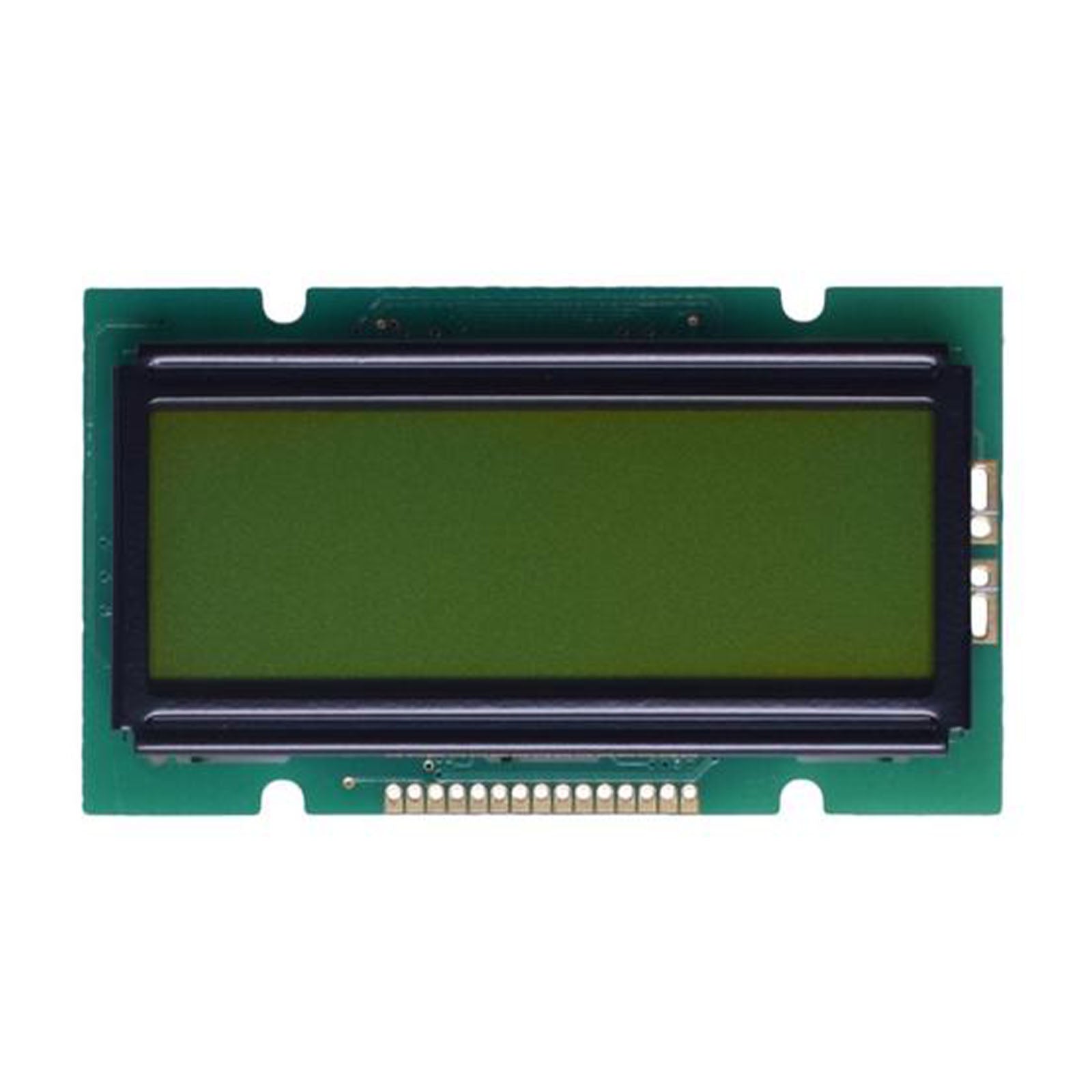

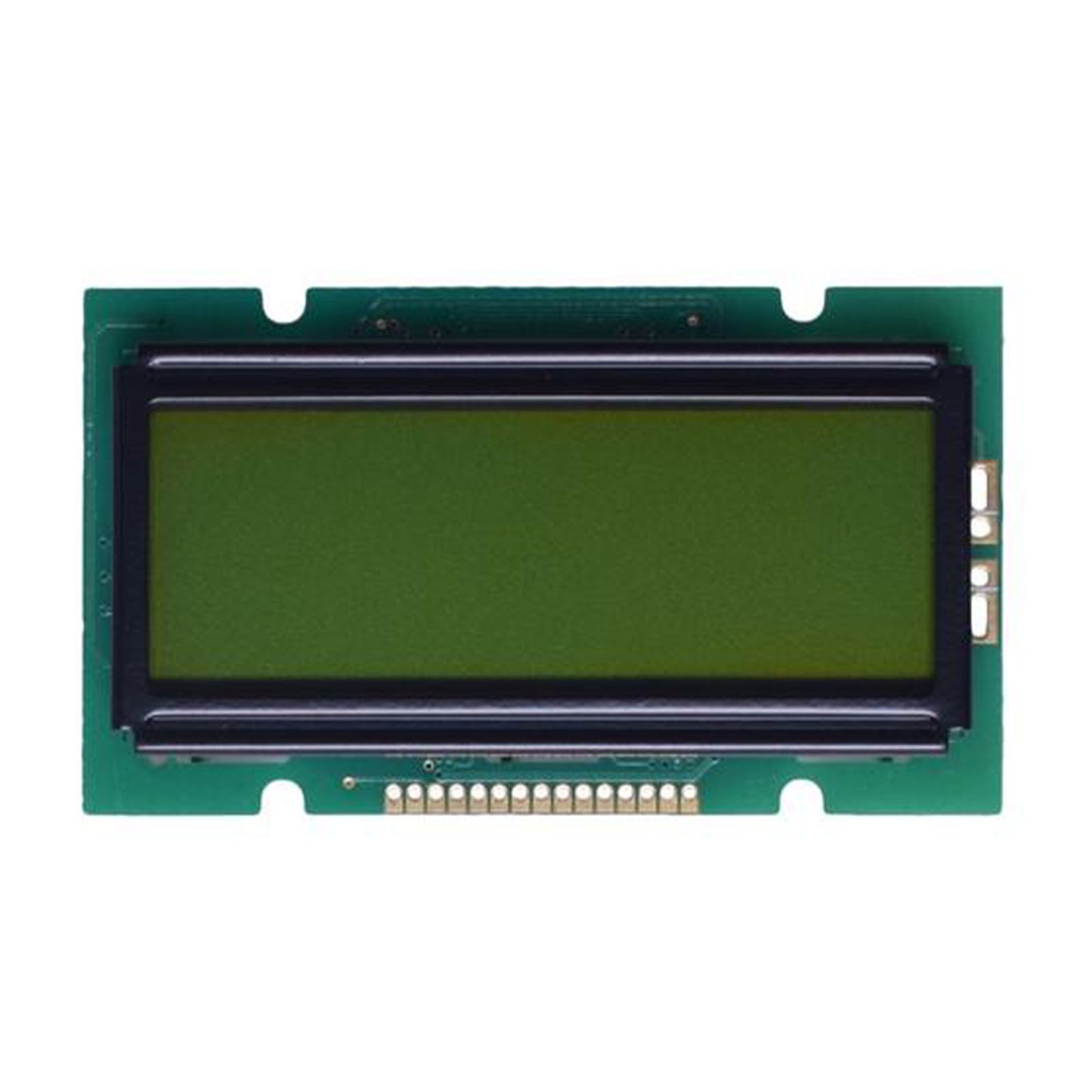

  • 12x2 character LCD module in green color with MCU interface

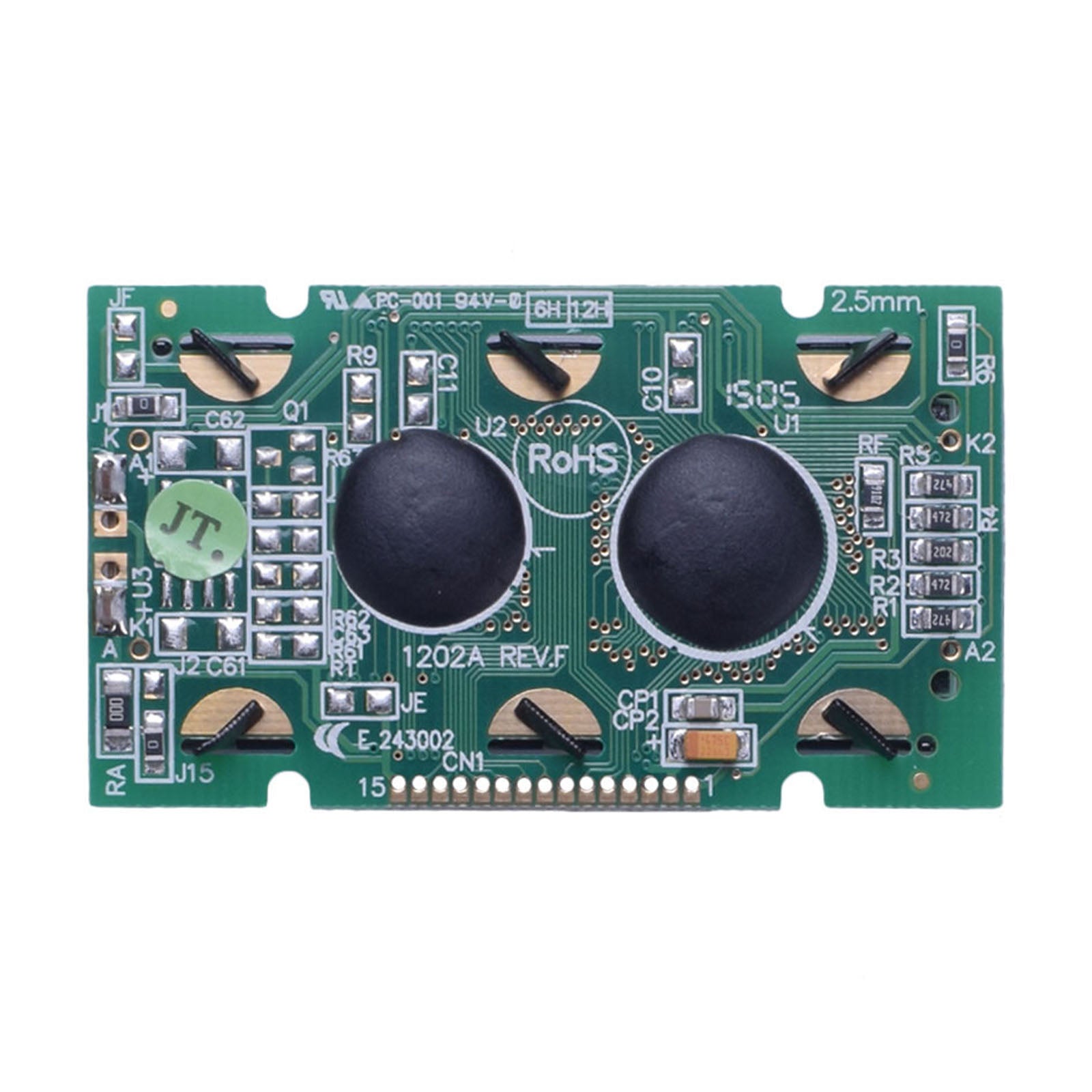

  • back of 12x2 character LCD module with MCU interface

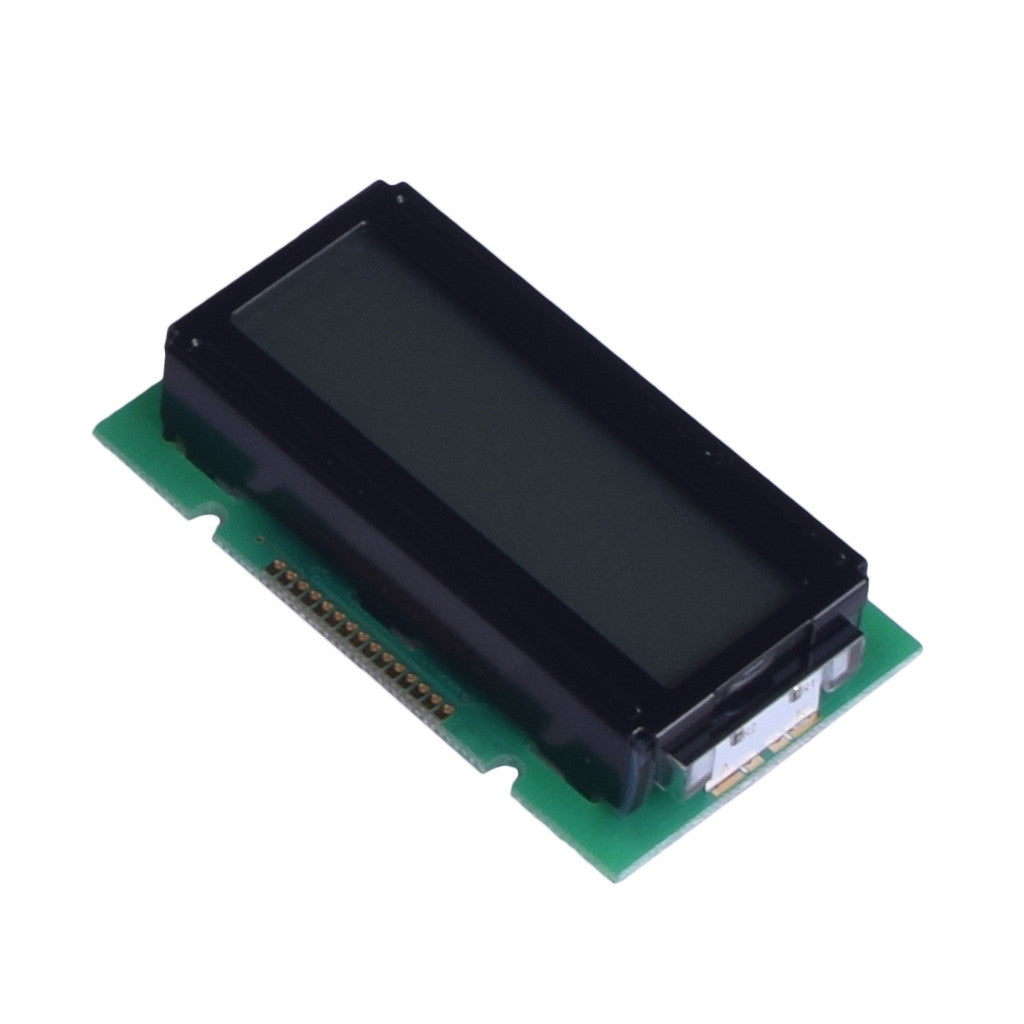

  • top view of 12x2 character LCD module
1 / 1

12x2 Gray/Blue/Yellow Green Character LCD - MCU

$7.90
Shipping calculated at checkout.
SKU: DM-LCD1202-418
Panel Color: Gray
12x2 character LCD module in gray color with MCU interface
$7.90
Gray

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Display Format : 12 characters x 2 lines
  • Display Mode : FSTN Positive, Transflective
  • View Direction : 6:00
  • Module Dimension : 55.7 x 32.0 x 14.5(MAX) mm
  • Power Supply : 5.0 V
  • Backlight : White LED
  • Interface : 6800 Series MPU Interface
  • Controller IC : ST7066U
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 23.4 g

Dimensions
