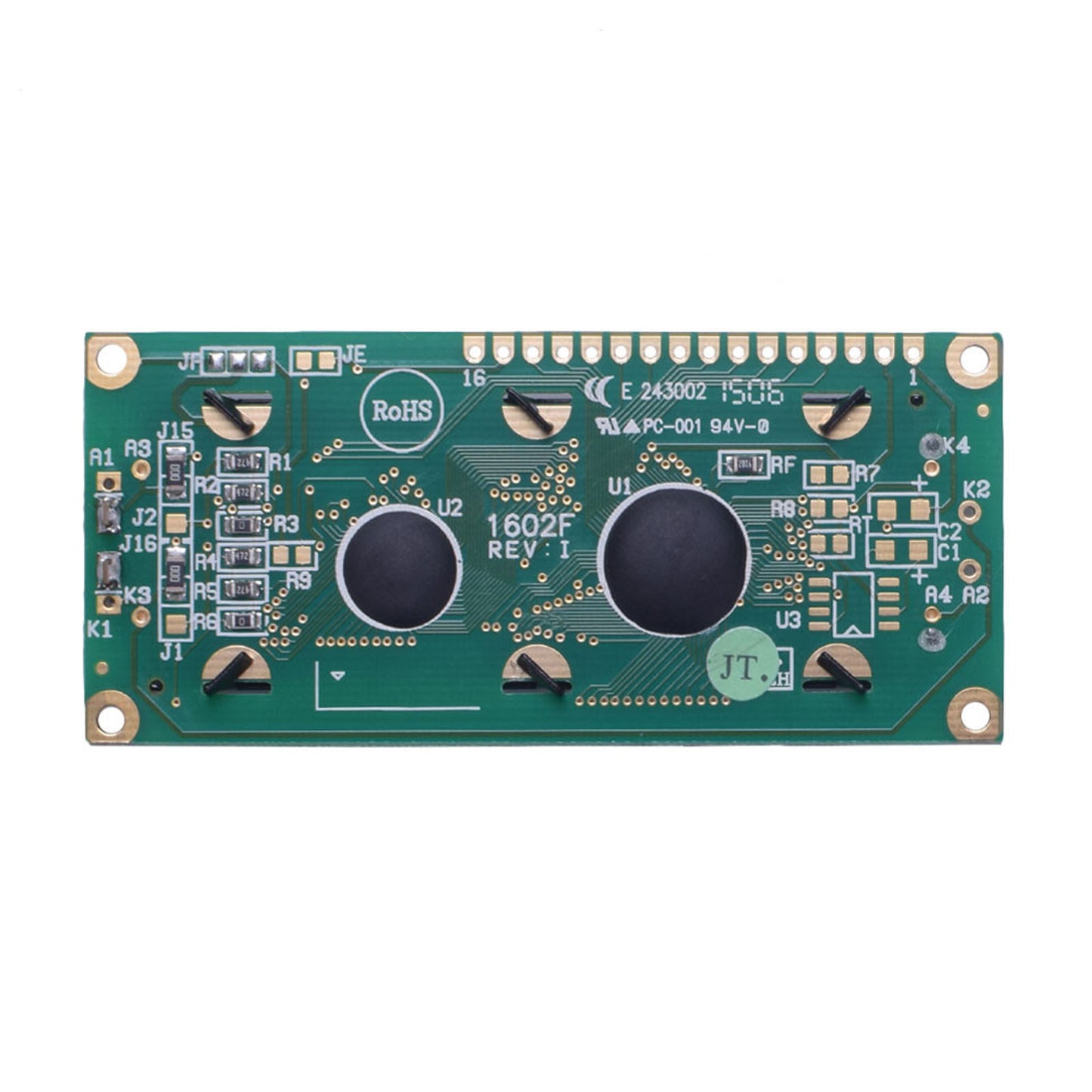

  • back of 16x2 character LCD module

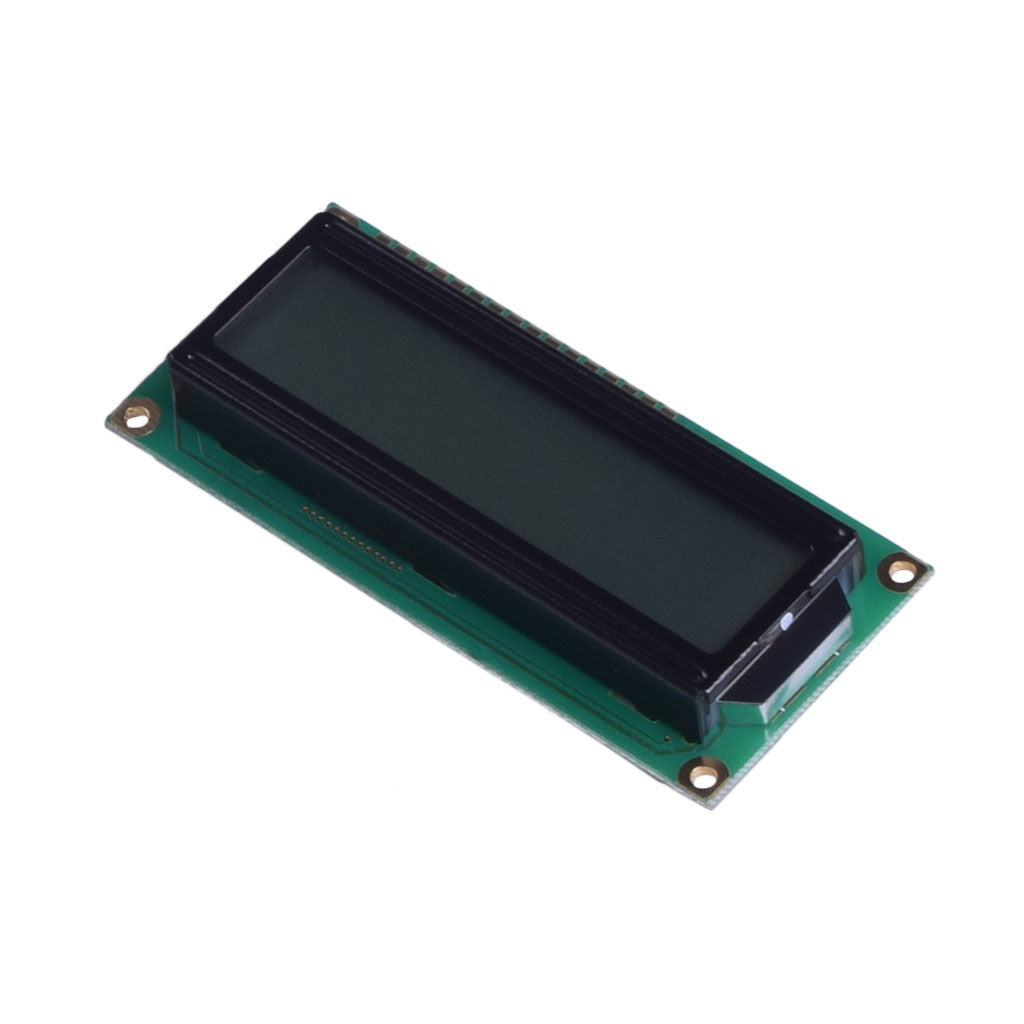

  • Top view of 16x2 character LCD module
1 / 1
DisplayModule

16x2 Character LCD FSTN Transflective Japanese/European Font - MCU, with Font

$12.90
Shipping calculated at checkout.
SKU: DM-LCD1602-429
16x2 character LCD with FSTN transflective technology, Japanese/European font, and MCU interface
$12.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Display Format : 16 characters x 2 lines
  • Display Mode : FSTN Positive, Transflective
  • View Direction : 6:00
  • Module Dimension : 80.0 x 36.0 x 13.5(MAX) mm
  • Power Supply : 5.0 V
  • Backlight : White LED
  • Interface : 6800 Series MPU Interface
  • Controller IC : ST7066U
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 34.2 g

Dimensions
