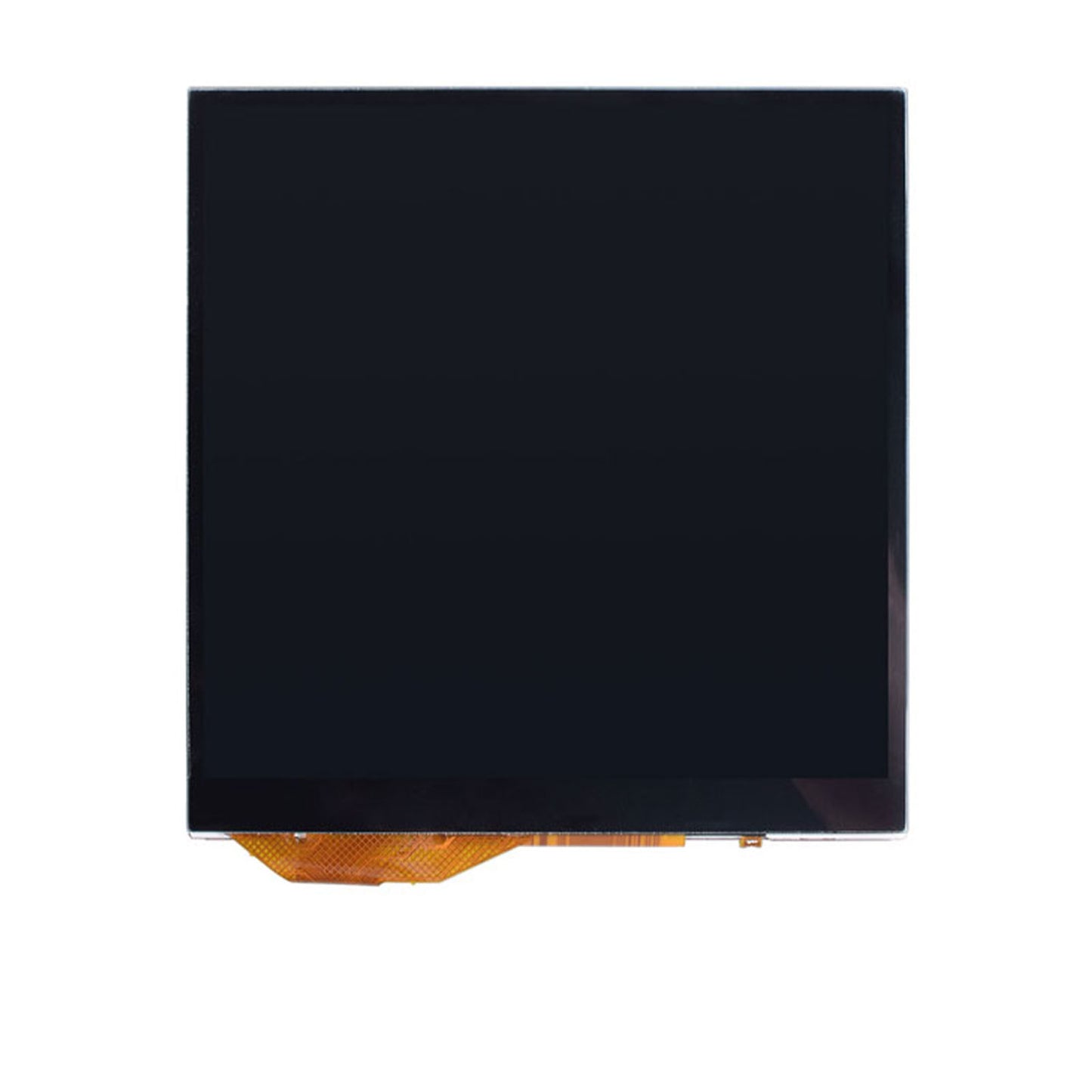

• 4.0-inch IPS high brightness display panel with 480x480 resolution, capacitive touch, using RGB interface

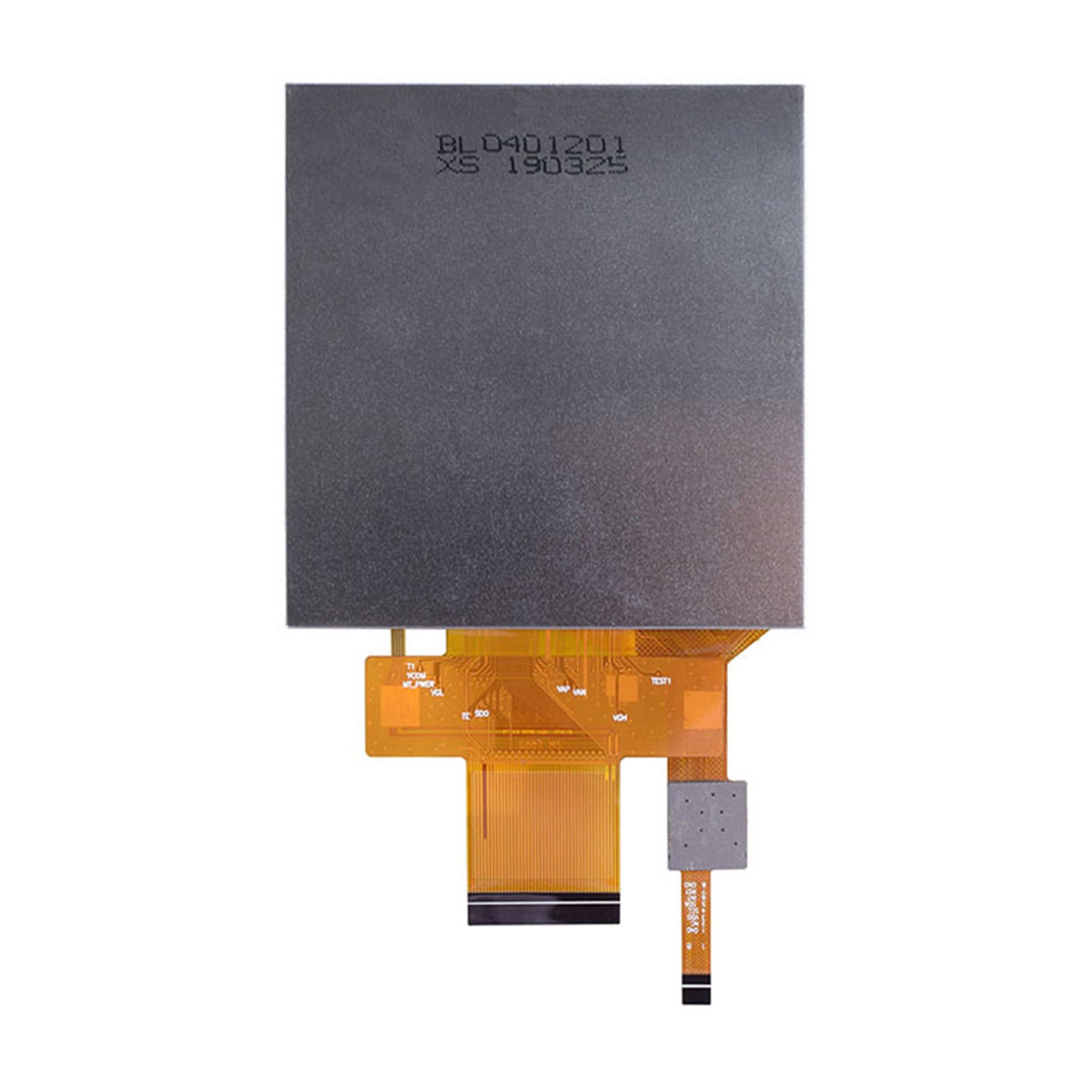

  • back of 4.0-inch IPS high brightness display panel with RGB interface

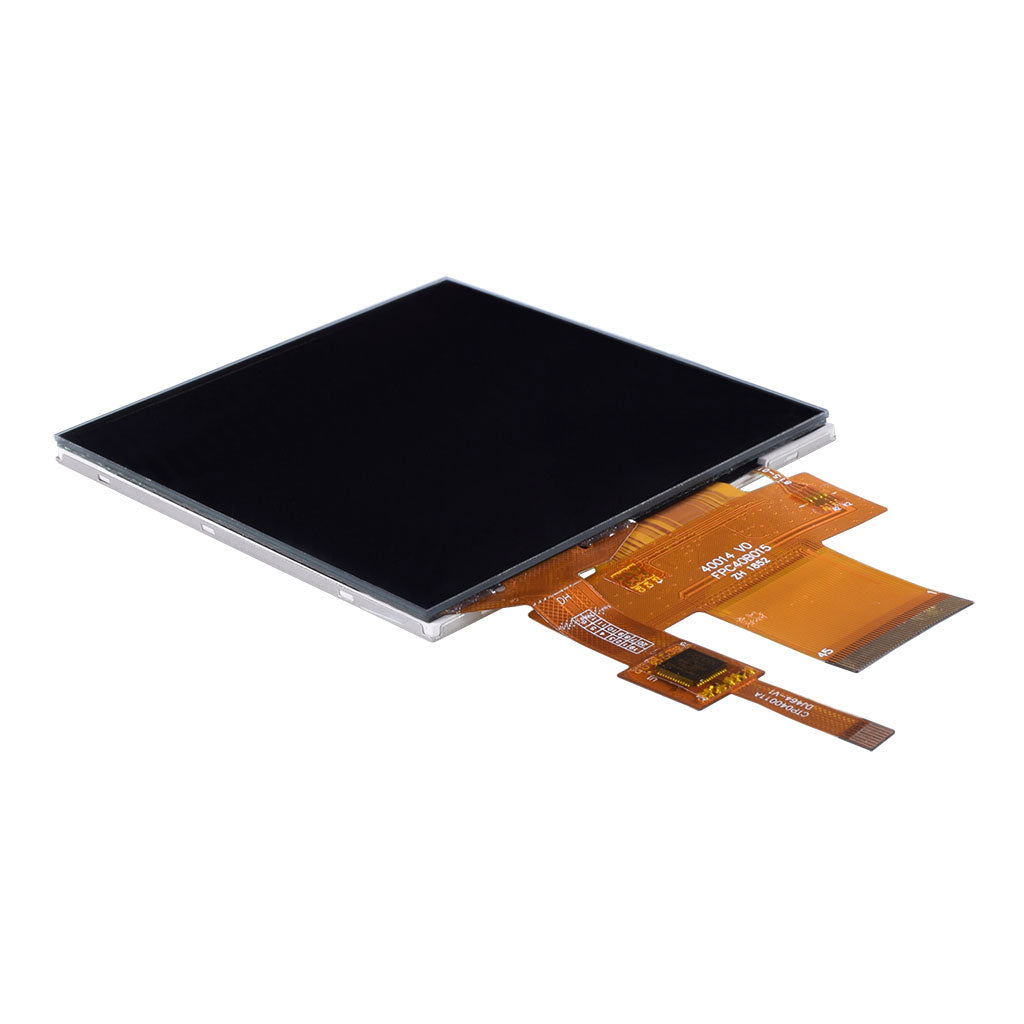

  • top view of 4.0-inch IPS high brightness display panel with RGB interface
1 / 1

4.0" 480x480 IPS High Brightness Capacitive - RGB

$59.00
Shipping calculated at checkout.
SKU: DM-TFT40-390
4.0-inch IPS high brightness display panel with 480x480 resolution, capacitive touch, using RGB interface
$59.00
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 4.0 inch
  • Resolution : 480(RGB)x480 pixel
  • View Direction : All
  • Touch Mode : Five points and Gestures
  • Module Dimension : 77x80x4.35 mm
  • Viewing Area : 71.86x70.18 mm
  • Supply Voltage : 3.3 V
  • Interface : 16/18/24 bit RGB
  • Luminance : 850 cd/m2
  • Drive IC : ST7701S GT911
  • Operation Temperature : -30℃~85℃
  • Storage Temperature : -40℃~90℃

Dimensions
