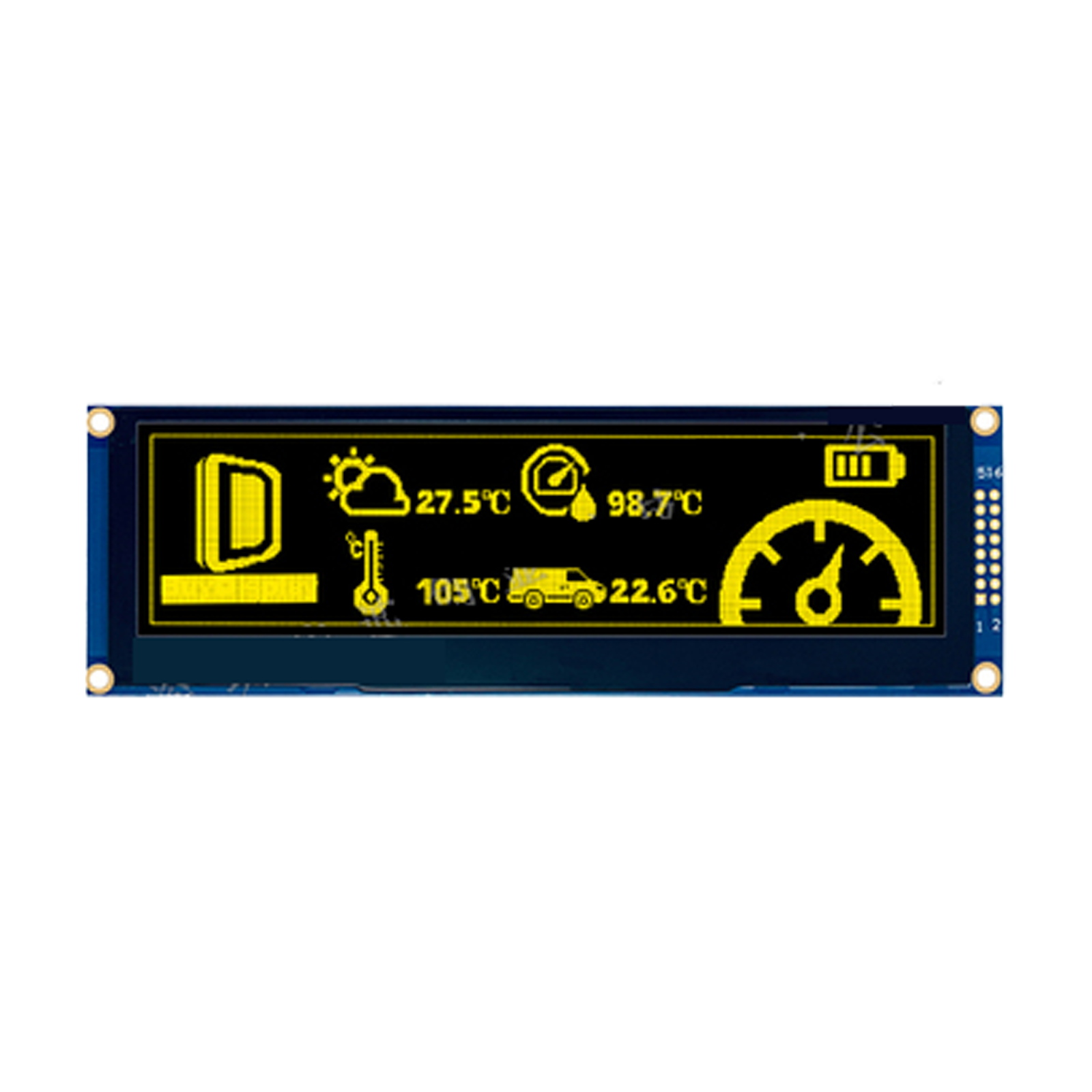

• 5.5-inch yellow OLED graphic display module with 256x64 resolution, connected via SPI

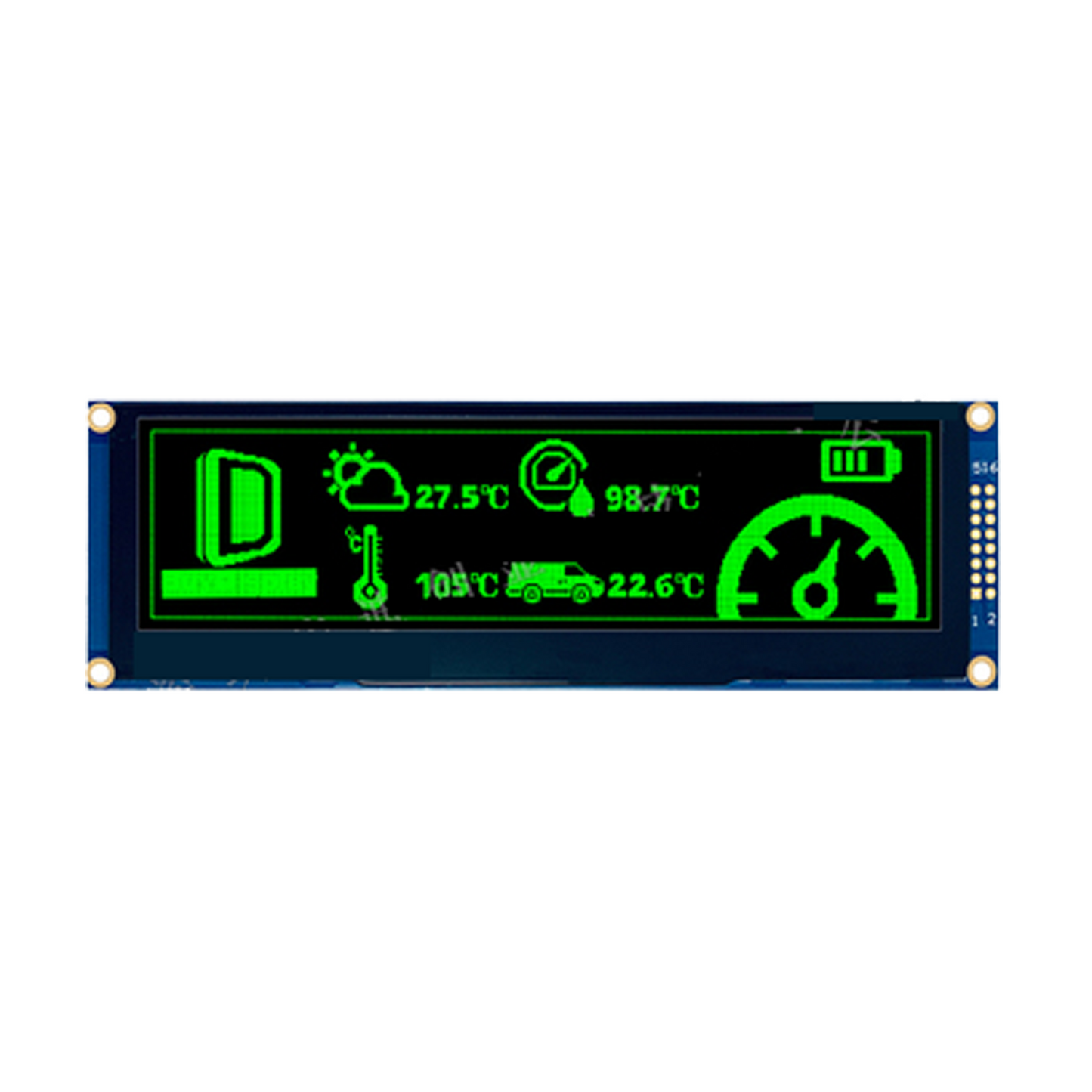

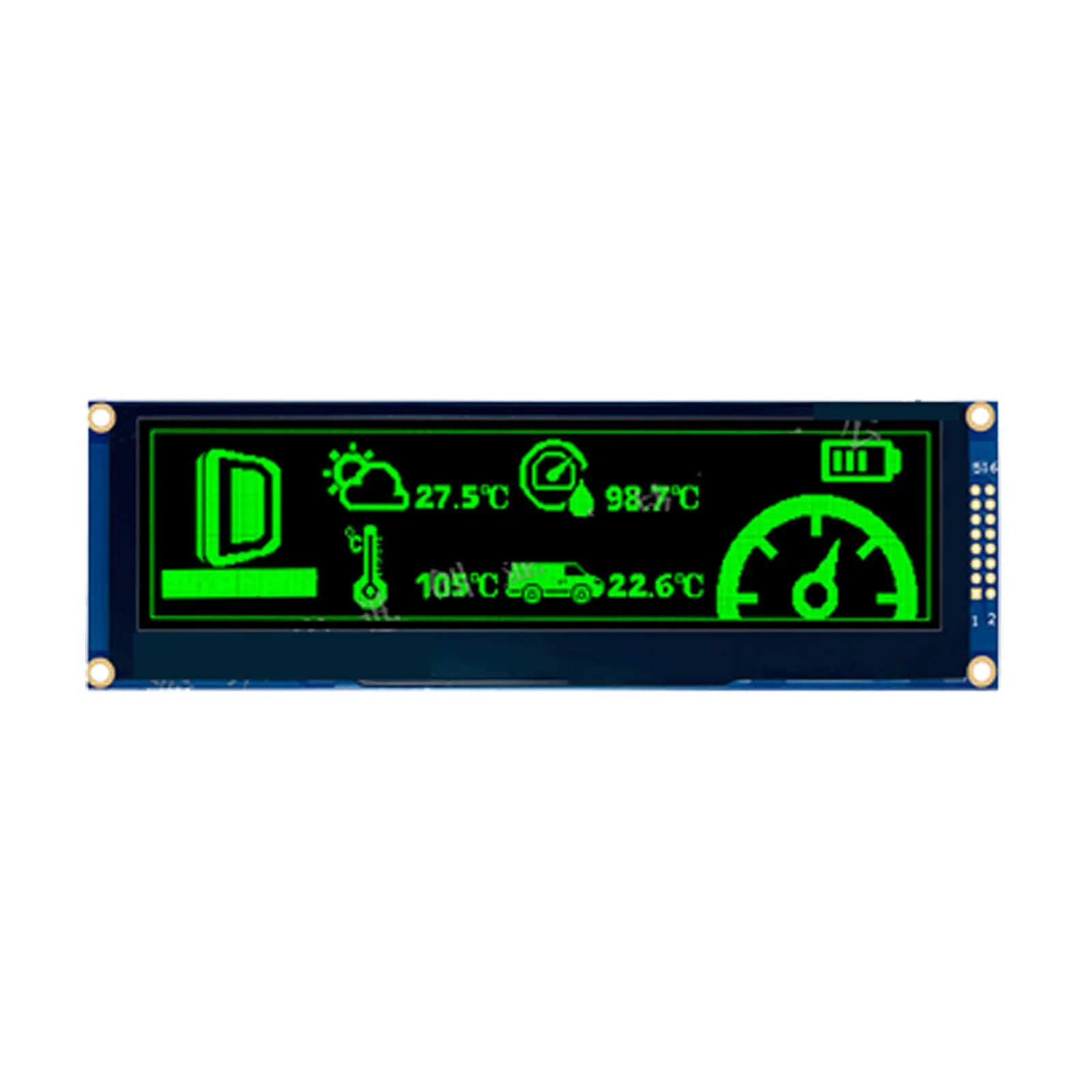

  • 5.5-inch green OLED graphic display module with 256x64 resolution, connected via SPI

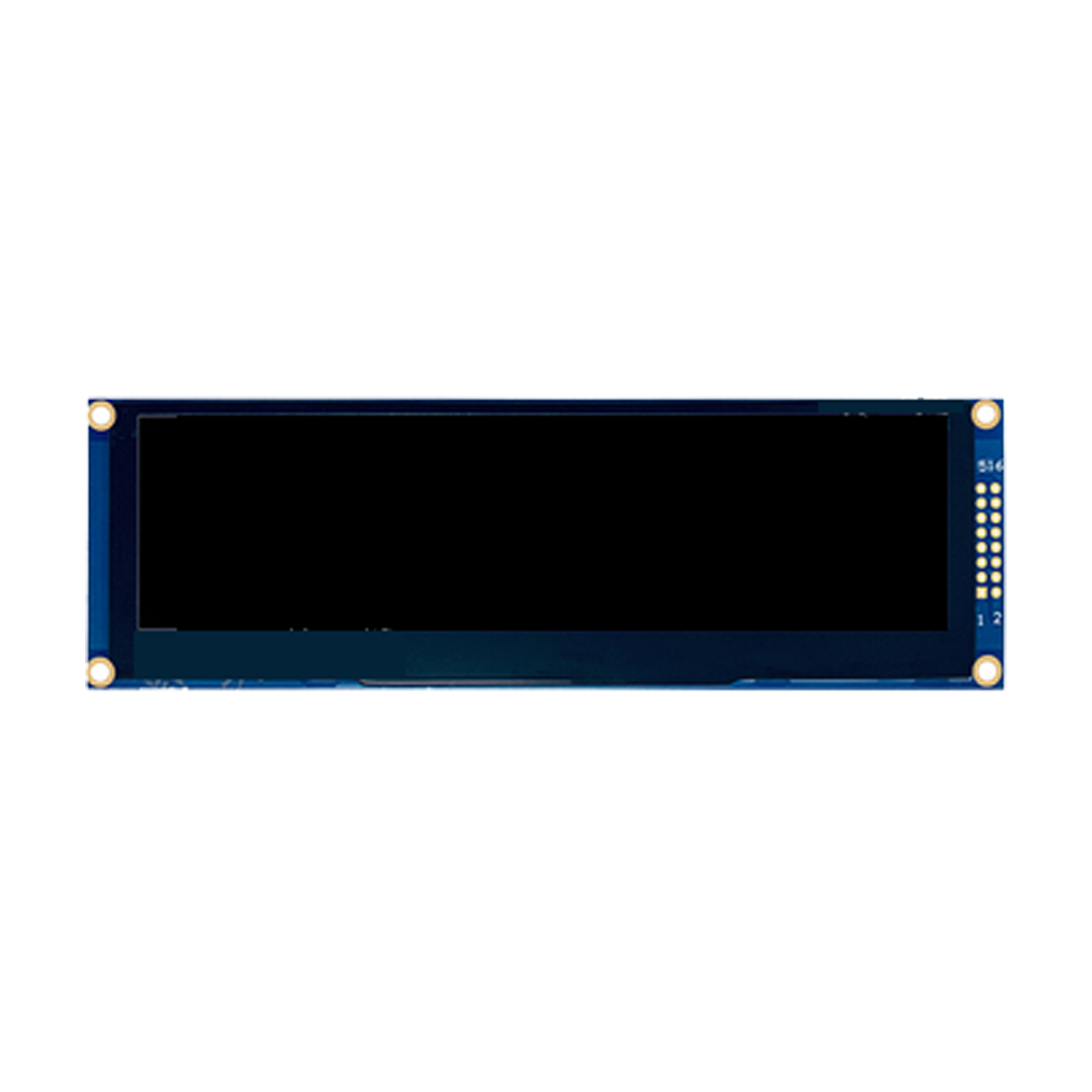

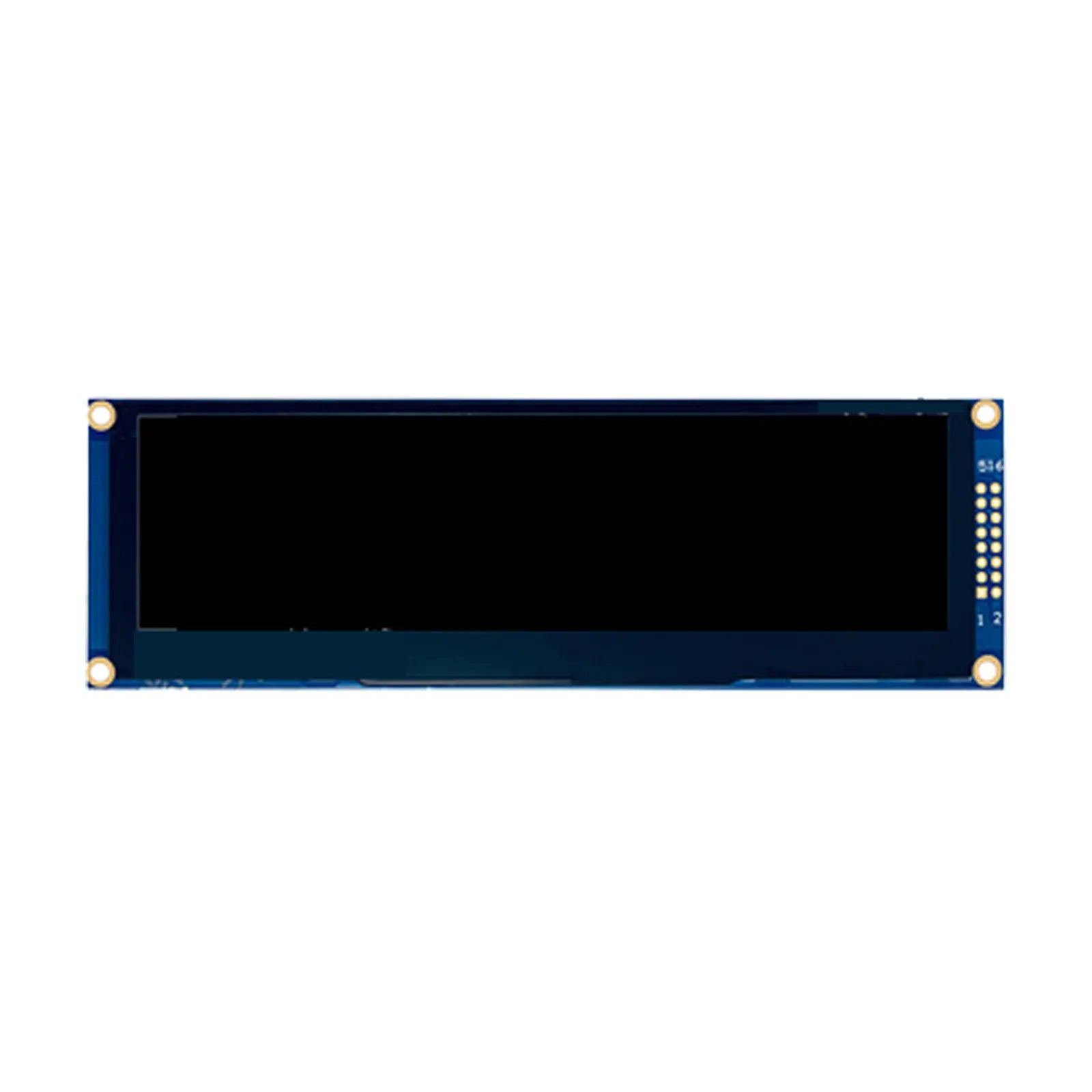

  • 5.5-inch OLED graphic display module with 256x64 resolution, connected via SPI

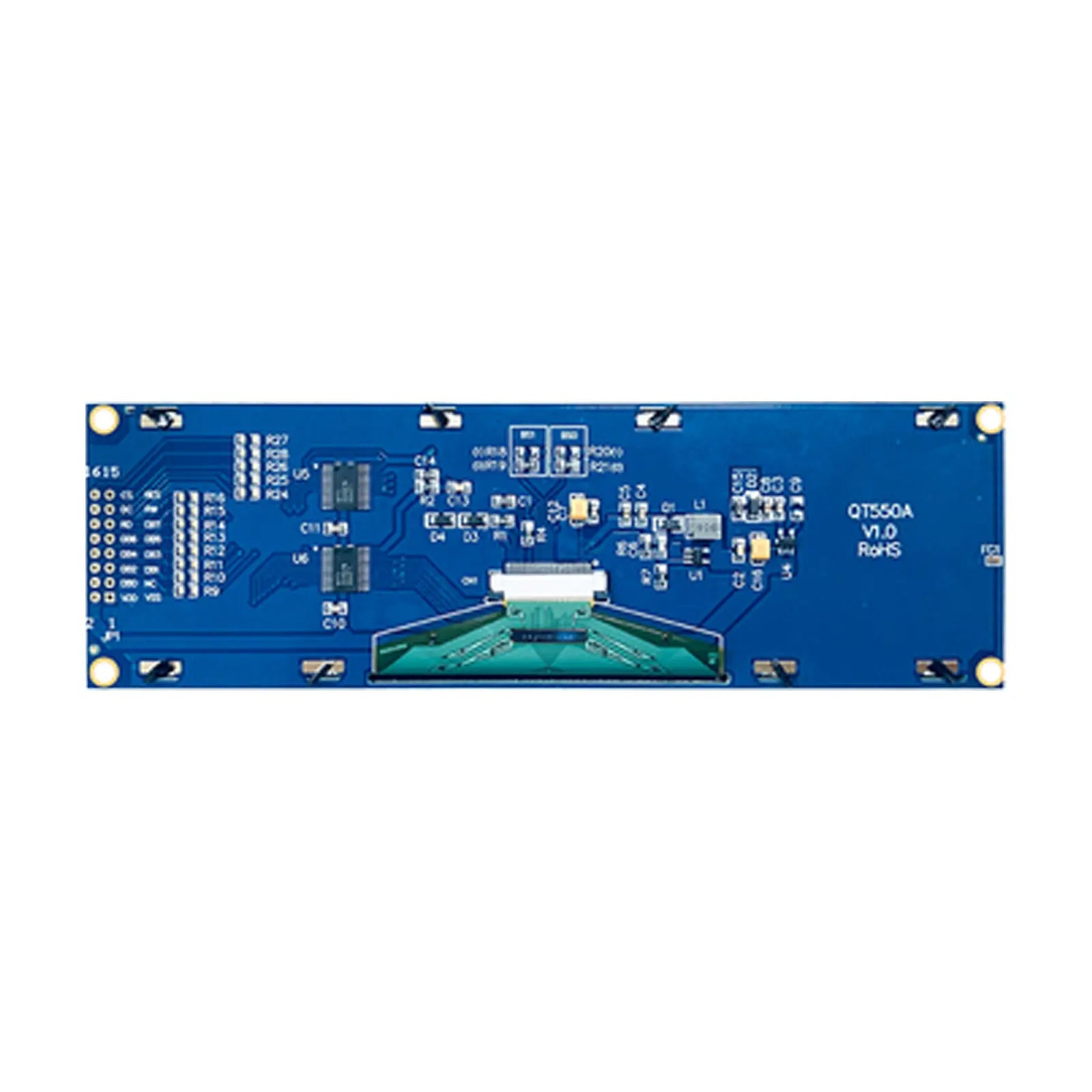

  • back of 5.5-inch OLED graphic display module with 256x64 resolution, connected via SPI
1 / 1

5.5" OLED Graphic Display 256x64 - SPI

$109.00
Shipping calculated at checkout.
SKU: DM-OLED55-672
Type: Panel
5.5-inch yellow OLED graphic display module with 256x64 resolution, connected via SPI
$109.00
Panel

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Resolution : 5.5 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Yellow/Green
  • Module Dimension : 159.33 x 49.8 x 6.3 mm
  • Viewing Area : 137.65 x 35.89 mm
  • Power Supply : 2.8-3.3 V
  • Interface : 8-BIT 68XX/80XX Parallel,4-wire SPI,3-wire SPI
  • Controller IC : SSD1322
  • Operation Temperature : -40℃~85℃
  • Storage Temperature : -40℃~85℃

Dimensions

Resources
  • 5.5-inch yellow OLED graphic display module with 256x64 resolution, connected via SPI
  • 5.5-inch green OLED graphic display module with 256x64 resolution, connected via SPI
  • 5.5-inch OLED graphic display module with 256x64 resolution, connected via SPI
  • back of 5.5-inch OLED graphic display module with 256x64 resolution, connected via SPI
1 / 1
