2.89" Sharp 1440x1440 High Resolution Display for VR - MIPI

$59.00
Shipping calculated at checkout.
SKU: DM-TFT29-392
Type: single
2.89 inch Sharp Display Panel with a high resolution of 1440x1440, designed specifically for VR applications, utilizing MIPI interface
$59.00
single

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

Parameter Specification
Display Method  Active matrix TFT
Resolution 1440x1440 RGB
Number of dots 2.07M
Pixel Pitch 12µm × 36µm
Luminance 300cd/m² typical
Contrast Ratio 1100:1
Display Colors  16.7M 24bit
Outline Dimension 54.24mm × 59.02mm × 1.365mm
Display Area 51.84mm x 51.84mm / 2.89" diagonal
Weight 7g
Interface 4 lane MIPI
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃

Dimensions

2.89" Sharp 1440x1440 High Resolution Display for VR

Resources

Datesheet : DM-TFT29-392
  • 2.89 inch Sharp Display Panel with a high resolution of 1440x1440, designed specifically for VR applications, utilizing MIPI interface

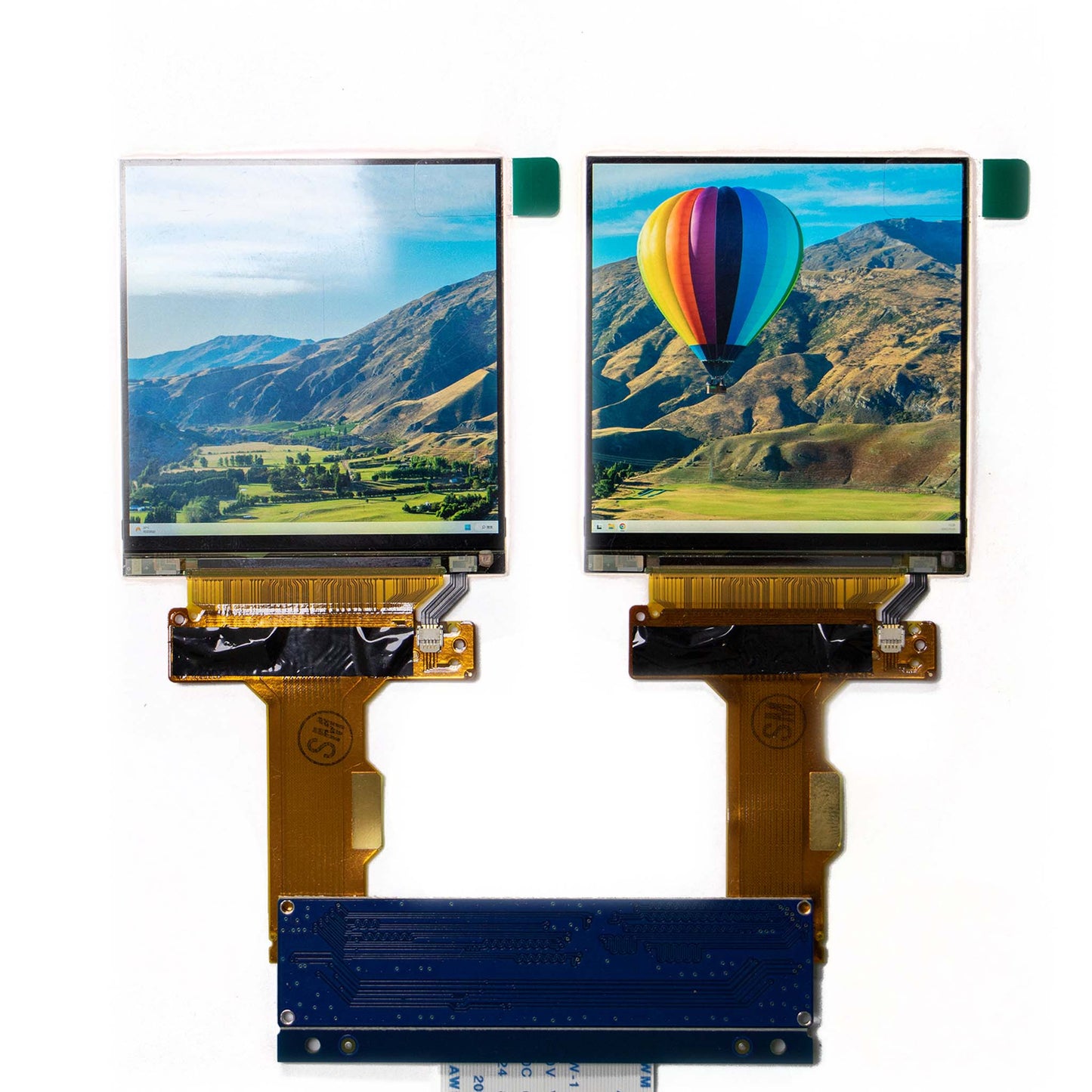

  • Two-piece set of 2.89-inch high-resolution Sharp display panels for VR
  • 2.89-inch high-resolution Sharp display panel for VR, showing an image of a hot air balloon

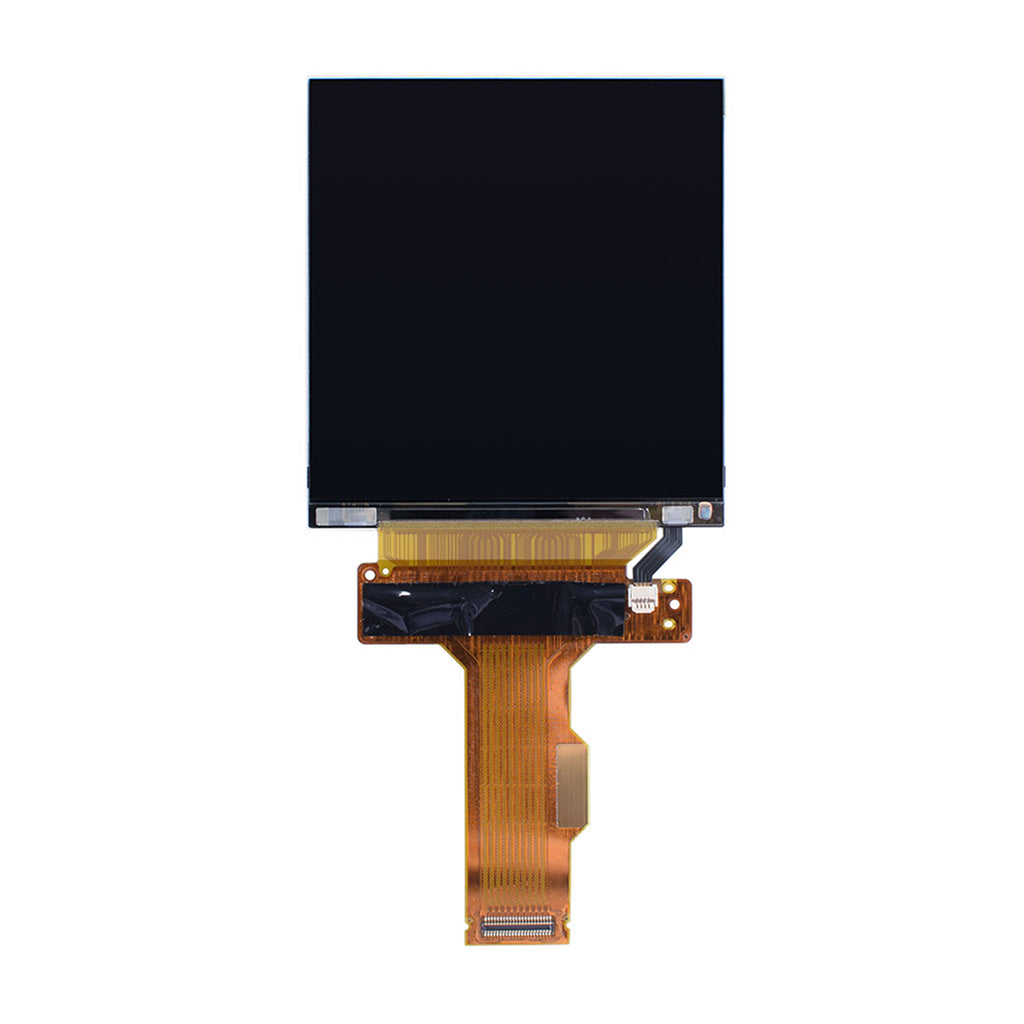

  • One 2.89-inch high-resolution Sharp display panel for VR
  • Instructional video for the 2.89-inch high-resolution Sharp display panel
