Board Specifications

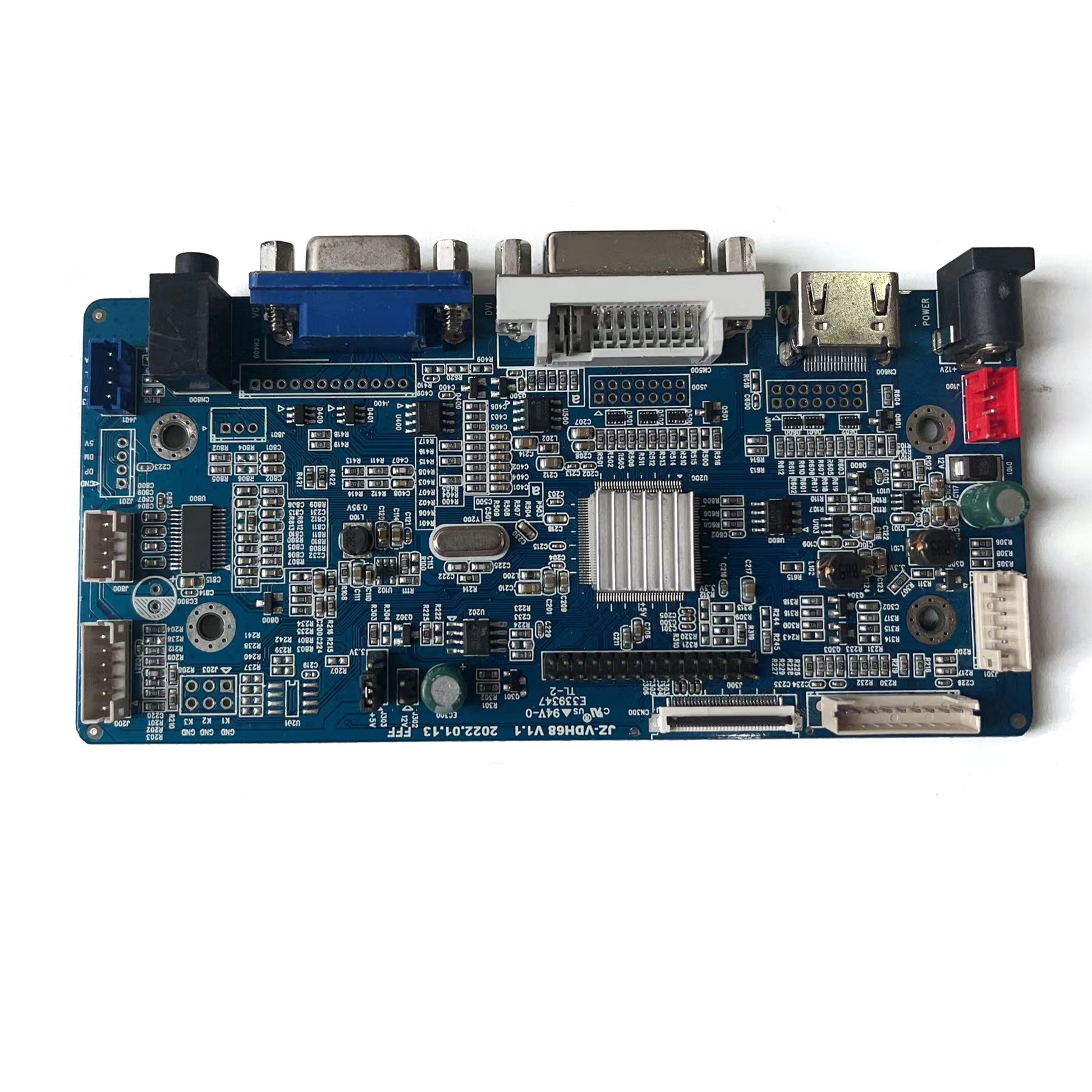

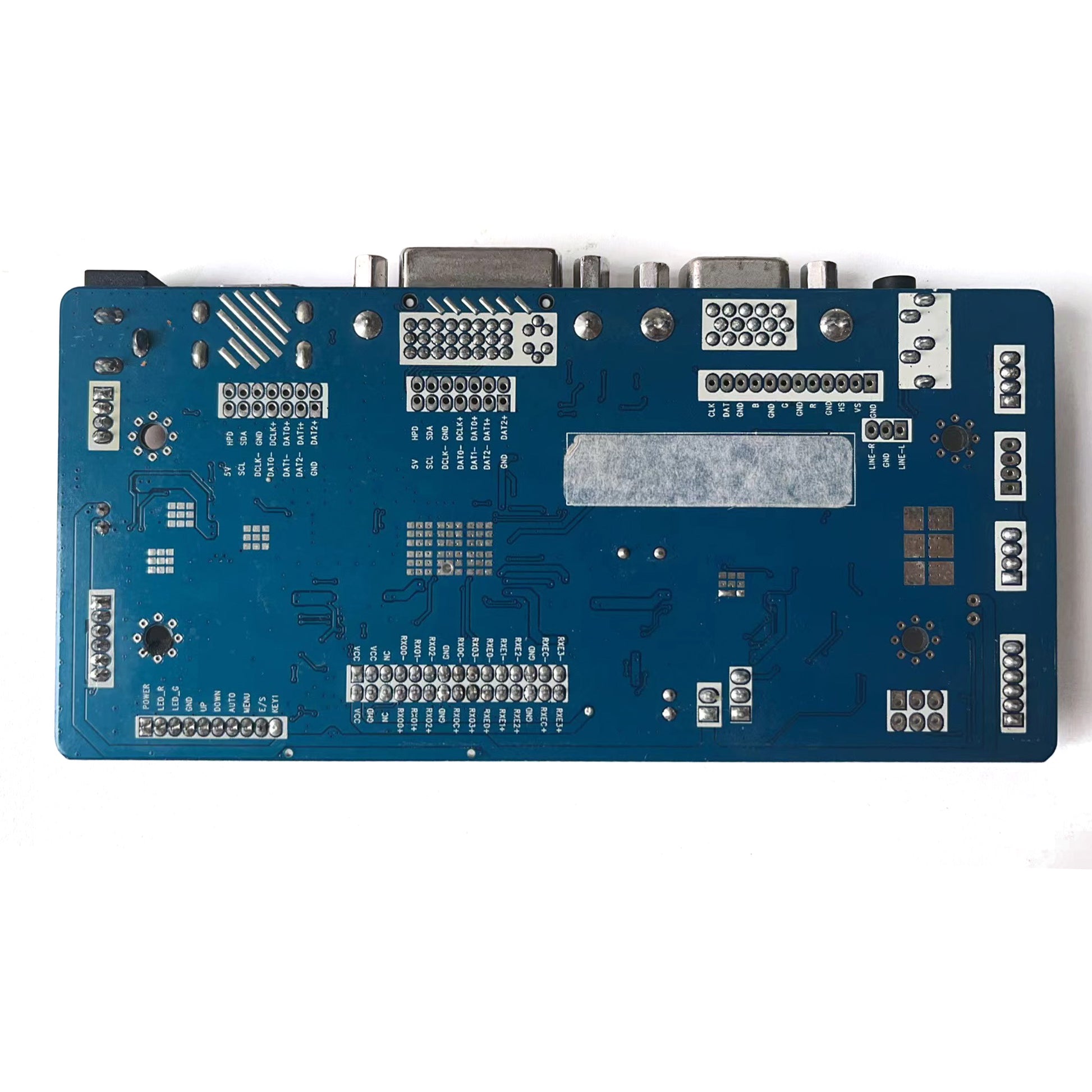

This adapter consists of three parts: one driver board, one LVDS cable, and one backlight cable. We need to reprogram the board according to your screen.
Please provide the screen datasheet first and confirm with us whether it can be customized. After confirmation, we will open the procurement channel.
- Adapter Function: HDMI to LVDS Driver
- Supply Voltage: 3.3 v
- Input Interface: HDMI,VGA,DVI
- Output Interface: 20pin LVDS
- Outline L x W x H: 139x66 mm
- Driver IC: -
- Maximum Resolution: 1920x1200
- Display model : -
- OS: Windows, RaspberrPi, and Mac (if you want to use the Mac OS, please contact us)
- Operation Temperature: -20 ~ +65℃
Dimensions
Resources
- Datasheet : DM-ADTTR- 018
- Config code : -
- Video: -
- Adapter custom
Applications
This Adapter can work with:
- DM-TFT121-410 12.1" 1024x768 TFT LCD Display Panel - LVDS
- DM-TFT104-411 10.4" 1024x768 TFT LCD Display Panel - LVDS
- G190EG01 V1 19" 1280×1024 LVDS
- G104XVN01.0 10.4" 1024×768 LVDS
- G121SN01 V.4 12.1" 800×600 LVDS (1 ch, 6/8-bit) , 20 pins Connector
- G190EG01 V1 19" 1280×1024 LVDS (2 ch, 8-bit) , 30 pins Connector
- G121ICE-L01 12.1" 1280×800 LVDS (1 ch, 6/8-bit) , 30 pins Connector
- G121I1-L01 12.1" 1280×800 LVDS (1 ch, 6/8-bit) , 30 pins Connector
- LC550EGG-FLM1 55" 3840×2160 EPI , 120 pins Connector
- HV550FHB-N20 54.6" 1920 × 1080 LVDS
- G104STN01.0 10.4" 800 ×600 TFT-LCD, LCM - LVDS
