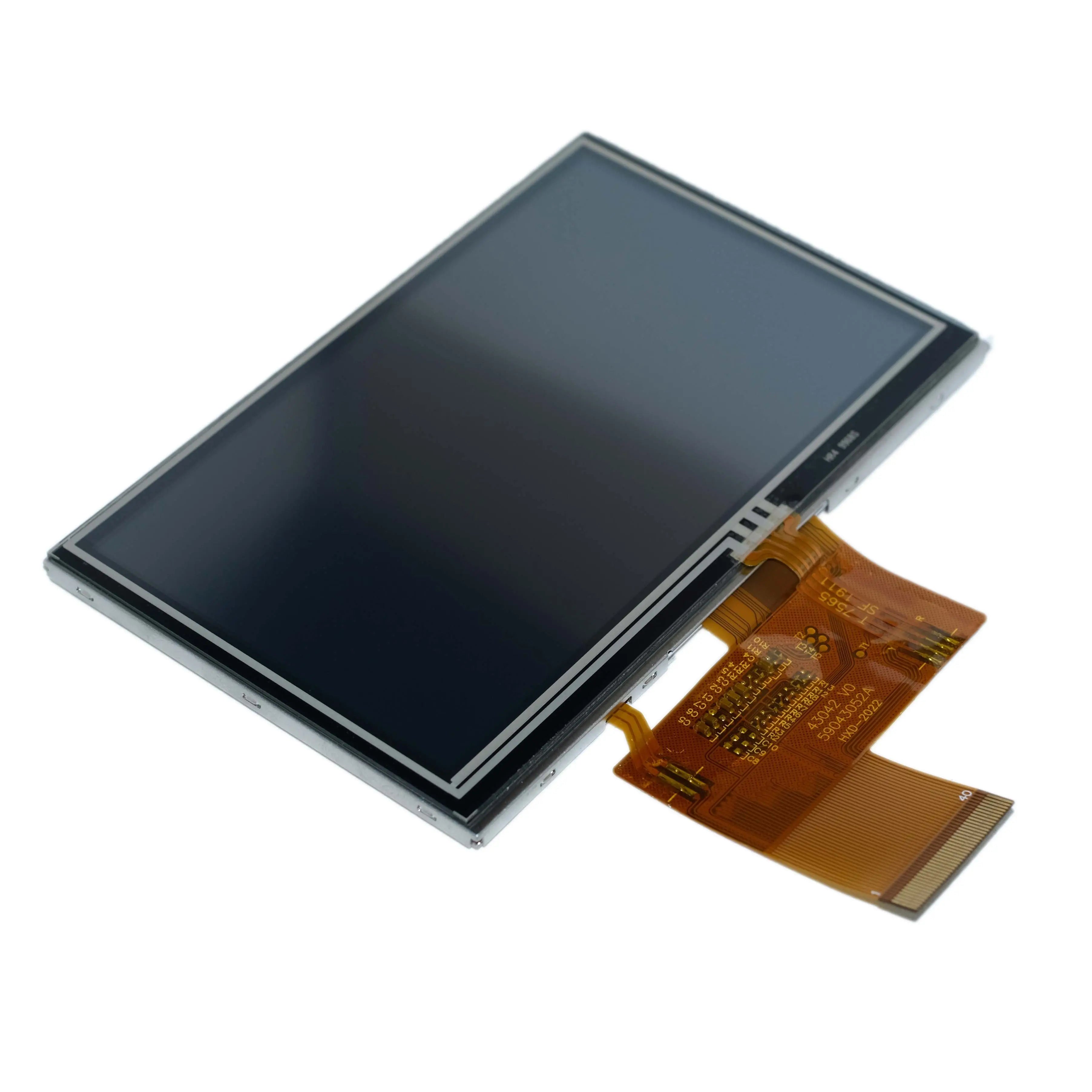

• 4.3-inch IPS display panel with 480x272 resolution, high brightness, resistive touch capability, and RGB interface

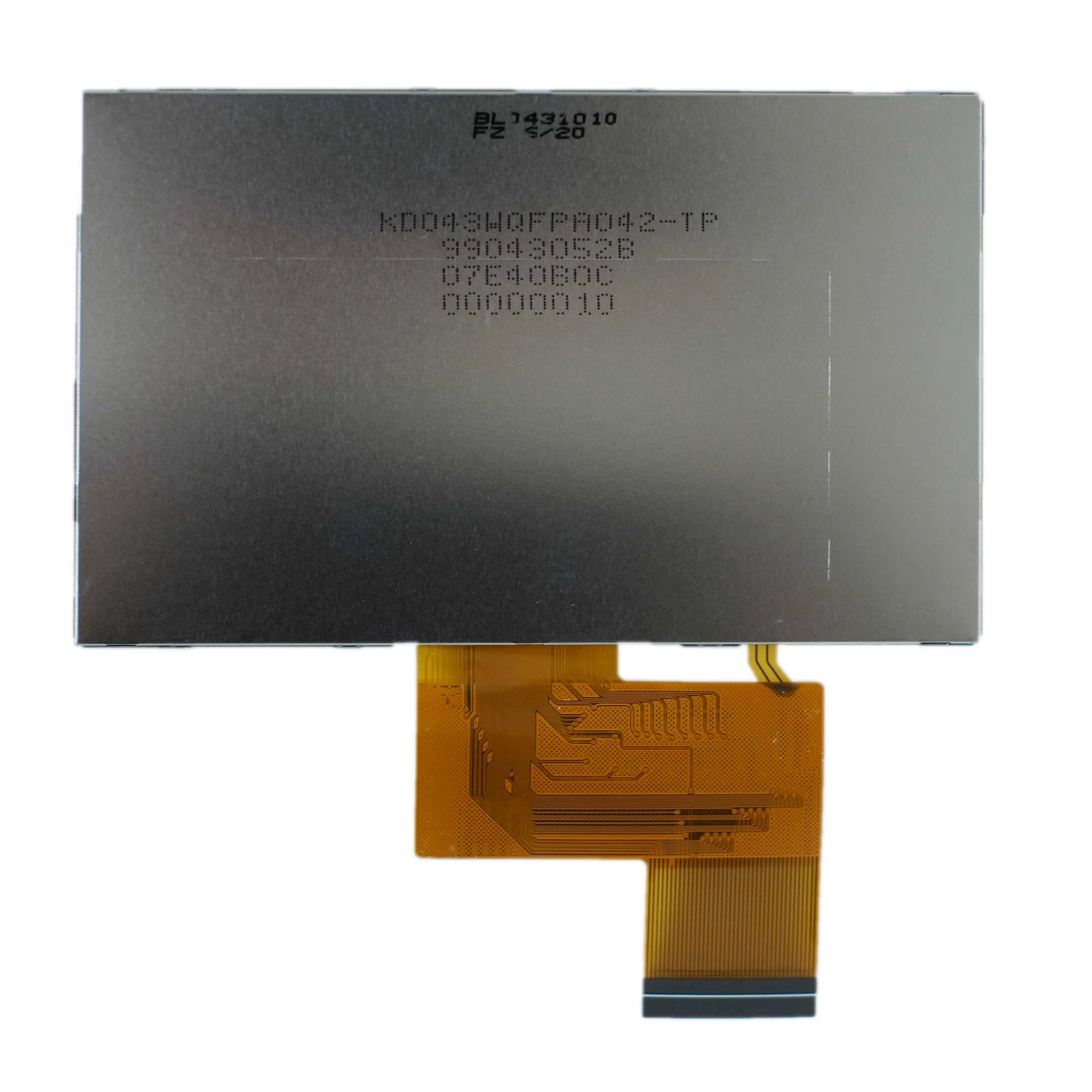

  • back of 4.3-inch IPS display panel with 480x272 resolution
  • top view of 4.3-inch IPS display panel with 480x272 resolution
1 / 1

4.3" 480x272 IPS High Brightness Resistive - RGB

$49.90
Shipping calculated at checkout.
SKU: DM-TFT43-408
4.3-inch IPS display panel with 480x272 resolution, high brightness, resistive touch capability, and RGB interface
$49.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 4.3 inch
  • Resolution : 480x272 pixel
  • View Direction : All
  • Touch Mode : Resistive
  • Module Dimension : 105x67x4 mm
  • Viewing Area : 95x54 mm
  • Supply Voltage : 3.3 V
  • Interface : 8/24bit RGB
  • Luminance : 820 cd/m2
  • Drive IC : SC7283
  • Operation Temperature : -30℃~85℃
  • Storage Temperature : -30℃~85℃

Dimensions


Resources
  • 4.3-inch IPS display panel with 480x272 resolution, high brightness, resistive touch capability, and RGB interface
  • back of 4.3-inch IPS display panel with 480x272 resolution
  • top view of 4.3-inch IPS display panel with 480x272 resolution
1 / 1
