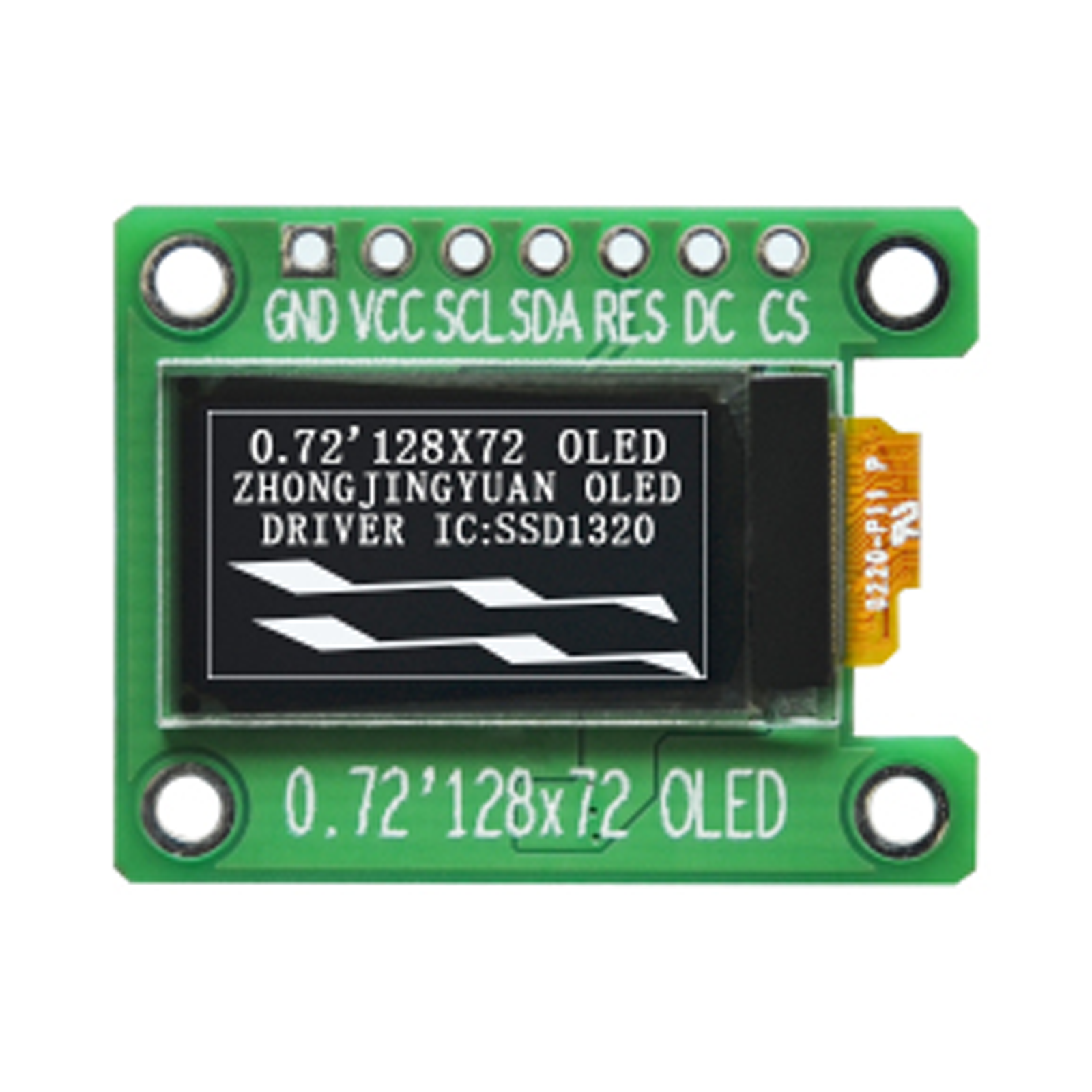

• 0.72-inch OLED Graphic Display Module with 128x72 resolution and All View feature

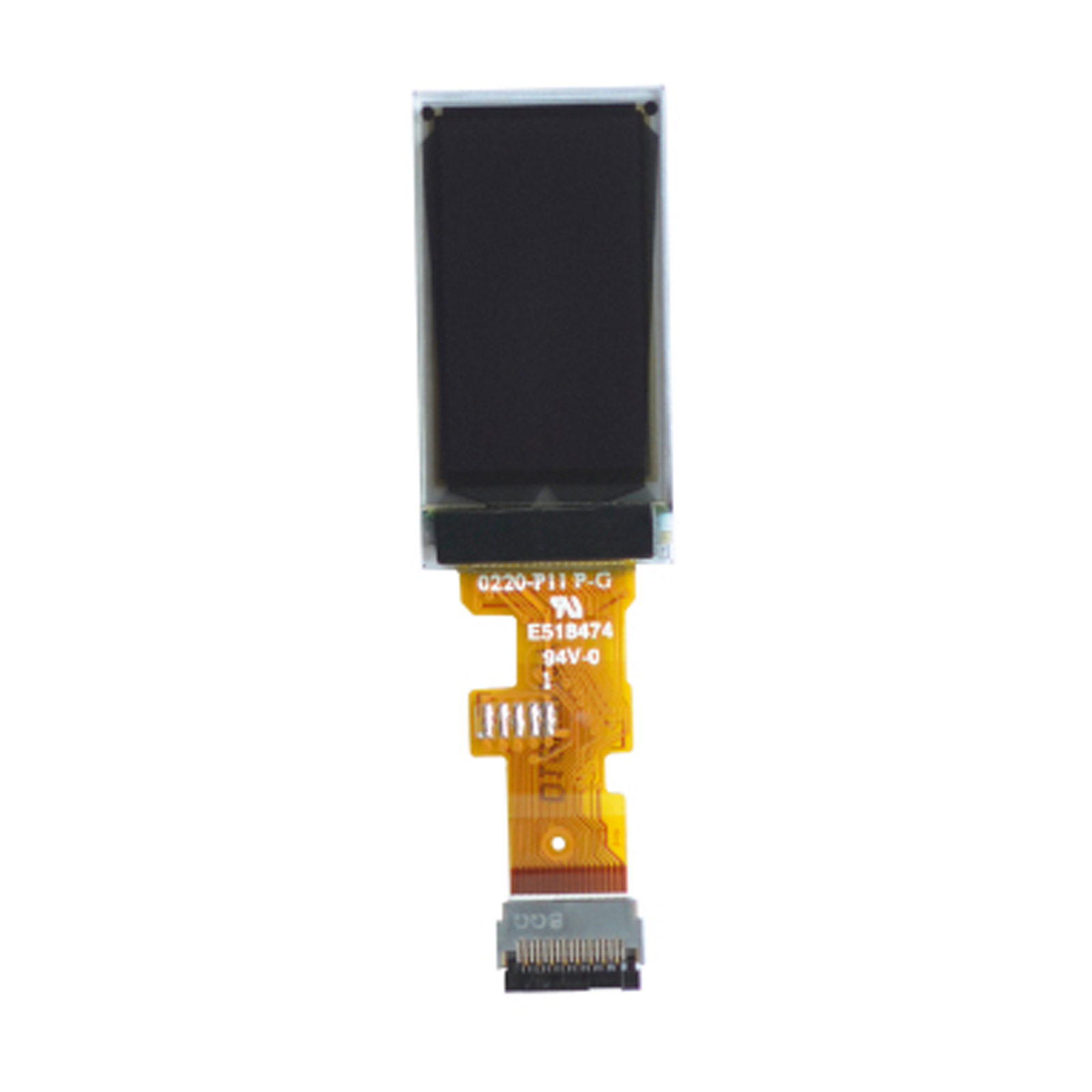

  • 0.72-inch OLED Graphic Display Panel

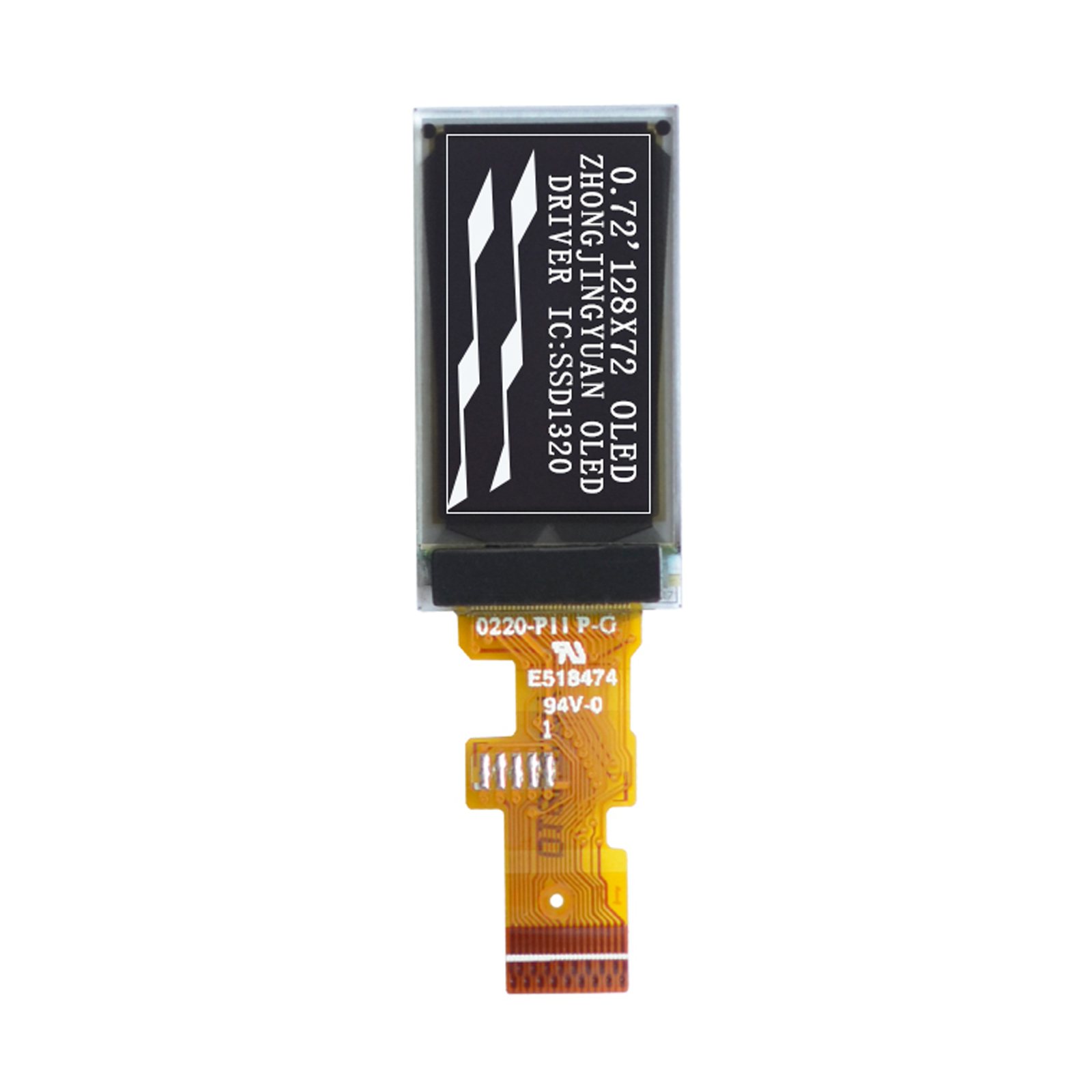

  • Front View of 0.72" OLED Graphics Display Panel

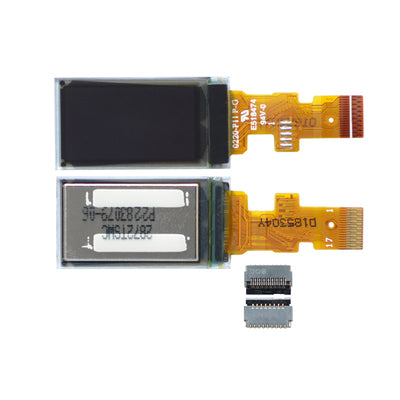

  • Front and back sides of a 0.72-inch OLED graphic display panel
1 / 1

0.72" OLED Graphic Display 128x72 All View - SPI

$4.90
Shipping calculated at checkout.
SKU: DM-OLED072-689
Type: Module
0.72-inch OLED Graphic Display Module with 128x72 resolution and All View feature
$4.90
Module

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Resolution : 128x72 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome(White)
  • Module Dimension : 28x22x4.2 mm
  • Viewing Area : 9x16 mm
  • Power Supply : 3.3 V
  • Interface : SPI
  • Controller IC : SSD1320
  • Operation Temperature : -40℃~70℃
  • Storage Temperature : -40℃~80℃

Dimension


Resources

Driver IC : SSD1320
