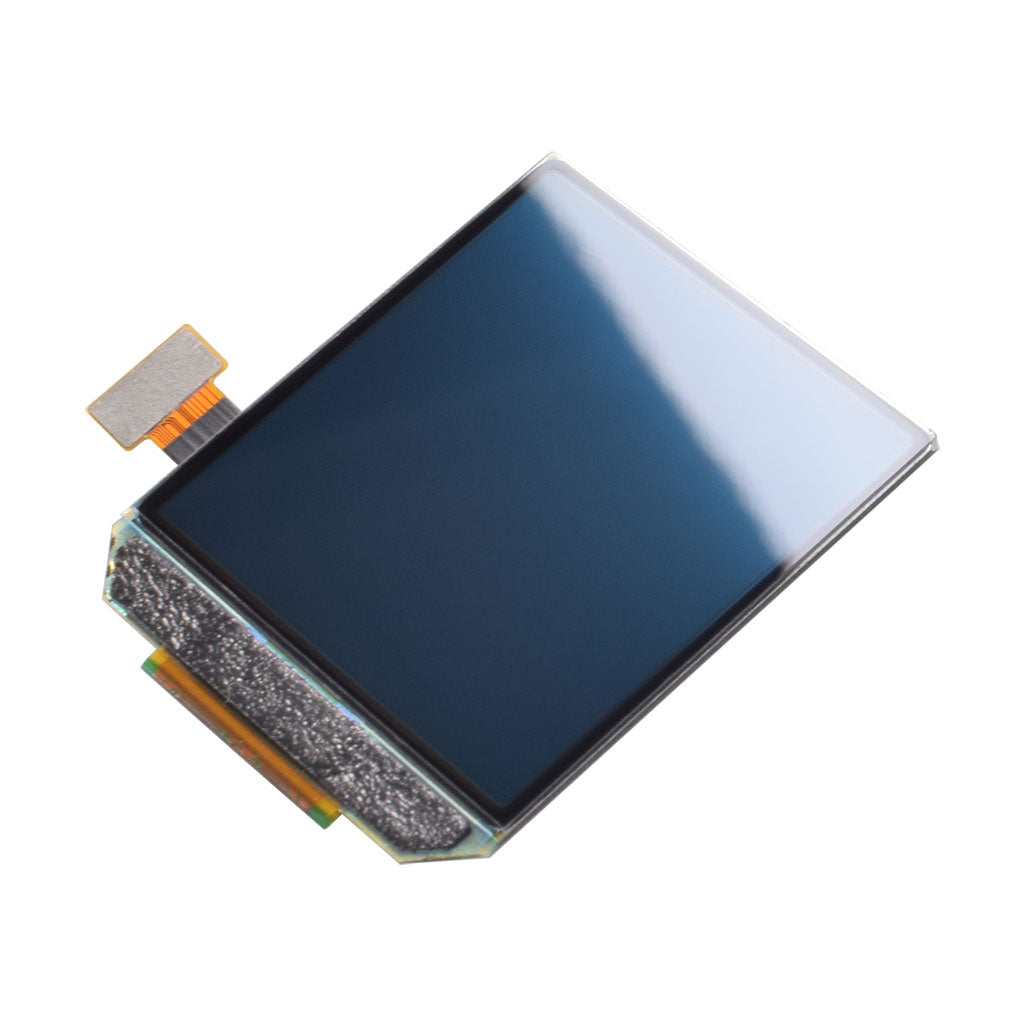

• 1.45-inch AMOLED Display Panel, 280x280 resolution, full color, MIPI interface

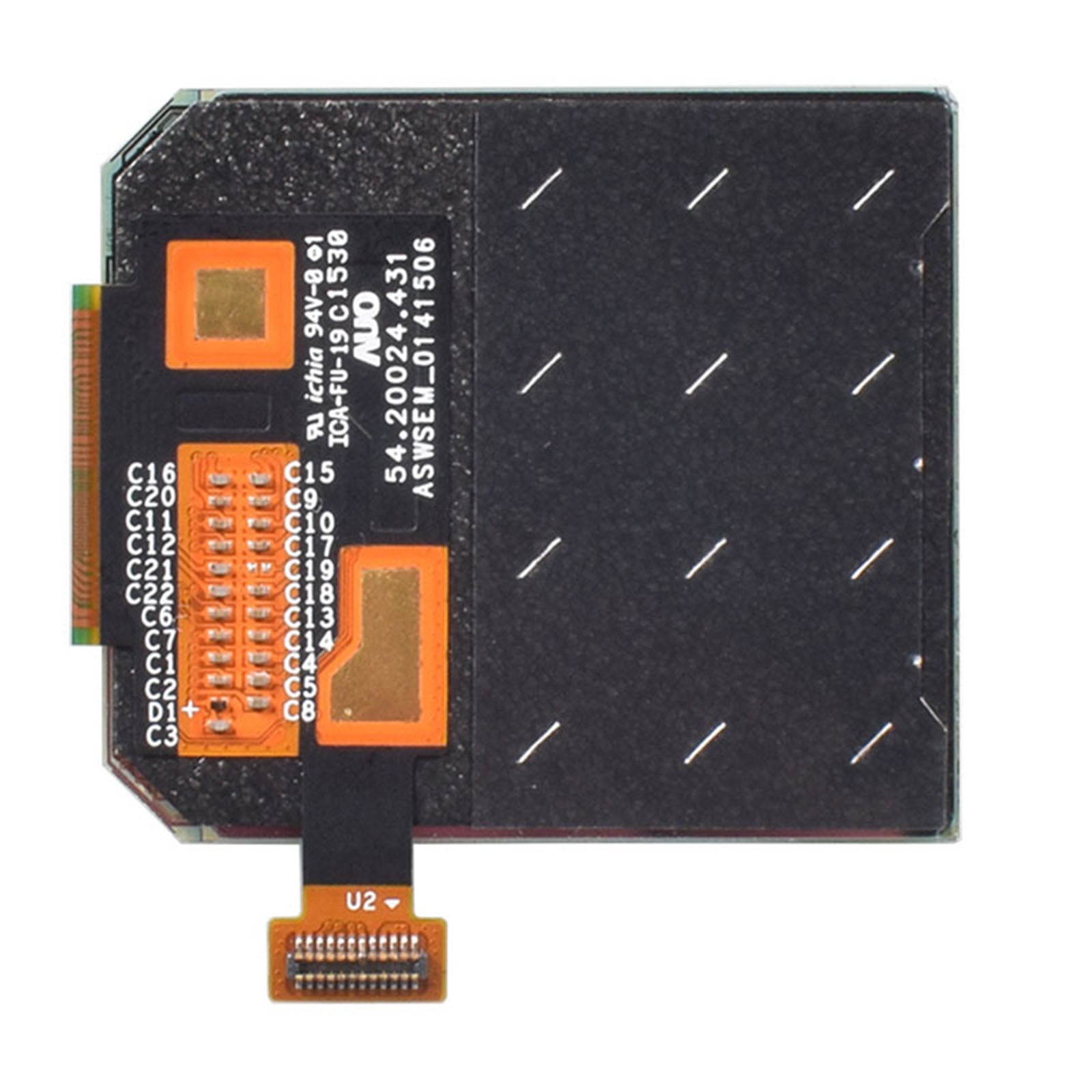

  • Back of 1.45-inch AMOLED Display Panel

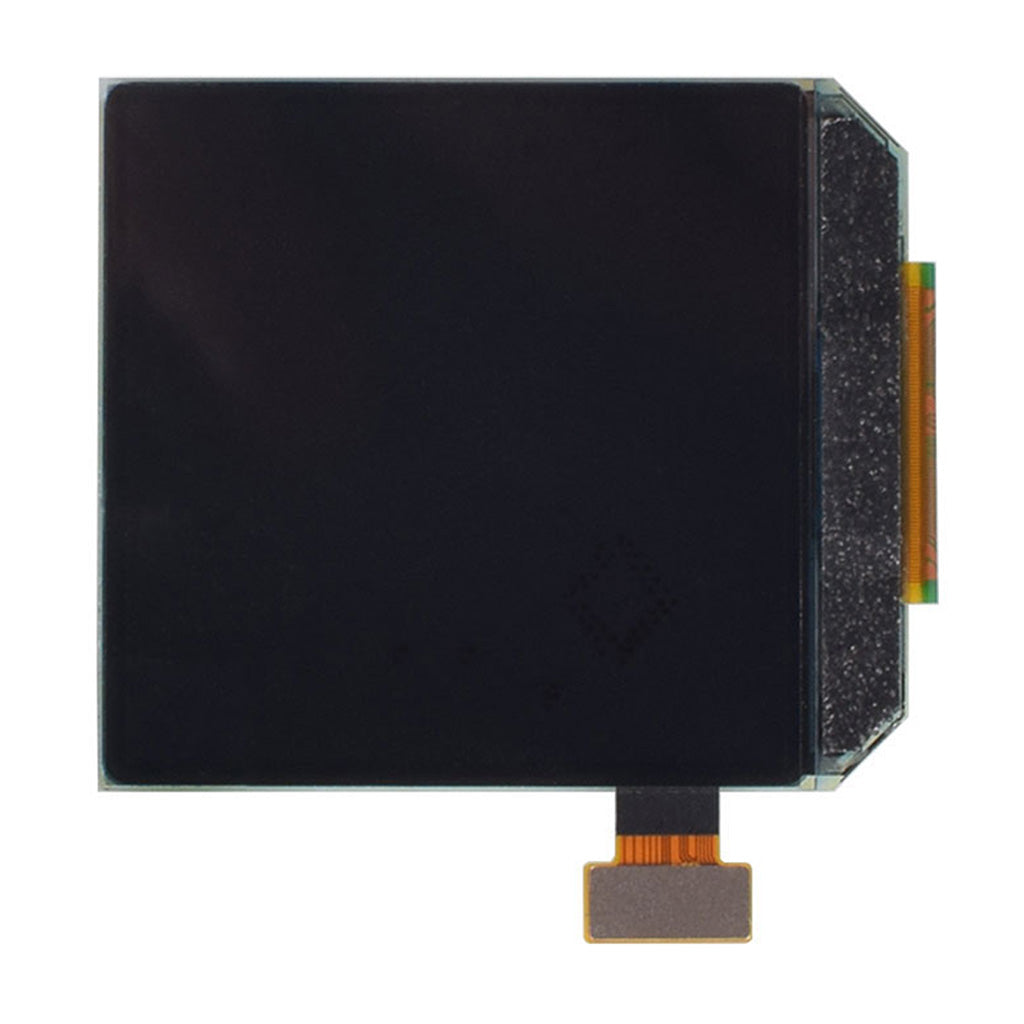

  • Top View of 1.45-inch AMOLED Display Panel
1 / 1

1.45" AMOLED Display 280x280 Full Color - MIPI

$29.90
Shipping calculated at checkout.
SKU: DM-OLEDC145-649
1.45-inch AMOLED Display Panel, 280x280 resolution, full color, MIPI interface
$29.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 1.45 inch
  • Resolution : 280RGBx280 pixel
  • Display Color : 16.7M(Maximum)
  • Touch Mode : None
  • Module/Panel Dimension : 28.6x2.6x0.7 mm
  • Viewing Area : 26x26 mm
  • Supply Voltage : 2.8 V
  • Luminance : 300 cd/m2
  • Interface : MIPI
  • Controller IC : Raydium RM69080
  • Operation Temperature : -
  • Storage Temperature : -

Dimensions



Resources
  • 1.45-inch AMOLED Display Panel, 280x280 resolution, full color, MIPI interface
  • Back of 1.45-inch AMOLED Display Panel
  • Top View of 1.45-inch AMOLED Display Panel
