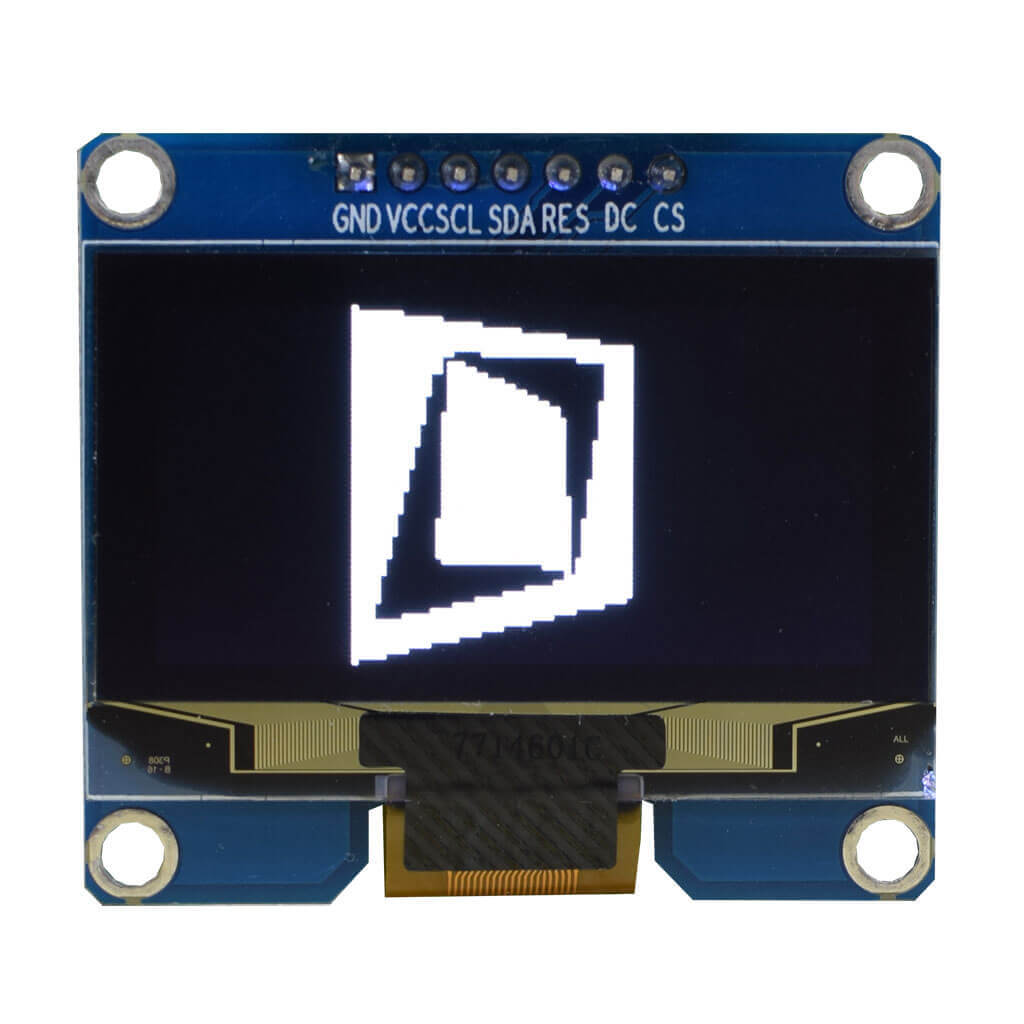

• 1.54-inch OLED graphic display screen showing the 'DisplayModule' logo

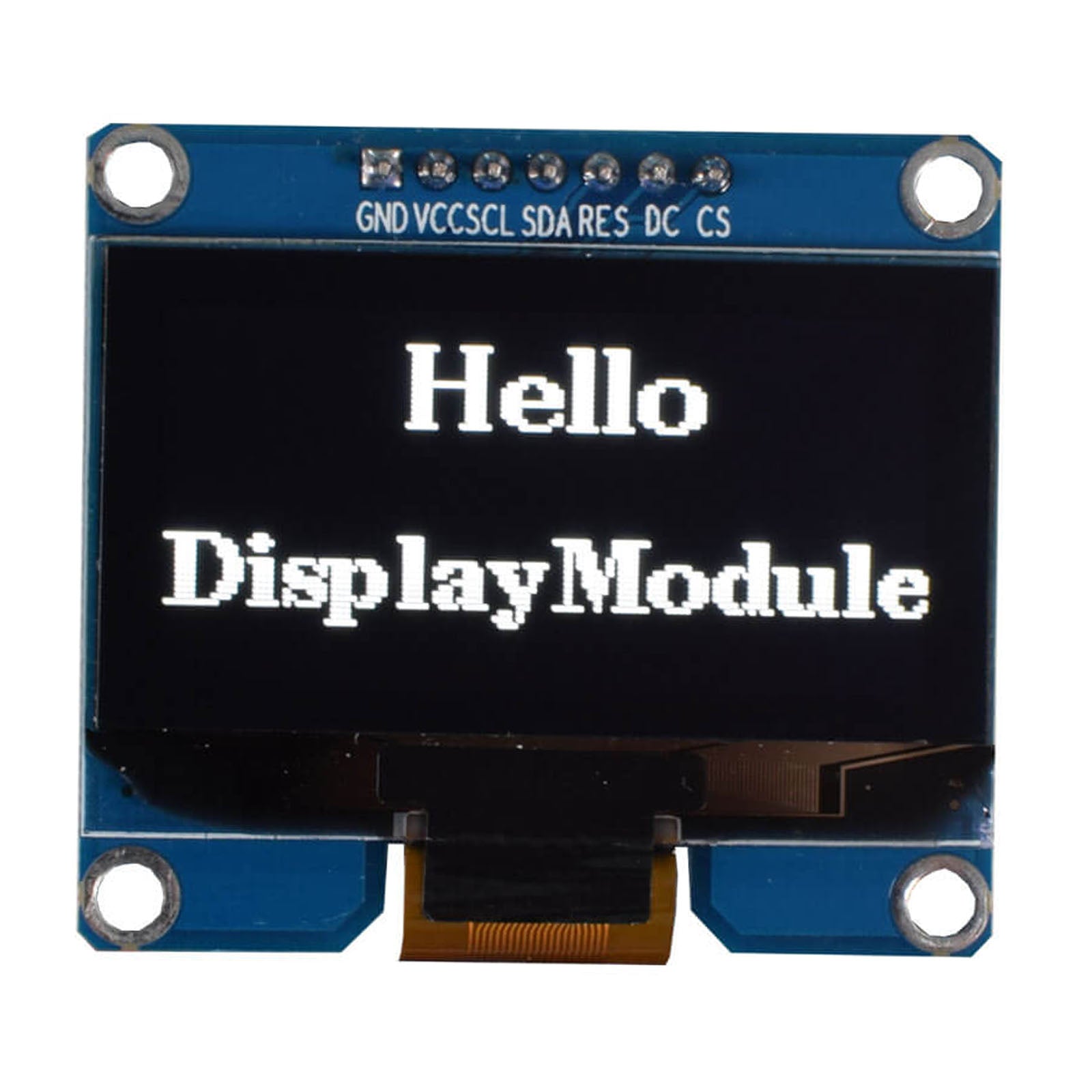

  • 1.54-inch OLED graphic display screen showing the text 'Hello DisplayModule'

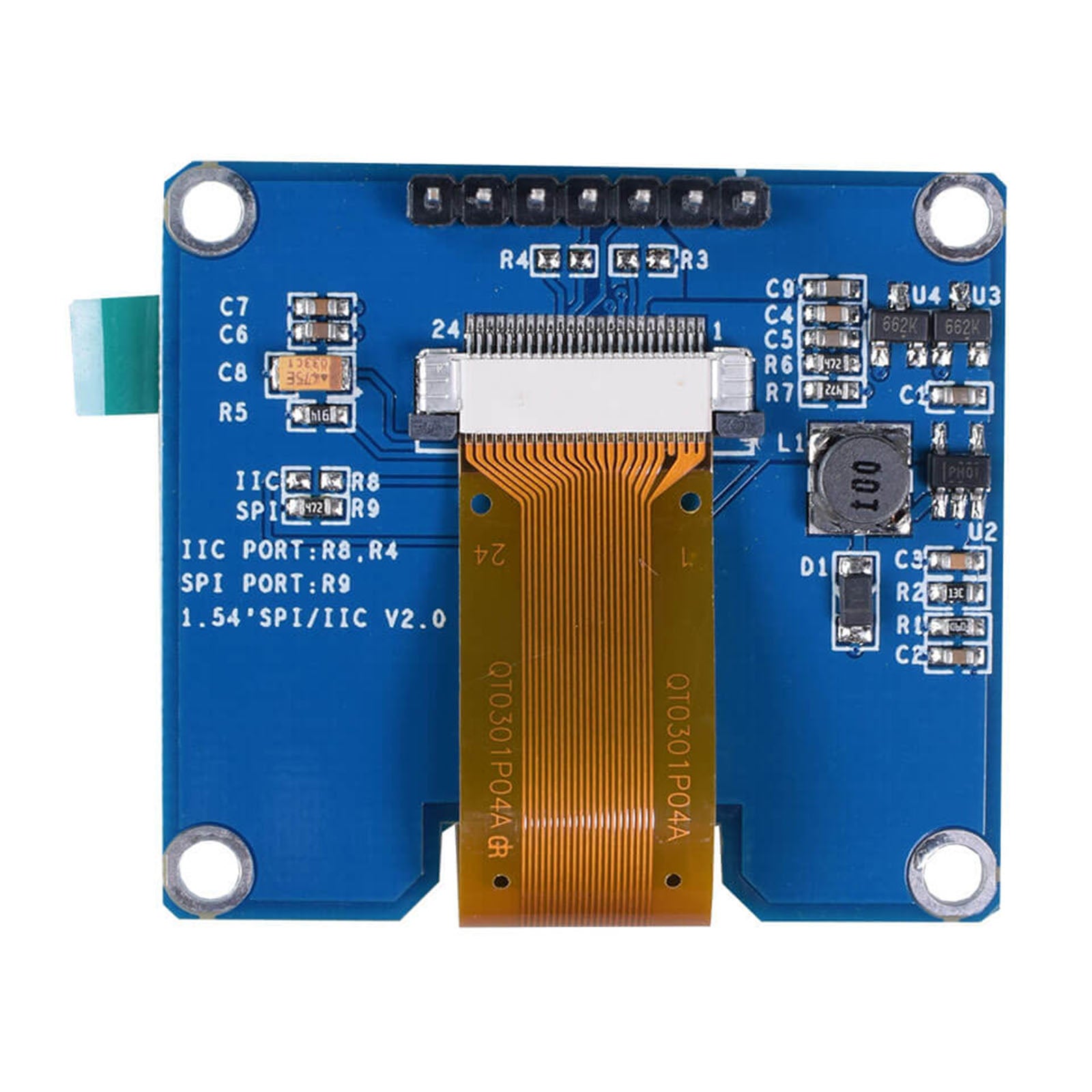

  • Back of 1.54-inch OLED graphic display module

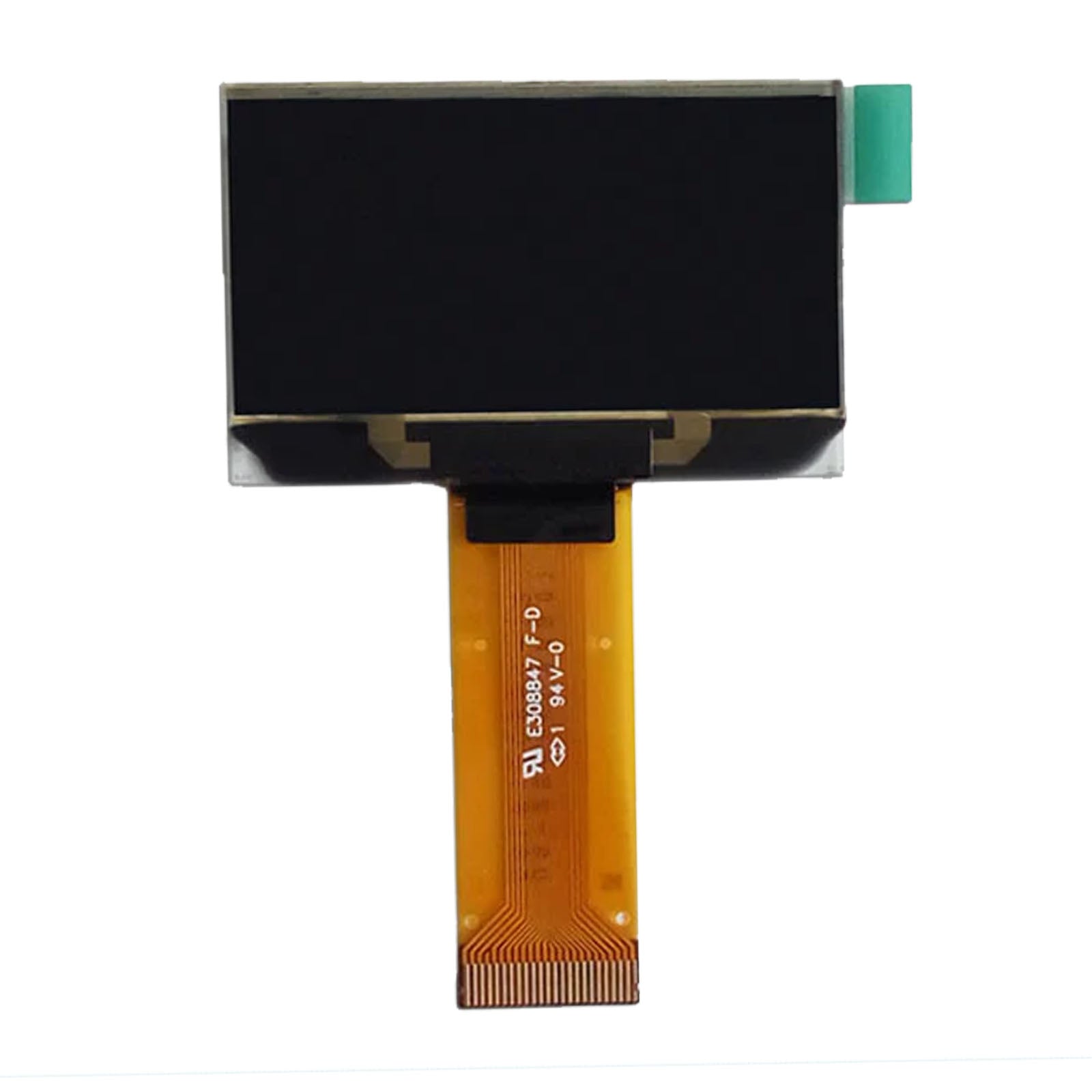

  • 1.54-inch OLED Graphic Display Panel, 128x64 resolution, SPI interface

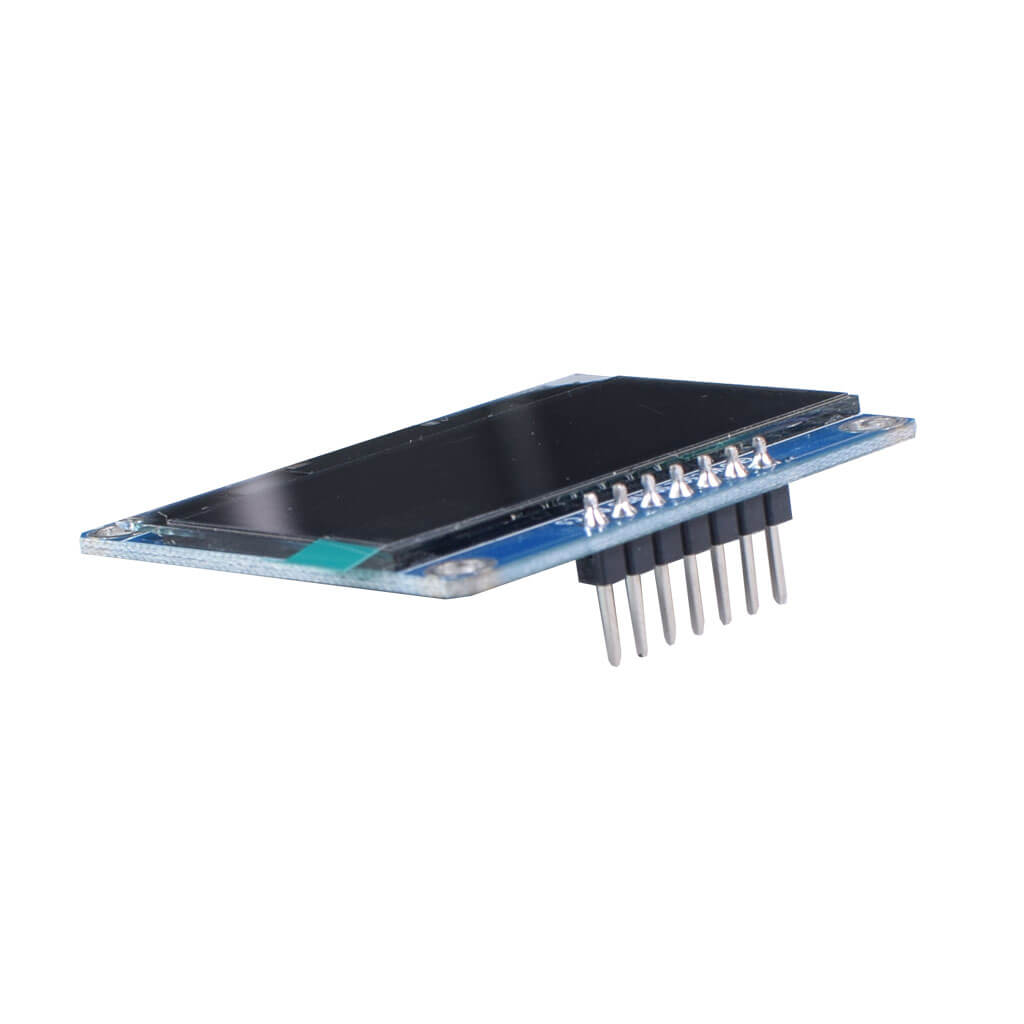

  • Side of 1.54-inch OLED Graphic Display Module
1 / 1

1.54" OLED Graphic Display 128x64 - SPI

$14.90
Shipping calculated at checkout.
SKU: DM-OLED154-639
Color: White
Type: with Board
1.54-inch OLED graphic display screen showing the 'DisplayModule' logo
$14.90
White / with Board

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Resolution : 128 x 64 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome
  • Module Dimension : 38.00 x 42.4 mm
  • Viewing Area : 35.052 x 17.516 mm
  • Power Supply : 2.8 V
  • Interface : 4wire SPI
  • Controller IC : SPD0301
  • Operation Temperature : -40℃~70℃
  • Storage Temperature : -40℃~85℃

Dimension

Resources

Driver IC: SPD0301-Rev0.1

Please contact info@displaymodule.com to ask for the datasheet.

Please refer to Arduino  Library: u8g2 ,It is compatible with SSD1309,uncomment :U8G2_SSD1309_128X64_NONAME0_1_4W_SW_SPI u8g2
