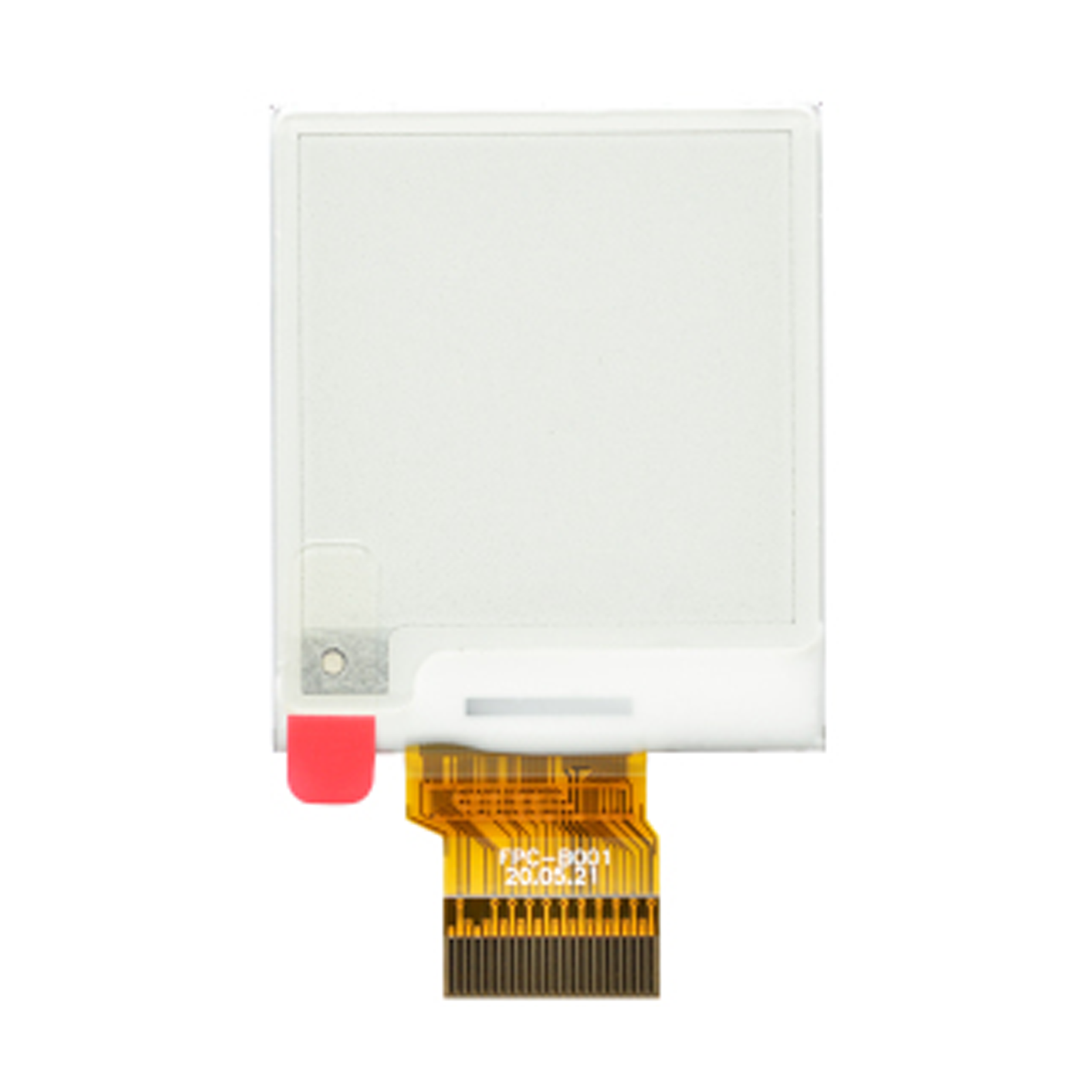

• 1.54-inch TFT Display Module, 200x200 resolution, All View, AMEPD technology, SPI interface
  • 1.54-inch TFT Display Panel
  • Back of 1.54-inch TFT Display Panel

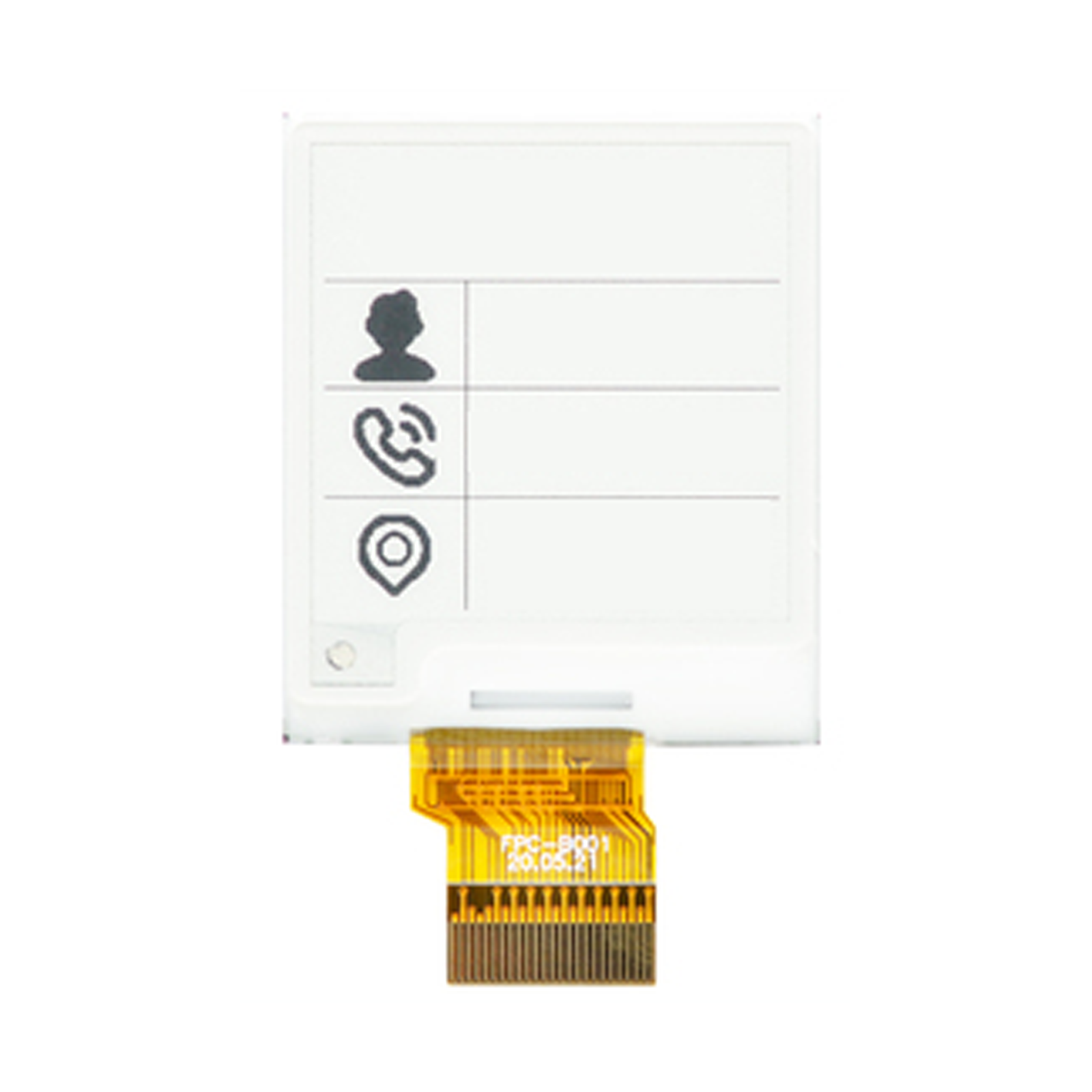

  • Front of 1.54-inch TFT Display Panel
1 / 1

1.54" TFT Display 200x200 All View AMEPD - SPI

$14.90
Shipping calculated at checkout.
SKU: DM-EPD154-012
Type: Module
1.54-inch TFT Display Module, 200x200 resolution, All View, AMEPD technology, SPI interface
$14.90
Module

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 1.54 inch
  • Resolution : 200(H)RGB x 200(V) pixel
  • View Direction : All View
  • Touch Mode : None
  • Module Dimension : 31.80(H)×37.32(V) ×0.98(D) mm
  • Viewing Area : 27.0(H)×27.0(V) mm
  • Supply Voltage : 3.0 V
  • Interface : 3/4 Line SPI
  • Luminance : 400 cd/m2
  • Drive IC : SSD1681
  • Operation Temperature :  0℃~50℃
  • Storage Temperature : -25℃~70℃

Dimension



Resources

Datasheet ：DM-EPD154-012
Driver IC: SSD1681
