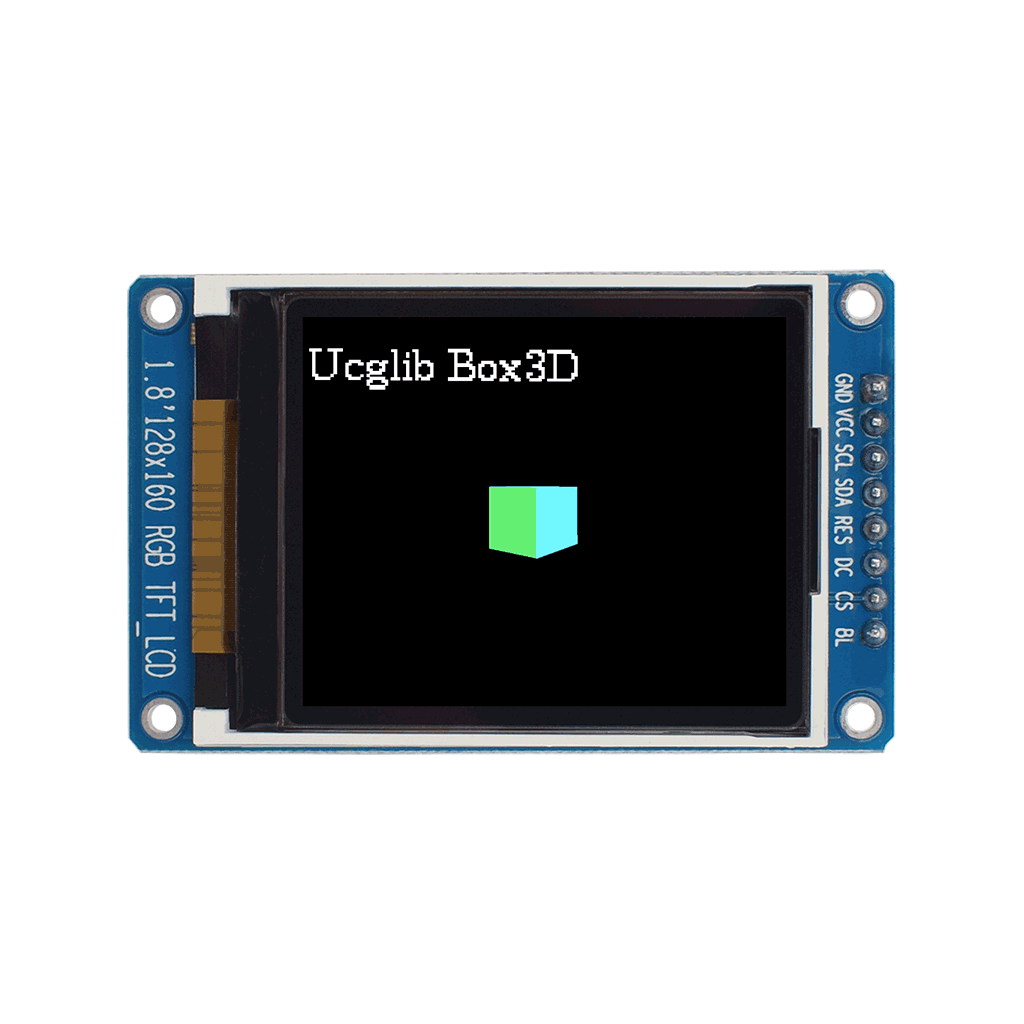

• 1.8-inch display module showing a 3D geometric shape

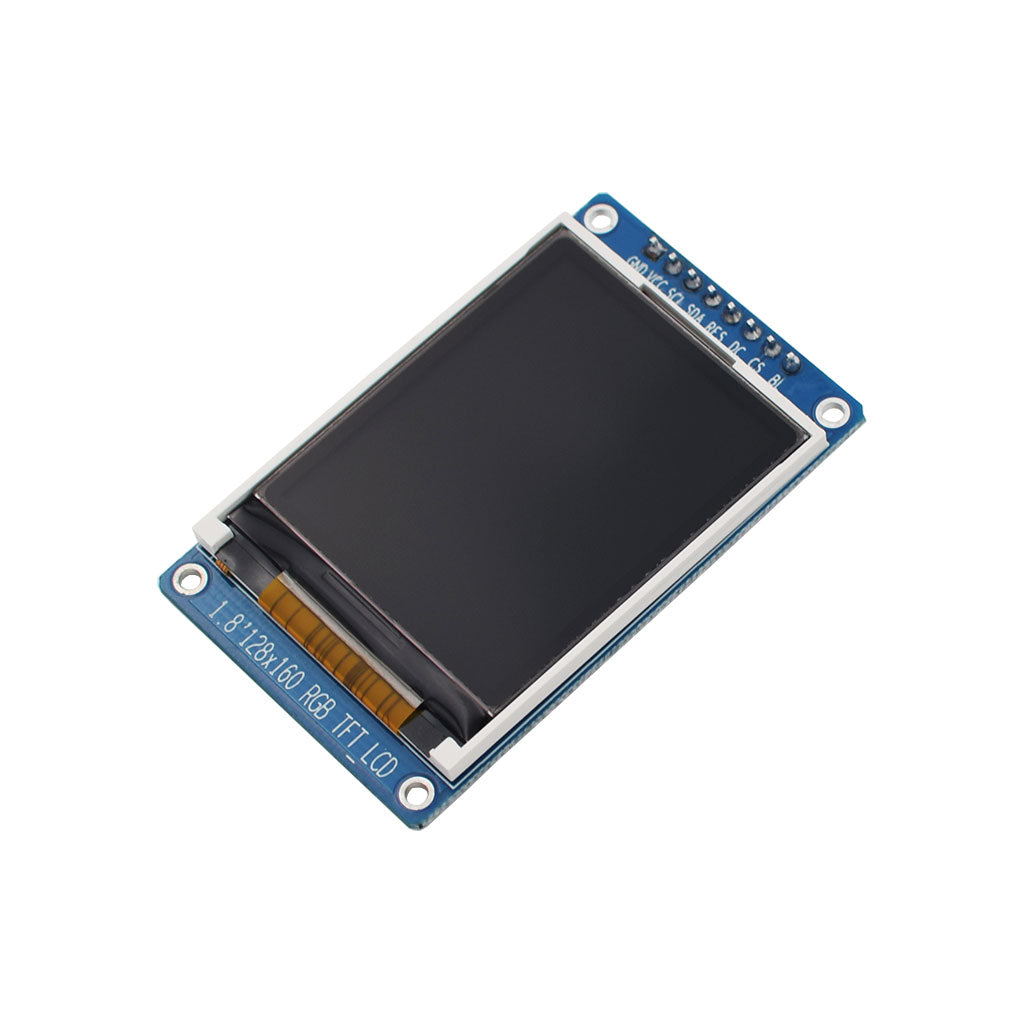

  • 1.8-inch TFT High Brightness Display with a resolution of 128 by 160 pixels, boasting 1800 nits brightness, interfaced with SPI

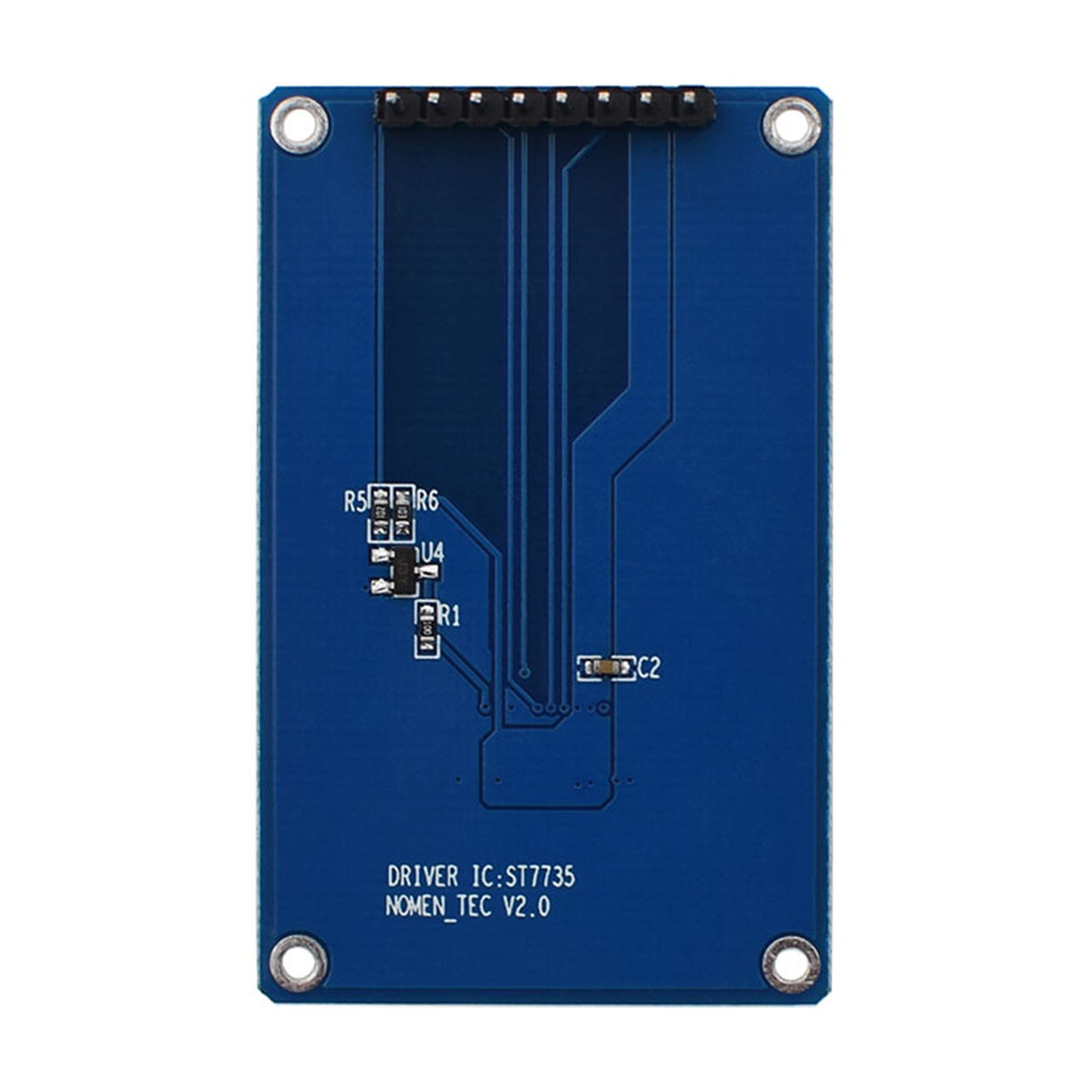

  • Back of 1.8-inch TFT High Brightness Display Module

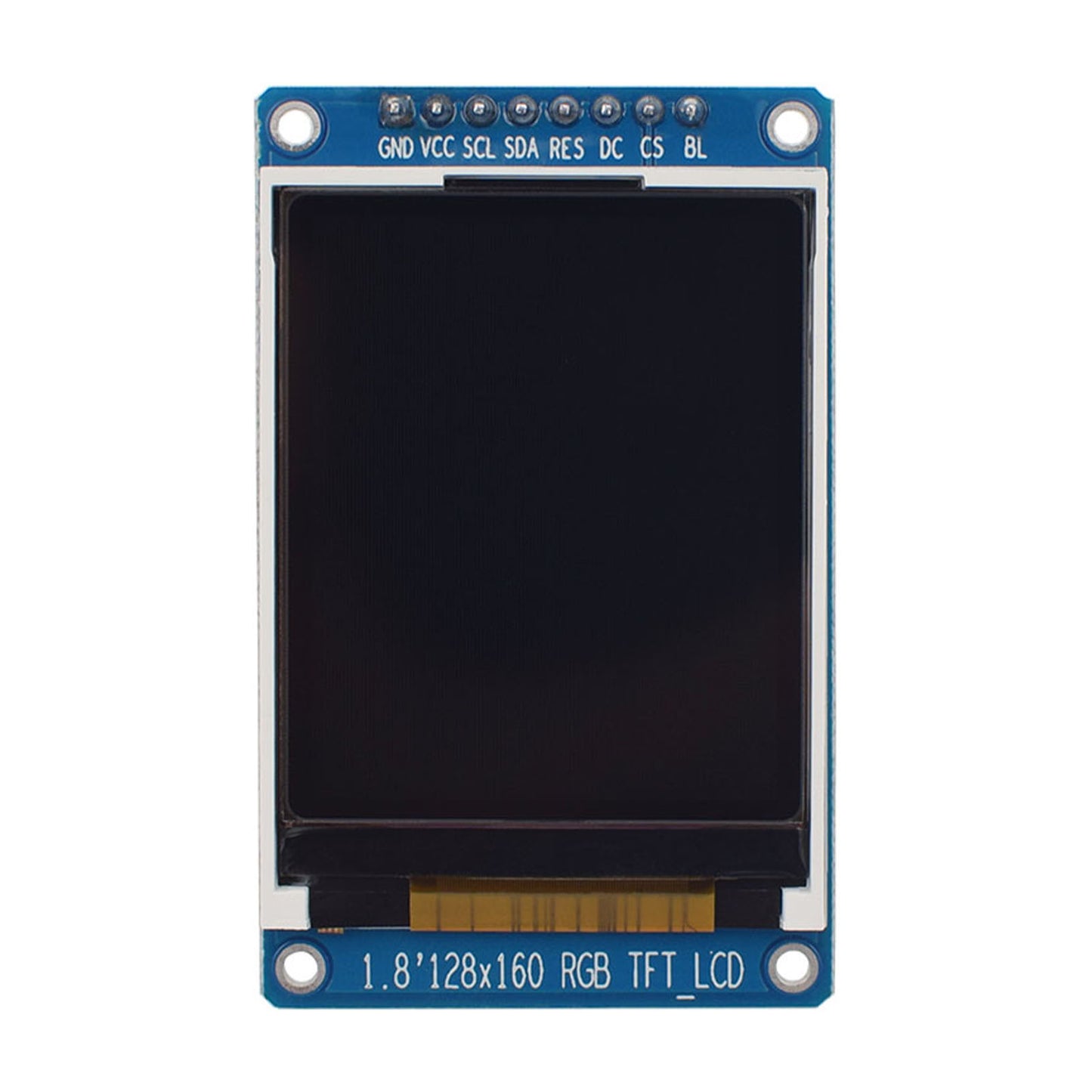

  • Top View of 1.8-inch TFT High Brightness Display Module
  • 1.8-inch display module playing a geometric animation
1 / 1

1.8" TFT High Brightness Display 128x160 1800nits - SPI

$4.90
Shipping calculated at checkout.
SKU: DM-TFT18-400
1.8-inch display module showing a 3D geometric shape
$4.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 1.8 inch
  • Resolution : 128x160 pixel
  • View Direction : 12 o’clock
  • Touch Mode : None
  • Module Dimension : 34.00x45.83x2.25 mm
  • Viewing Area : 28x35 mm
  • Supply Voltage : 2.8 V
  • Interface : 4wire SPI
  • Luminance : ≥1800 cd/m2
  • Drive IC : ST7735S
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimension



Resources

Driver IC: ST7735S-V1.1

DM-TFT18-400 code
