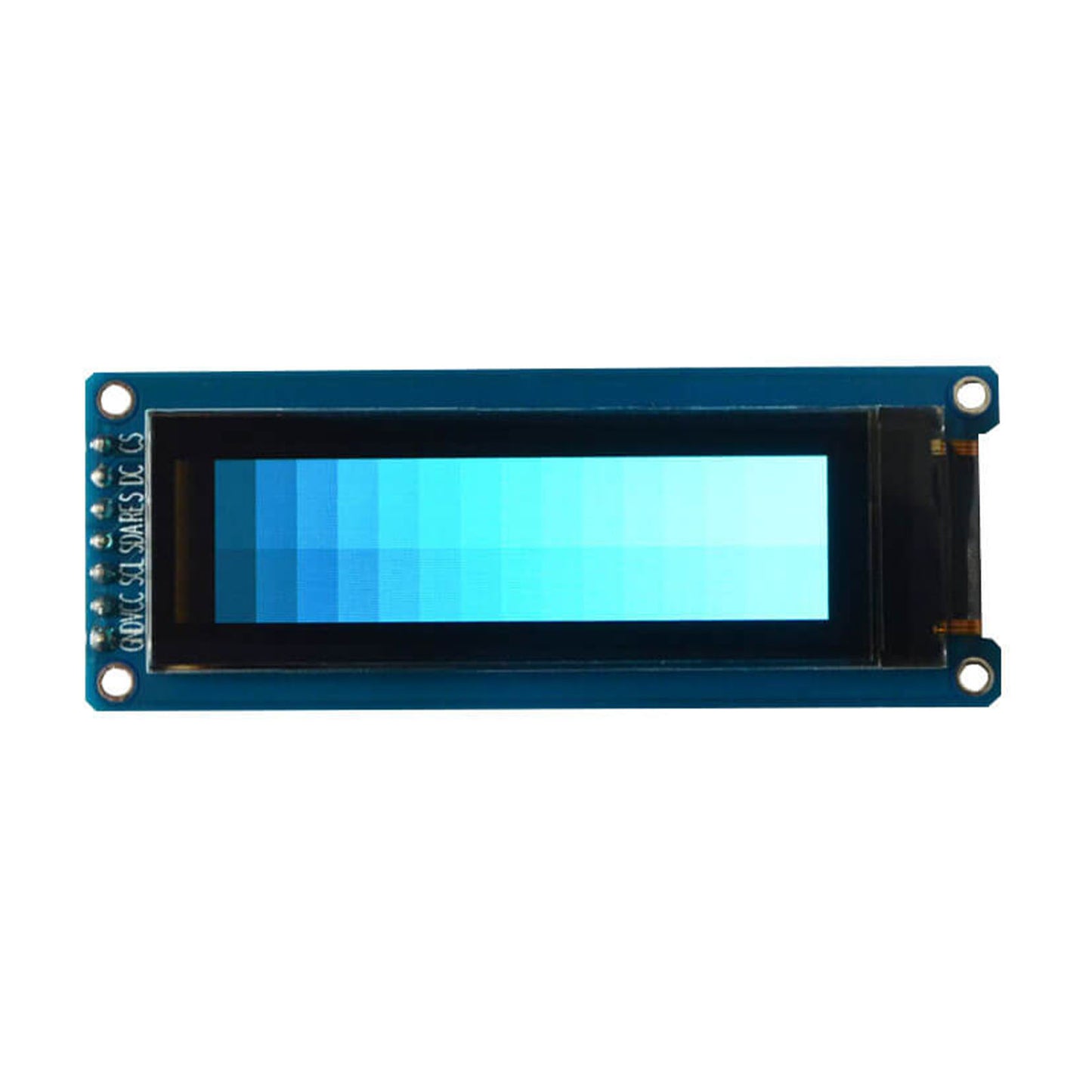

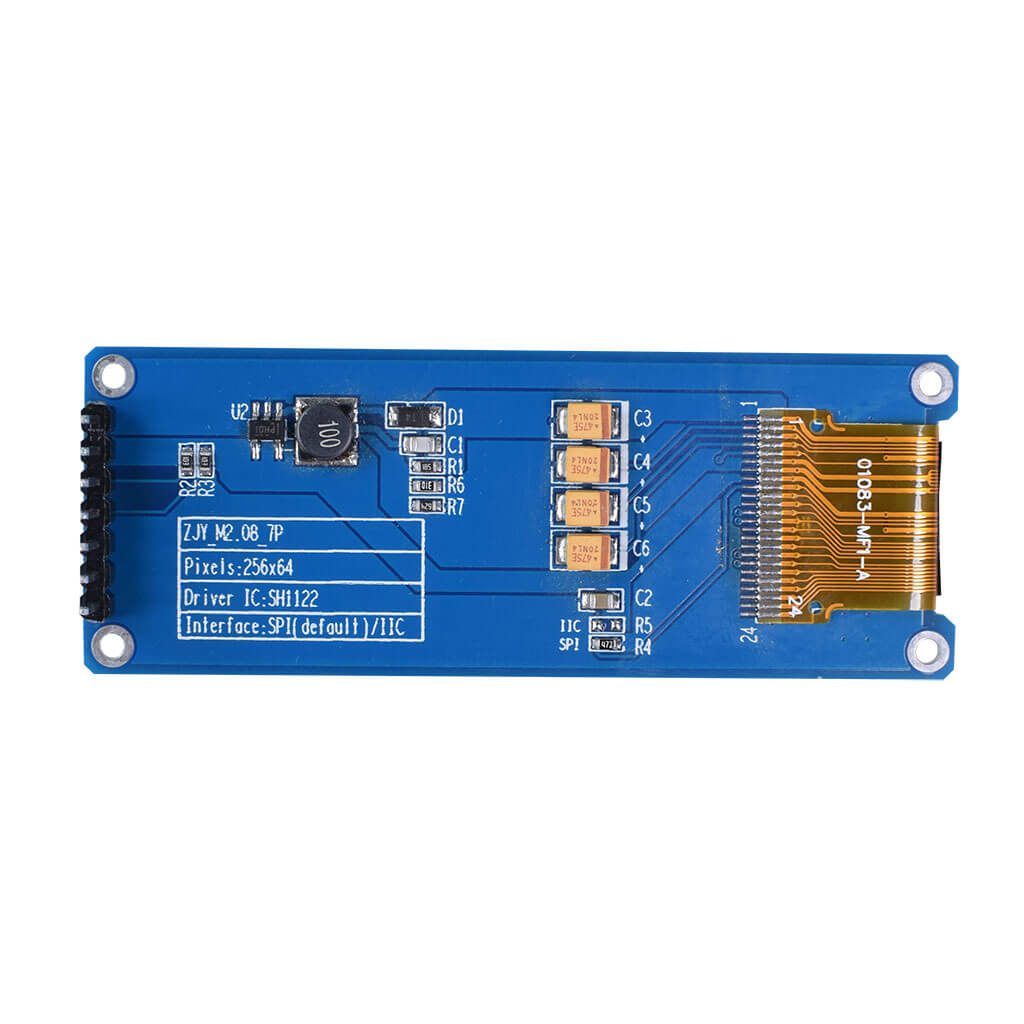

Display Specifications
- Resolution : 256 x 64 pixel
- Display Mode : Passive Matrix OLED
- Display Color : Monochrome (16 Gray Scale)
- Module Dimension : 72.50 x 27.24 mm
- Viewing Area : 51.17 x 12.78 mm
- Power Supply : 2.8 V
- Interface : 4wire SPI
- Controller IC : SH1122
- Operation Temperature : -40℃~70℃
- Storage Temperature : -40℃~85℃
Dimension
Resources
Driver IC: SH1122-V0.0
Please refer to Arduino SH1122 Library: u8g2 ; Uncomment device: U8G2_SH1122_256X64_1_4W_HW_SPI u8g2(U8G2_R0, /* cs=*/ 10, /* dc=*/ 9, /* reset=*/ 8);
You can refer to samples of the U8g2_Arduino-master\examples\page_buffer；
Connect pins：13: SCL；11: SDA；10: CS；9: DC；8: RES.
