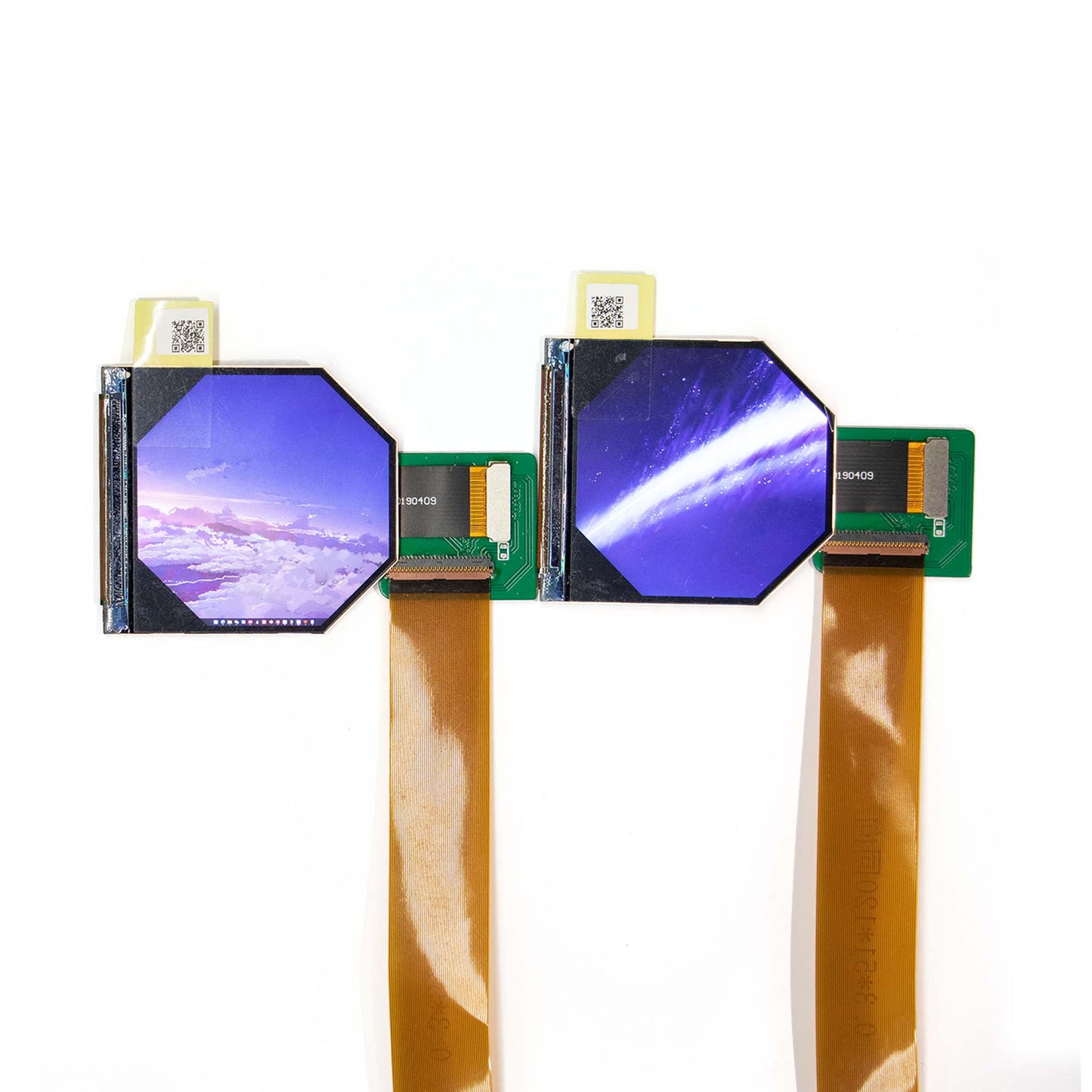

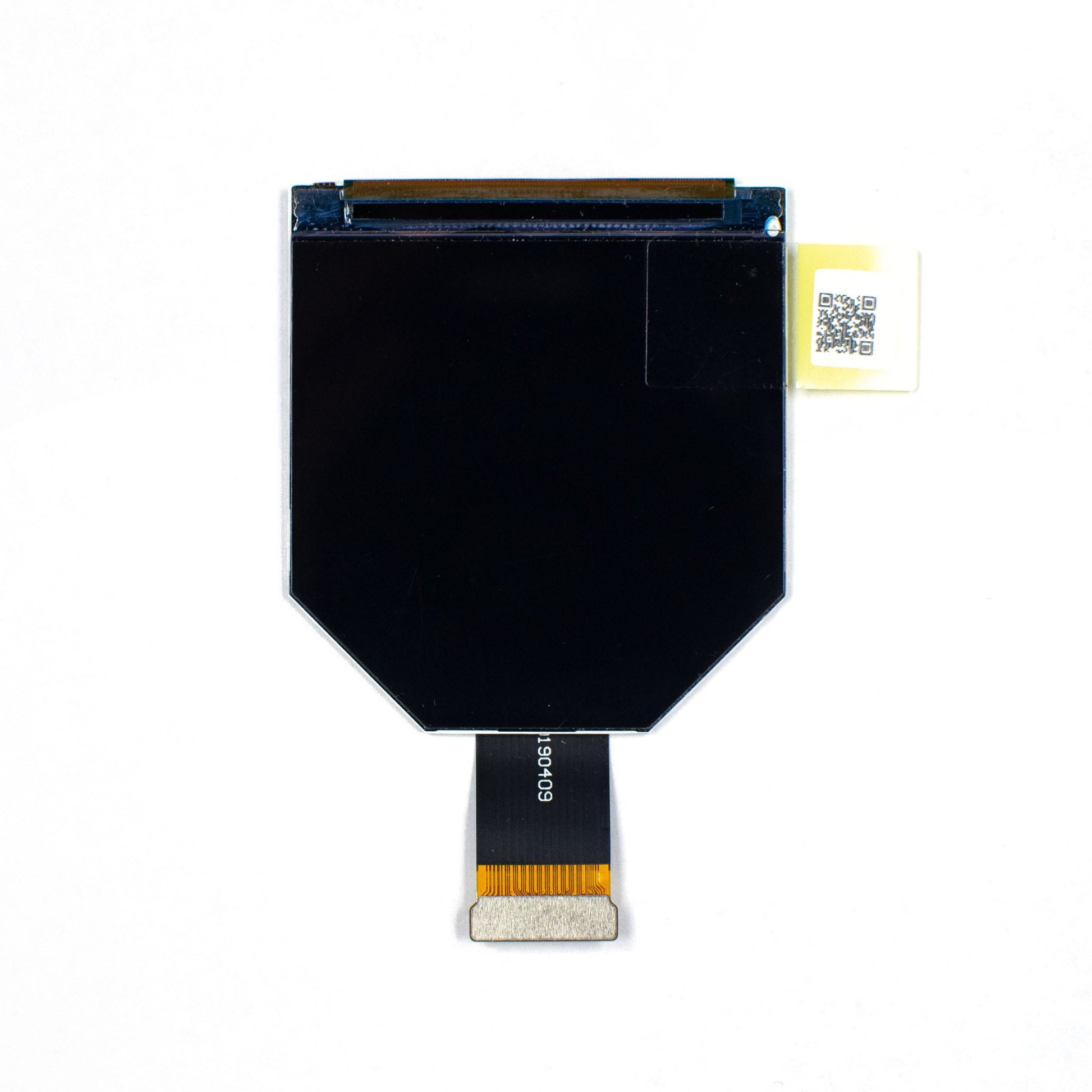

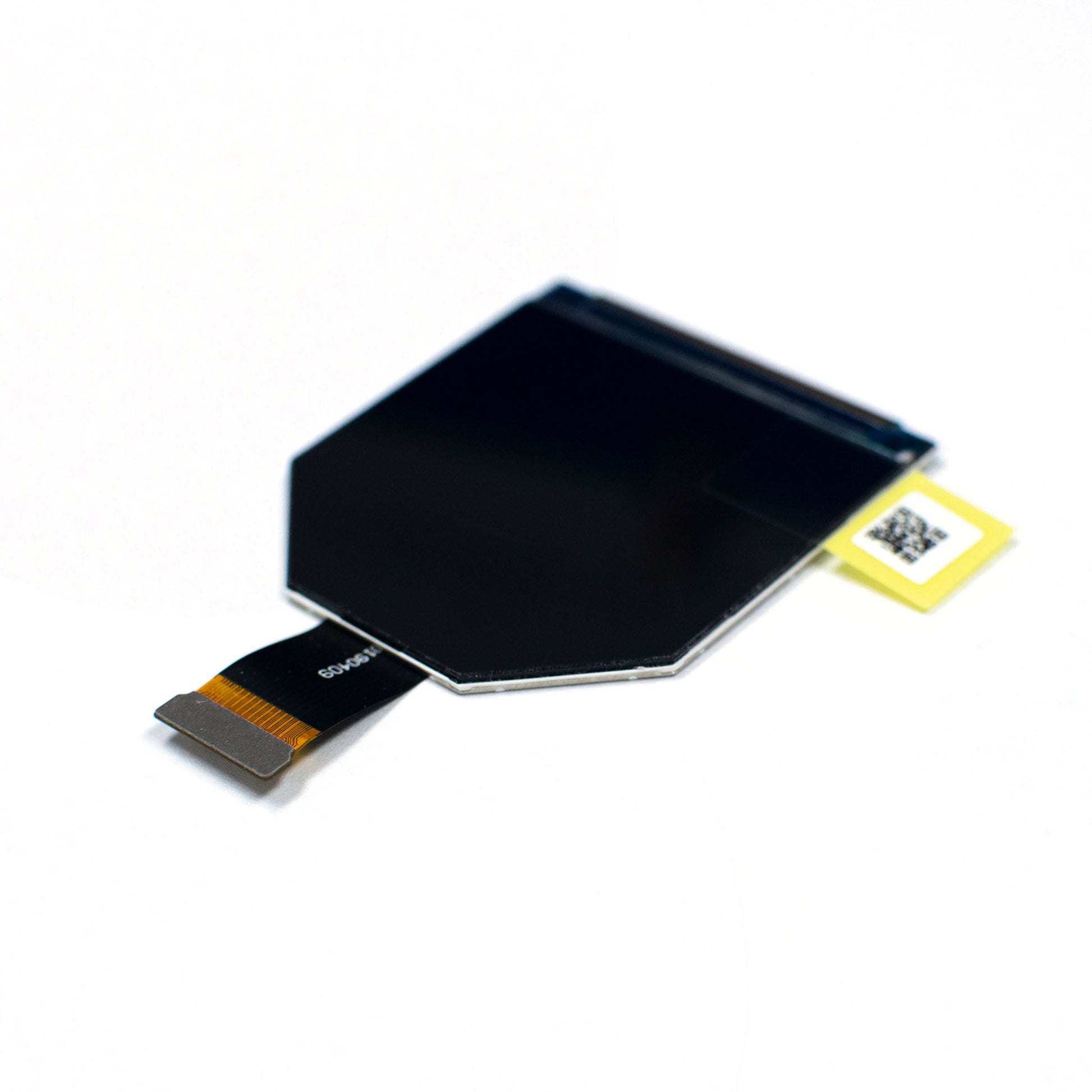

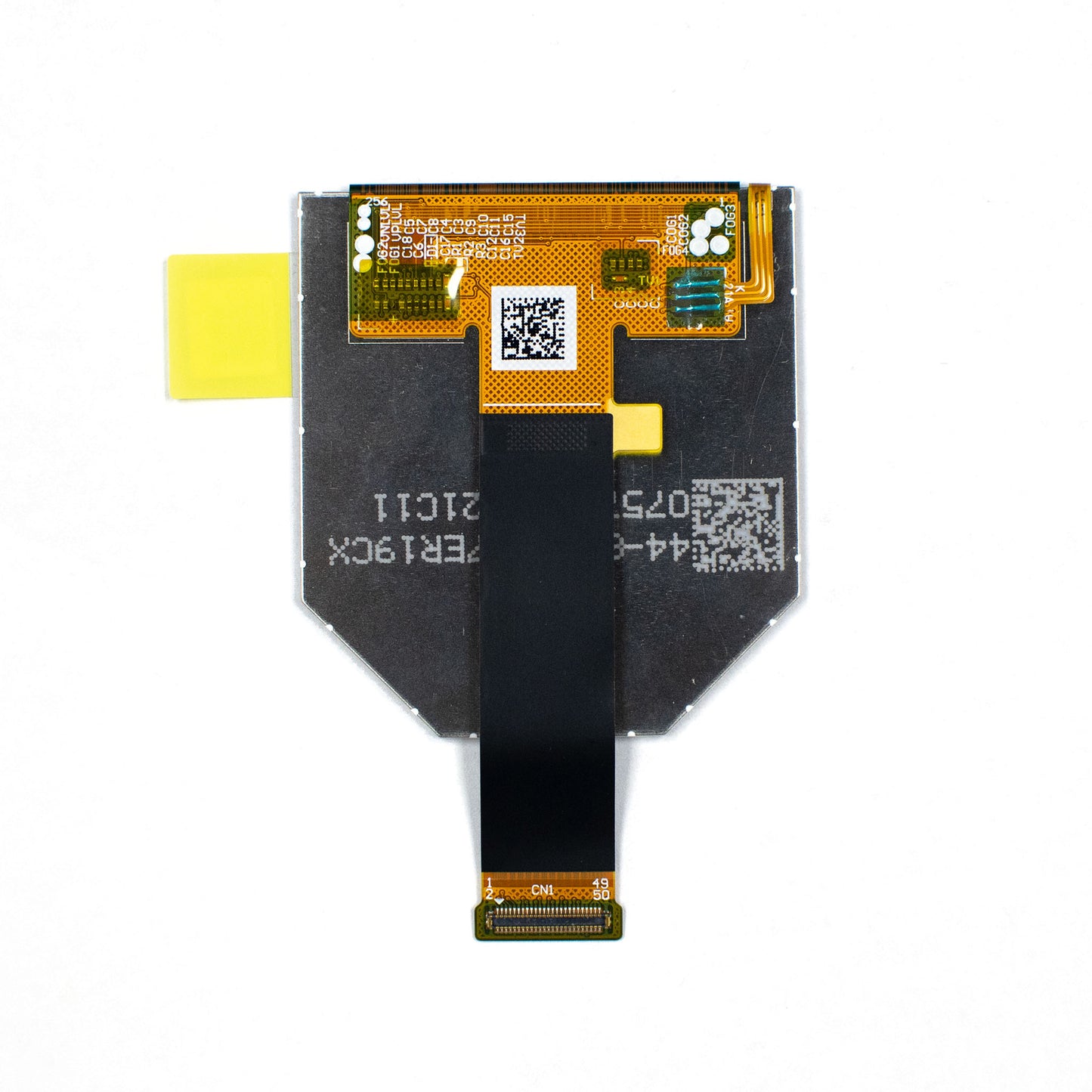

2.1" TFT High PPI Display for VR 1600x1600 1058ppi - MIPI DSI
2.1" TFT High PPI Display for VR 1600x1600 1058ppi - MIPI DSI
SKU:DM-TFT21-474
Regular price
$199.00 USD
Regular price
Sale price
$199.00 USD
Unit price
/
per
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
Display Specifications
Parameter | Specification |
Display Method | Active matrix TFT |
Resolution | 1600x1600 RGB, 1058 ppi |
Number of dots | 2.56M |
Pixel Pitch | 8µm(H) × 24µm(V) |
Luminance | 480cd/m² typical |
Contrast Ratio | 650:1 |
Power Consumption | 468mW |
Frame Rate | 70Hz or 90Hz |
Display Colors | 16.7M 8bit |
Outline Dimension | 41.2mm(H) × 45.3mm(V) × 1.66mm(T) |
Display Area | 2.1" diagonal |
Weight | 6.0 ±1.0g |
Interface | MIPI DSI (Video Mode) |
Operating Temperature | -10℃~55℃ |
Storage Temperature | -40℃~70℃ |
Dimensions
Resources
- Datasheet: DM-TFT21-474、HX8379-C
