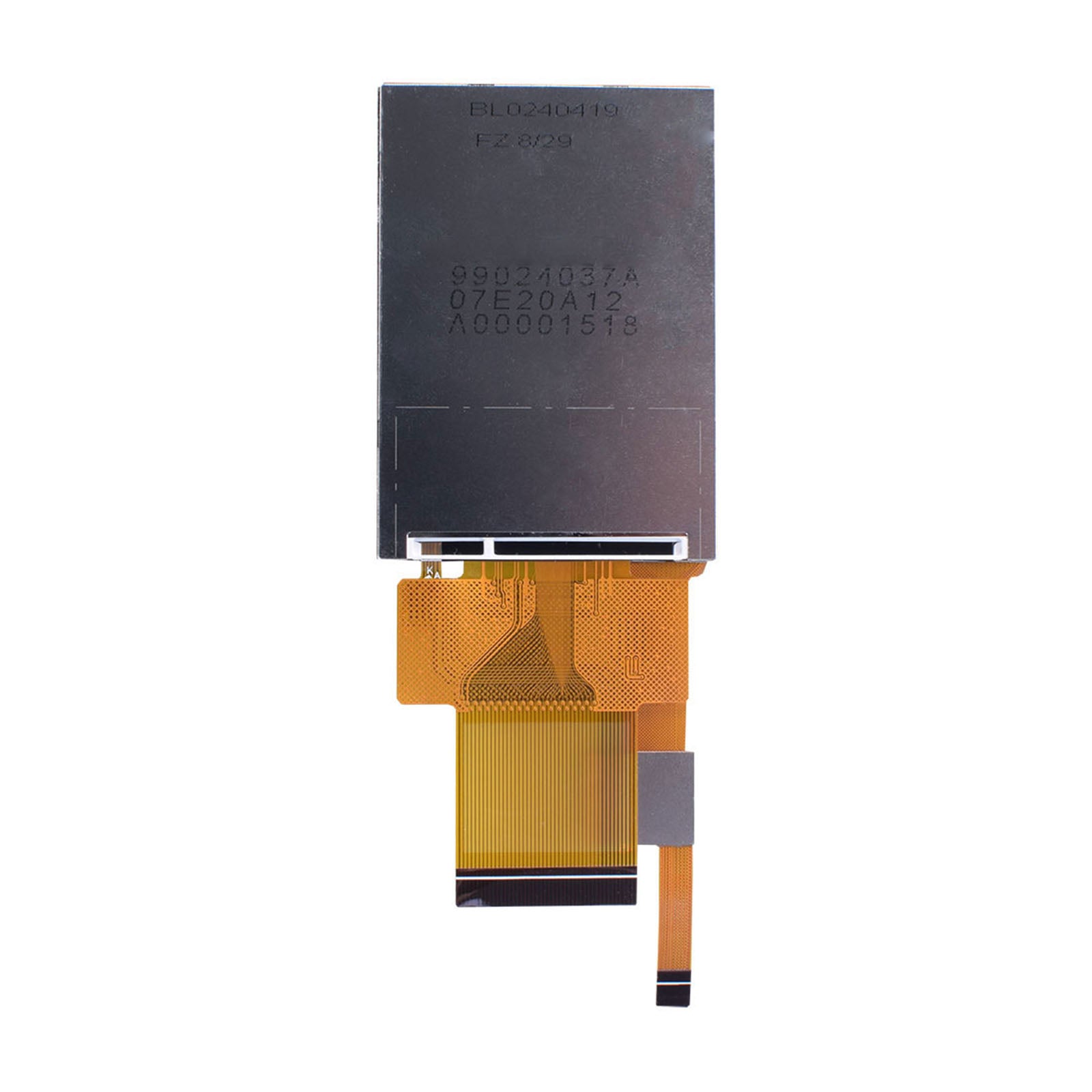

  • Back of 2.4 inch IPS Display Panel

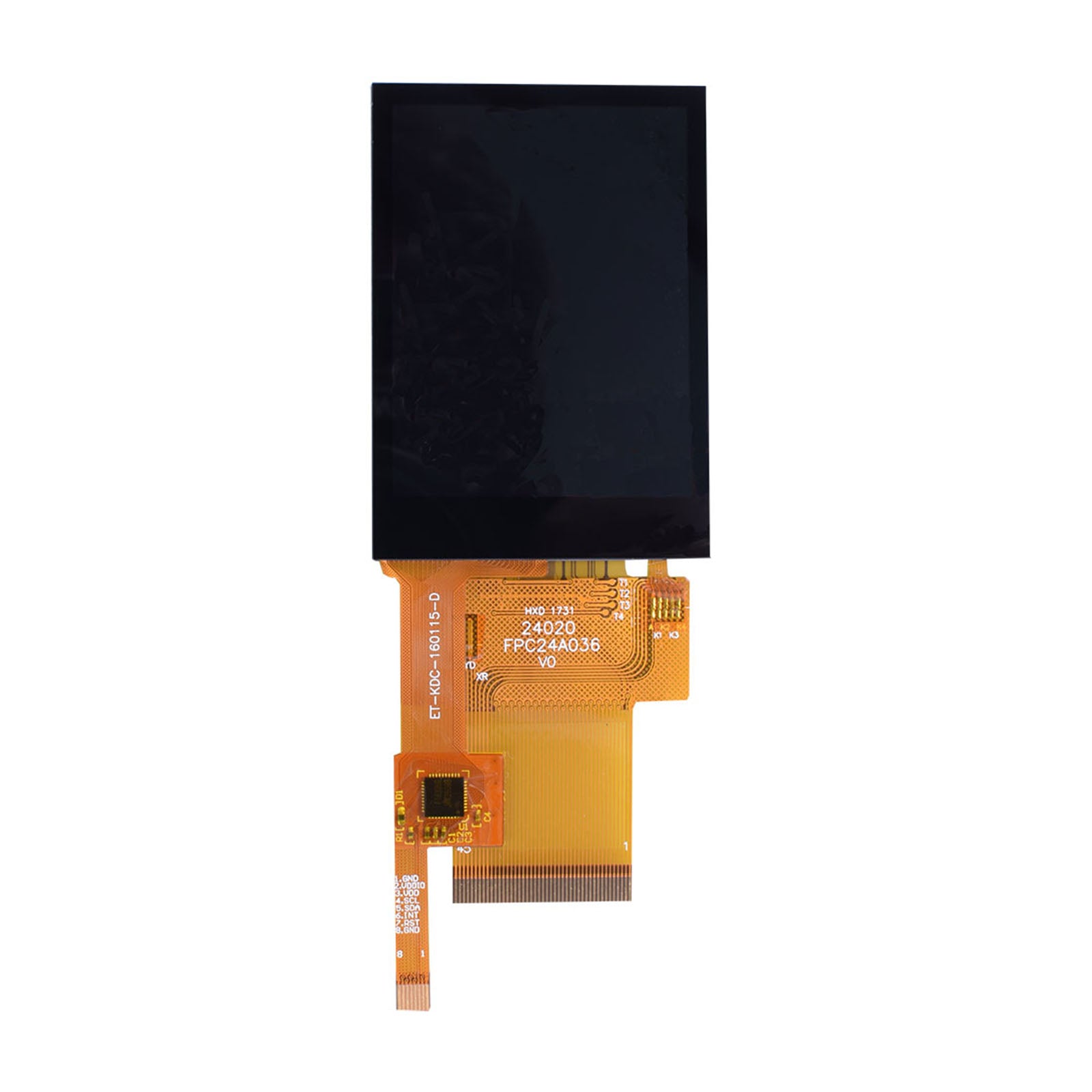

  • Top view of 2.4 inch IPS Display Panel
1 / 1

2.4" IPS Display 240x320 Capacitive - SPI, MCU, RGB

$49.90
Shipping calculated at checkout.
SKU: DM-TFT24-333
2.4 inch IPS Display Panel with 240x320 resolution and capacitive touch capability, utilizing SPI, MCU, and RGB interfaces
$49.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 2.4 inch
  • Resolution : 240 x 320 pixel
  • View Direction : All
  • Touch Mode : Single point and Gestures
  • Module Dimension : 42.92 x 60.26 x 4.25 mm
  • Viewing Area : 36.72 x 48.96 mm
  • Supply Voltage : 3.3 V
  • Interface : 8/9/16/18Bit MCU Interface,3/4SPI+16/18Bit RGB Interface,3-line/4-line Serial Interface
  • Luminance : 400 cd/m2
  • Drive IC : ST7789V,FT6336G
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions

Resources
  • 2.4 inch IPS Display Panel with 240x320 resolution and capacitive touch capability, utilizing SPI, MCU, and RGB interfaces

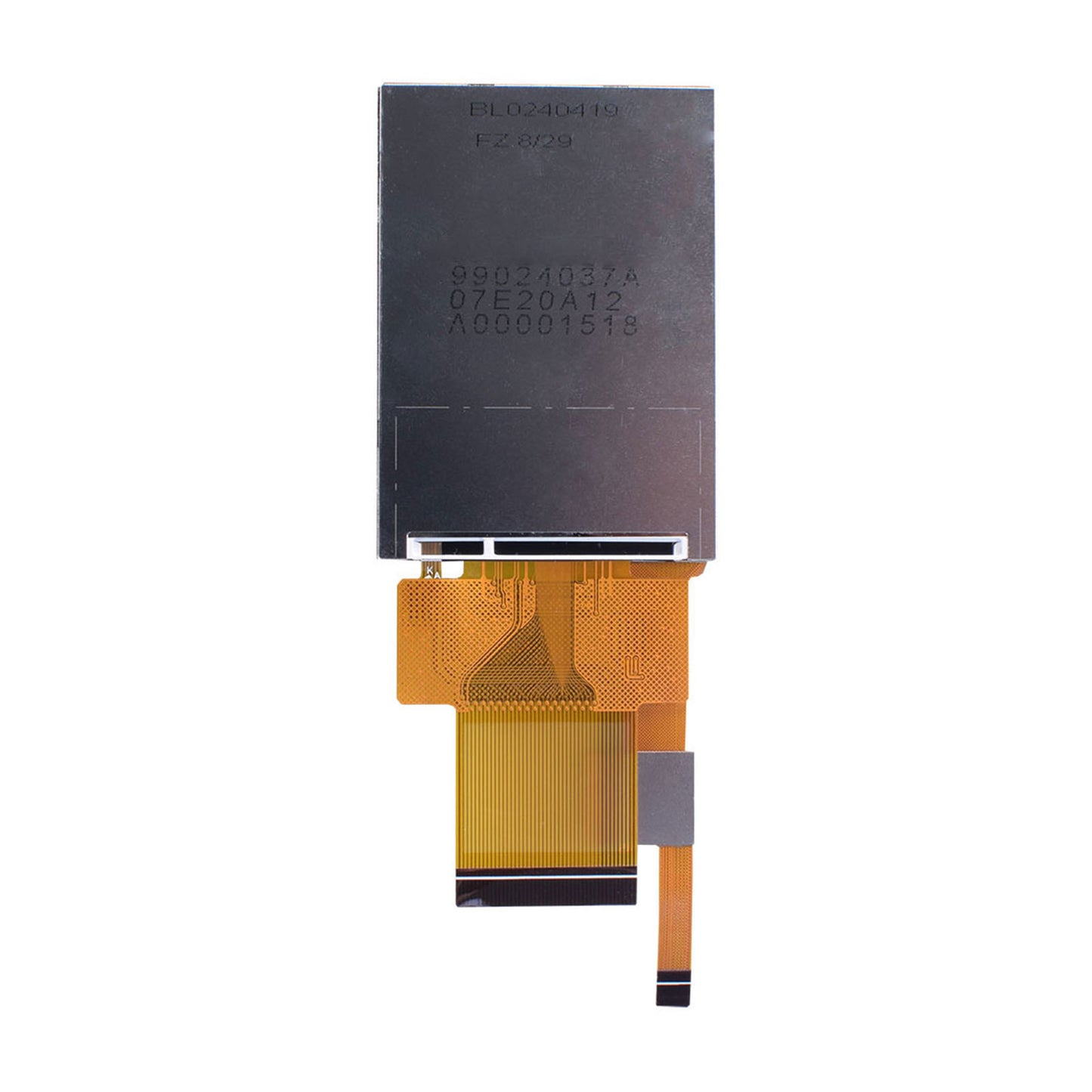

  • Back of 2.4 inch IPS Display Panel
  • Top view of 2.4 inch IPS Display Panel
