Display Specifications
- Diagonal Dimension : 2.4 inch
- Resolution : 240x320 pixel
- View Direction : 6 o'clock
- Touch Mode : Resistive
- Module Dimension : 47.72(H)x60.26(V)x5.8(D) mm
- Viewing Area : 36.72(H)x48.96(V) mm
- Supply Voltage : 3.3 V
- Interface : 8/16 bit MCU, 3/4 SPI+16/18bit RGB
- Luminance : ≥250 cd/m2
- Drive IC : ST7789V
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
Resources

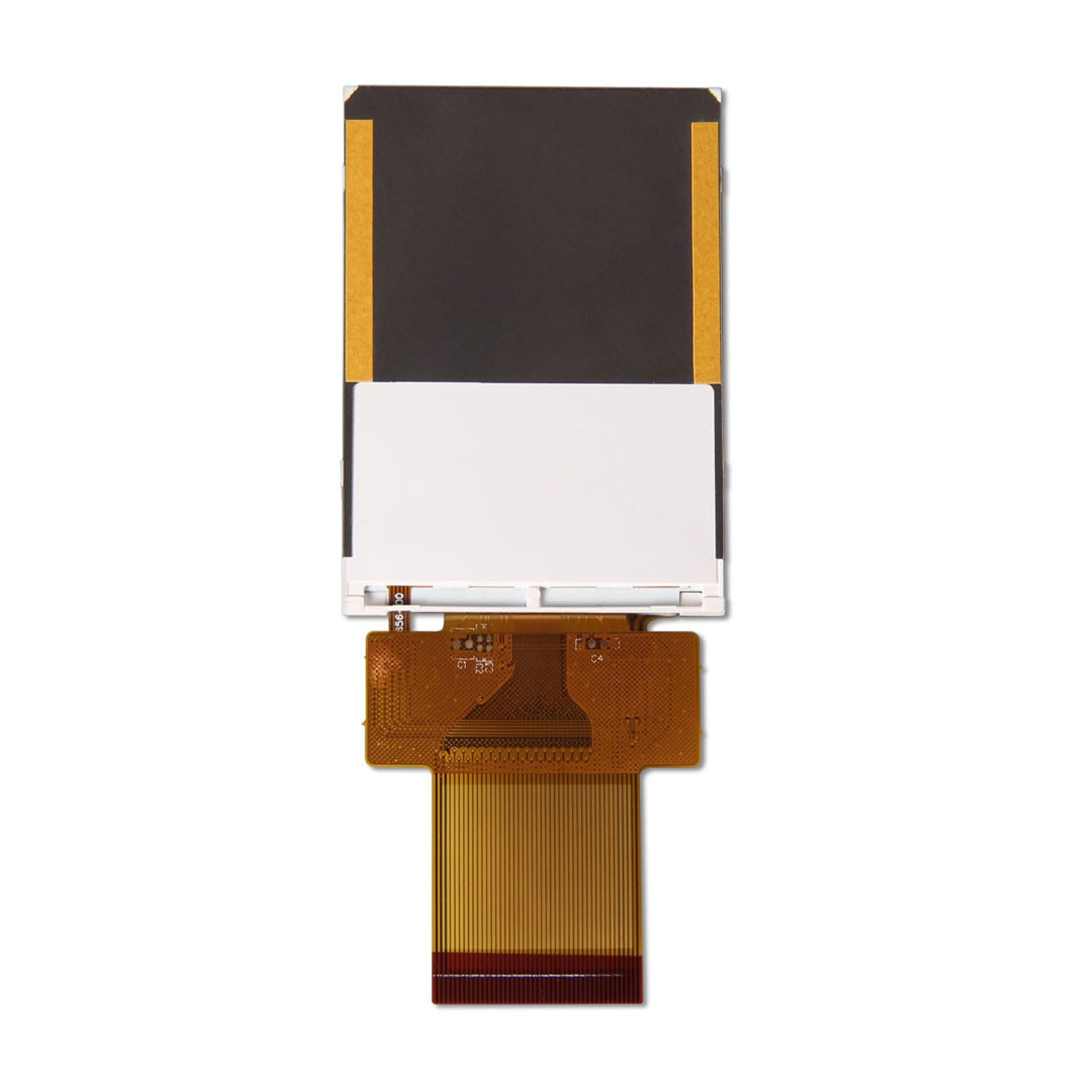

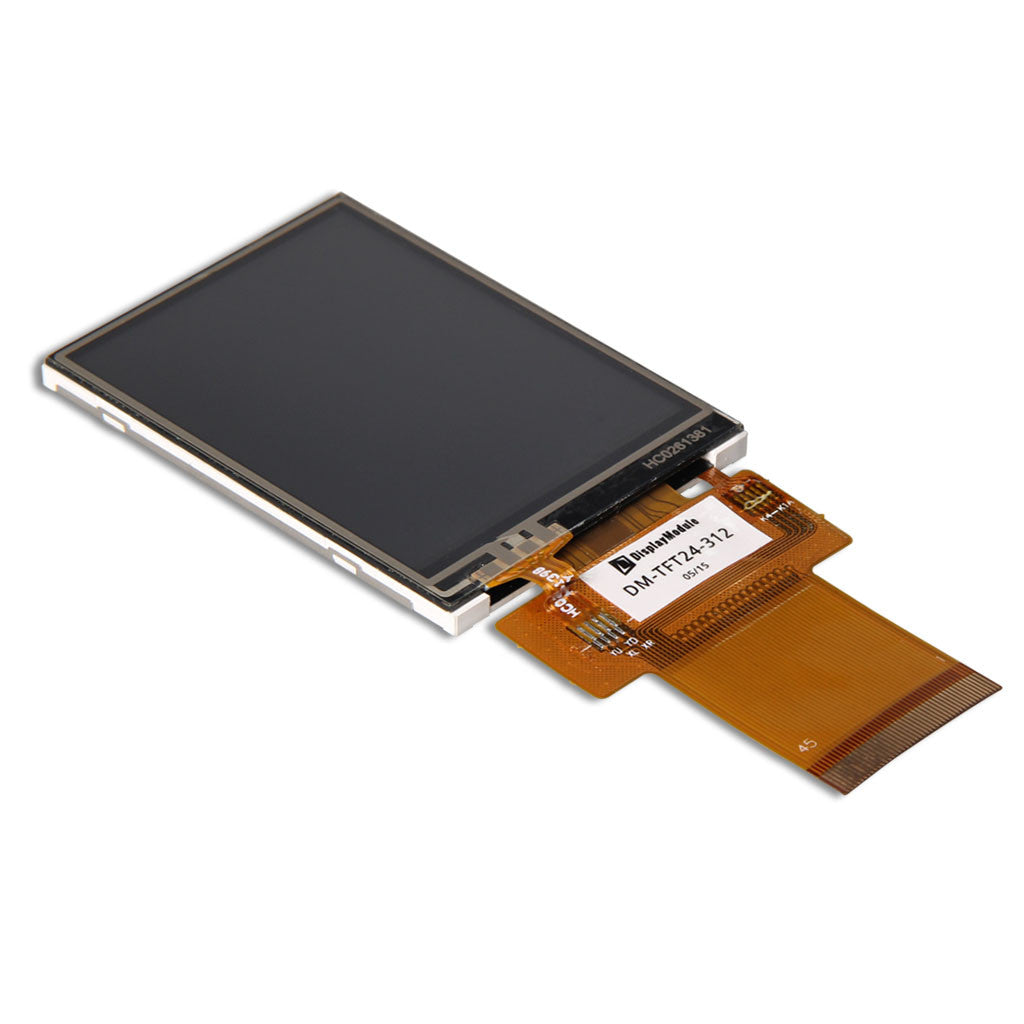

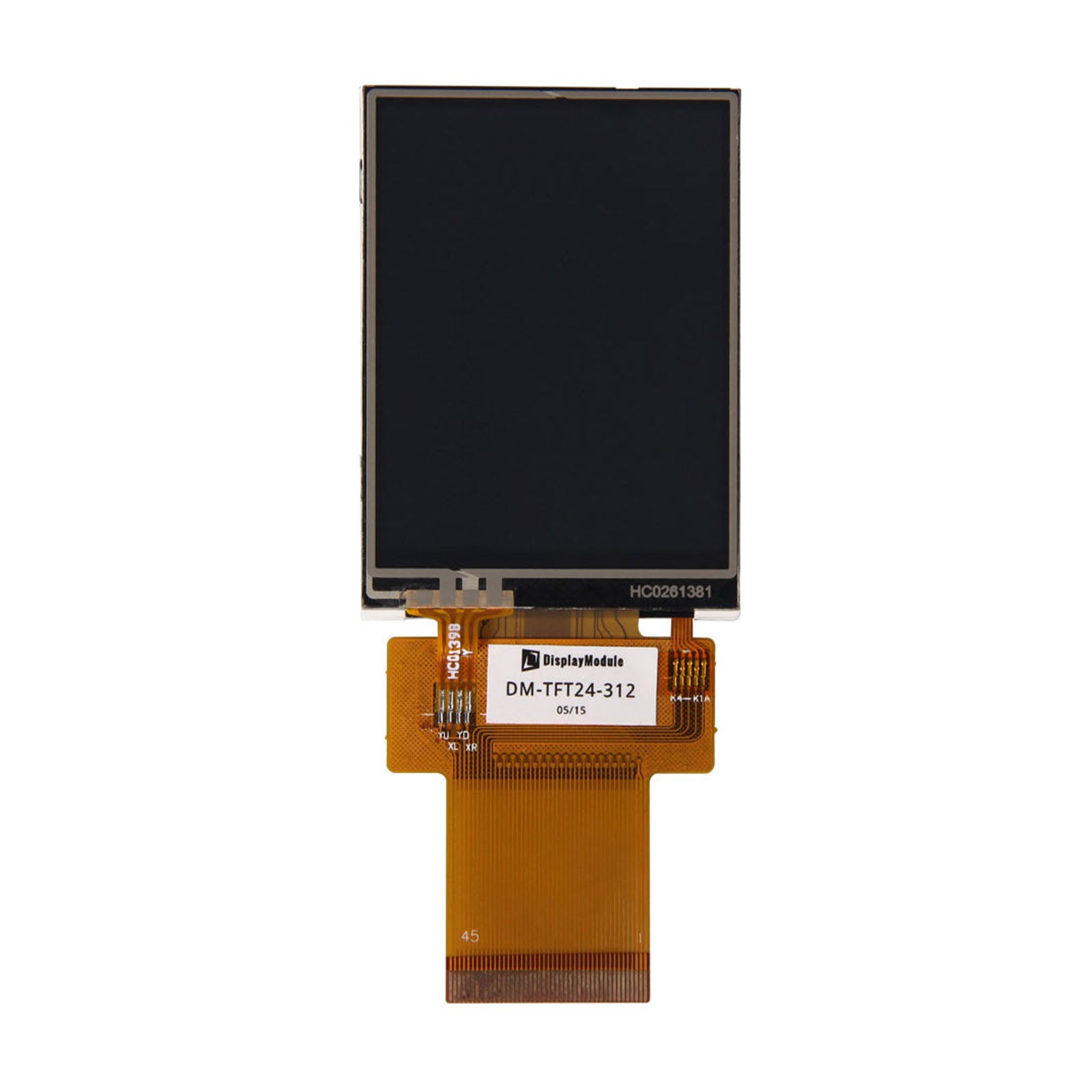

- DM-TFT24-312
- Display Controller: ST7789V-V1.4
