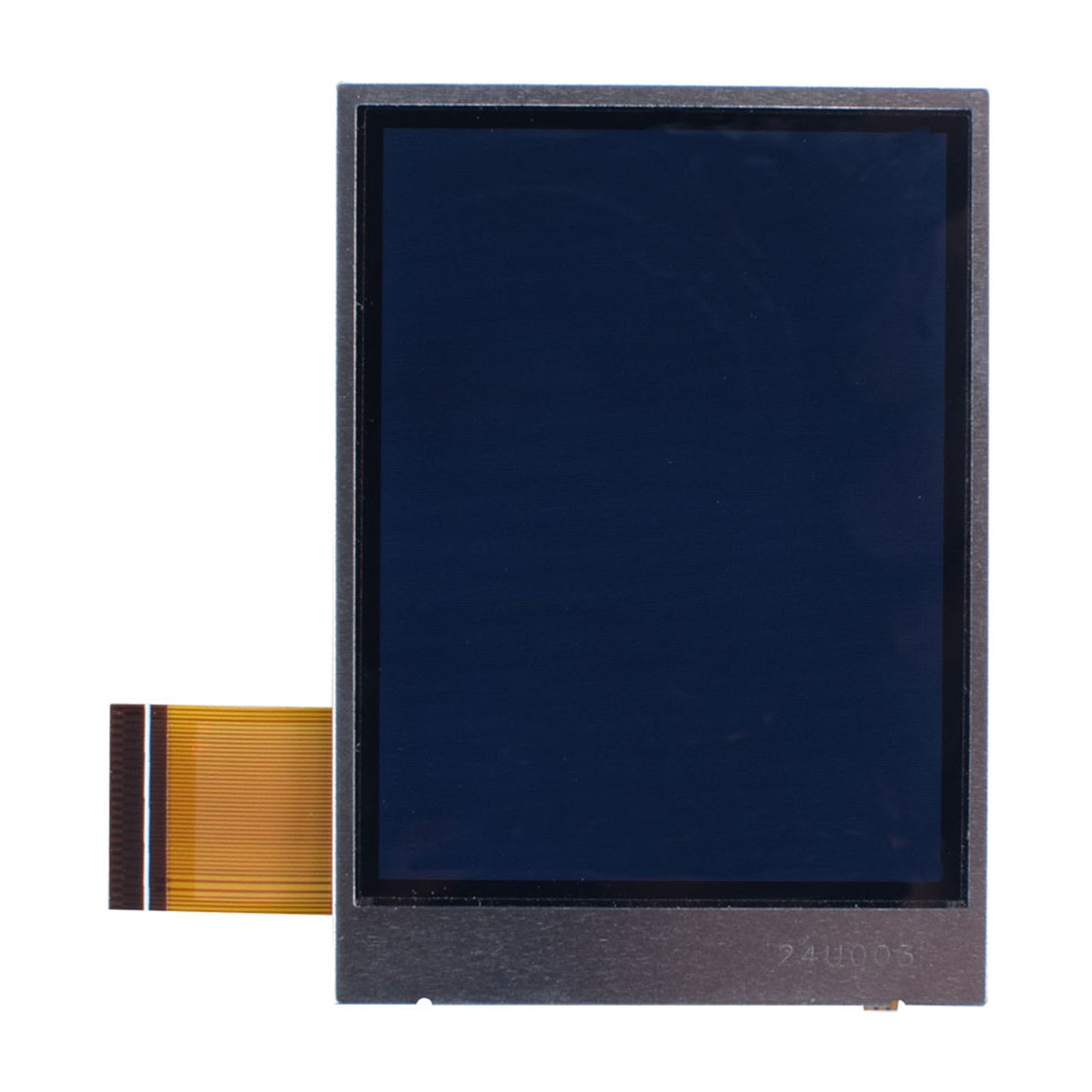

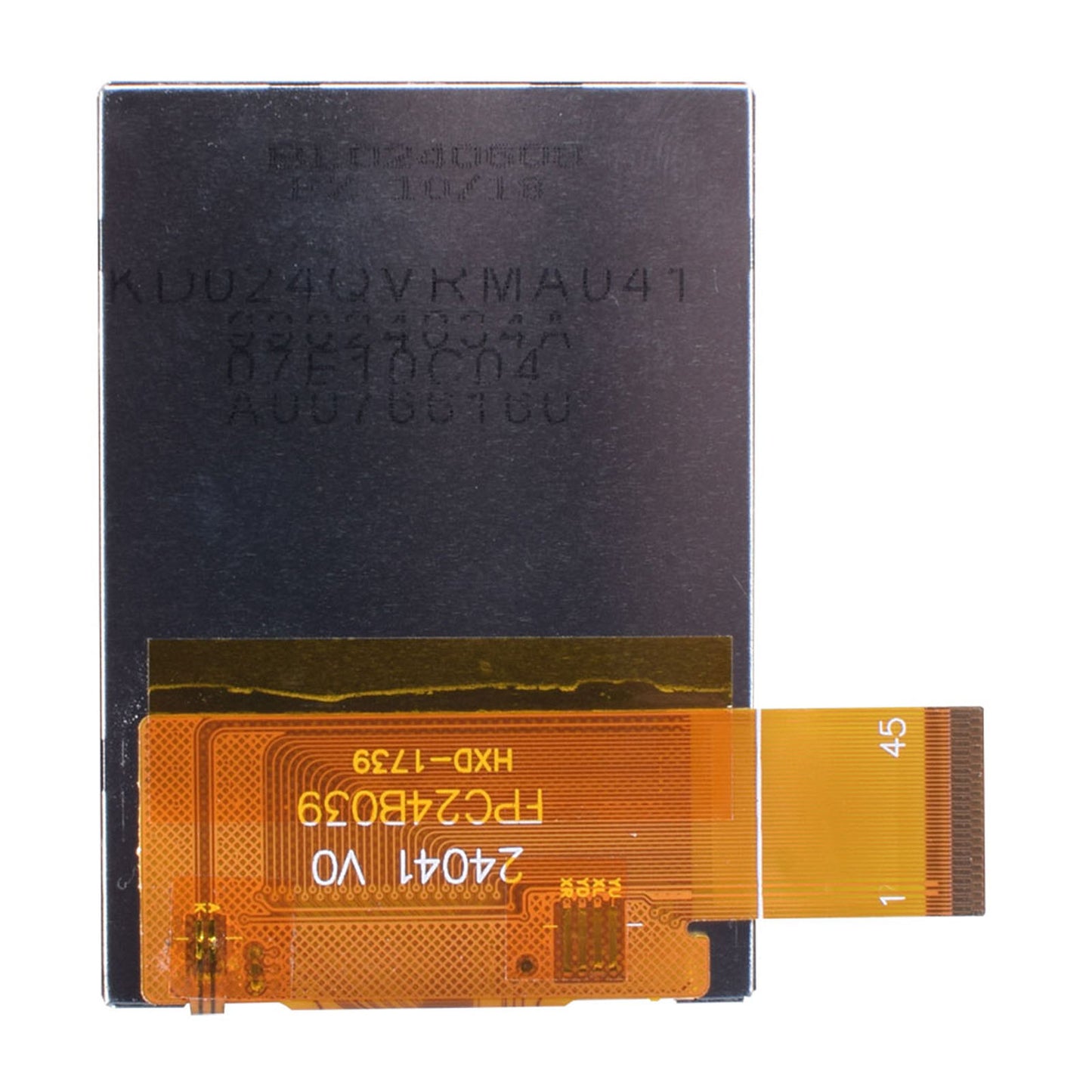

Display Specifications
- Diagonal Dimension : 2.4 inch
- Resolution : 240x320 pixel
- View Direction : Super wide
- Touch Mode : None
- Module Dimension : 42.92(H)x60.26(V)x2.45(D) mm
- Viewing Area : 36.72(H)x48.96(V) mm
- Supply Voltage : 3.3 V
- Interface : 8/9/16/18 Bit MCU,3/4SPI+16/18bit RGB,3-line/4-line Serial
- Luminance : 360 cd/m2
- Drive IC : ST7789V
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
Resources
- DM-TFT24-383
- Display Controller: ST7789V-V1.4
