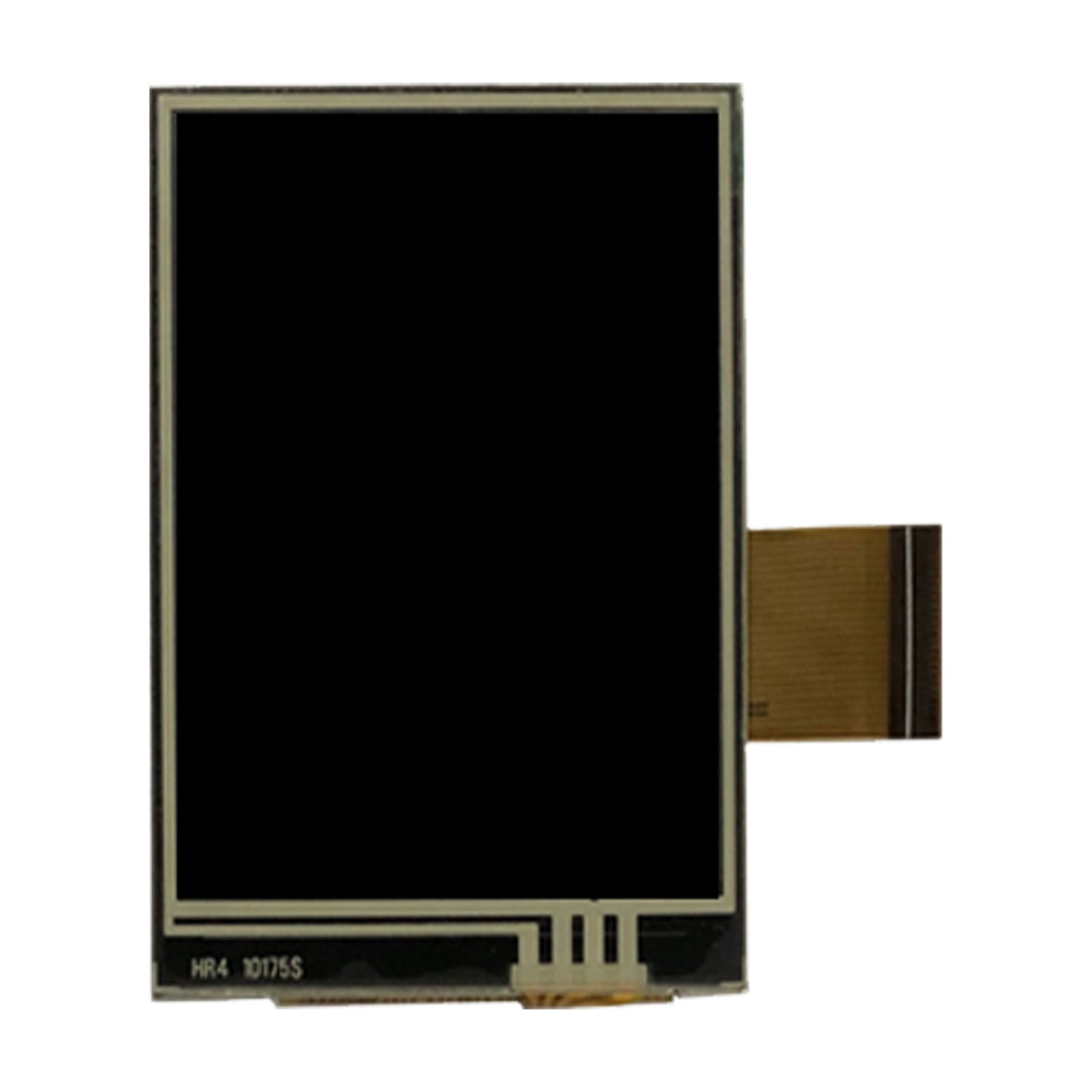

• 2.6 inch Transflective TFT Display Panel with 240x320 resolution and resistive touch capability, utilizing MCU, SPI, and RGB interfaces

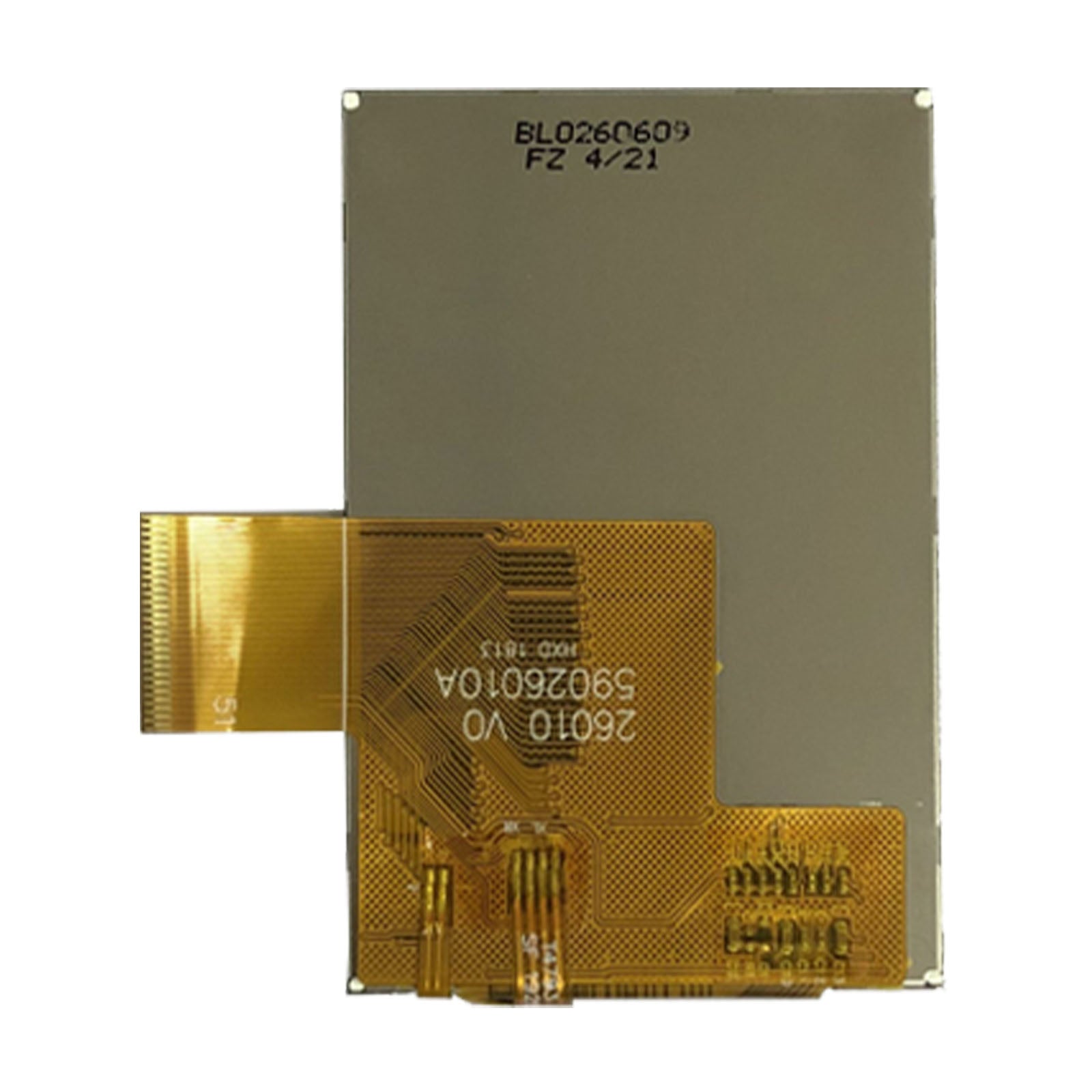

  • Back of 2.6 inch Transflective TFT Display Panel with 240x320 resolution
1 / 1

2.6" 240x320 TFT Transflective Resistive – MCU, SPI, RGB

$44.90
Shipping calculated at checkout.
SKU: DM-TFT26-443
2.6 inch Transflective TFT Display Panel with 240x320 resolution and resistive touch capability, utilizing MCU, SPI, and RGB interfaces
$44.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 2.6 inch
  • Resolution : 320(RGB) x 432 pixel
  • View Direction : All
  • Touch Mode : None
  • Module Dimension : 46.76 x 65.85 x3.91 mm
  • Viewing Area : 39.84(H) *53.78(V) mm
  • Supply Voltage : 2.8 V
  • Interface : 8/9/16/18Bit MCU Interface,3/4SPI+16/18Bit RGB Interface,3-line/4-line Serial Interface
  • Luminance : 425 cd/m2
  • Drive IC : ILI9488
  • Operation Temperature : -30℃~85℃
  • Storage Temperature : -40℃~85℃

Dimensions
