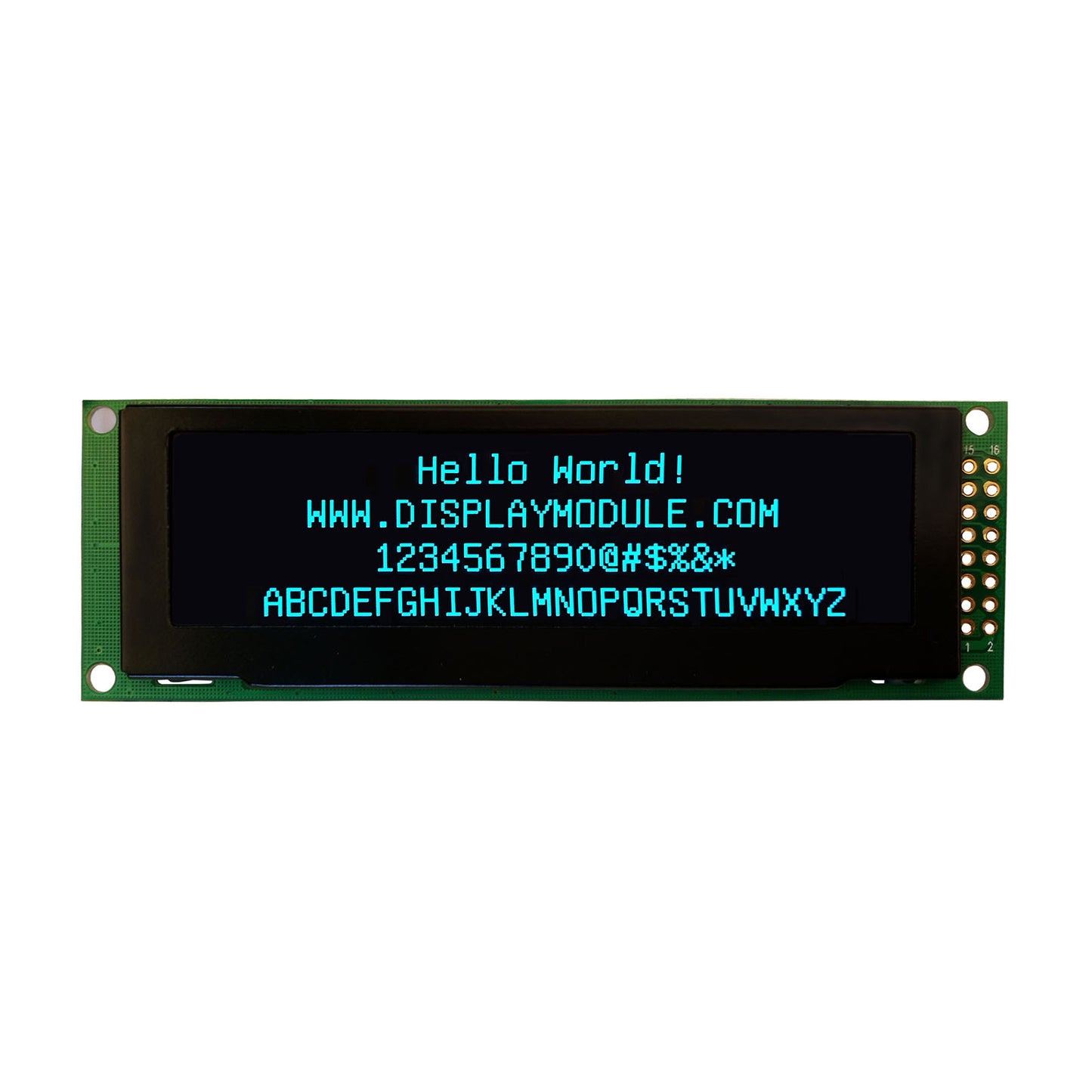

  • 3.2 inch 256x64 blue OLED screen displaying the text 'Hello World!'

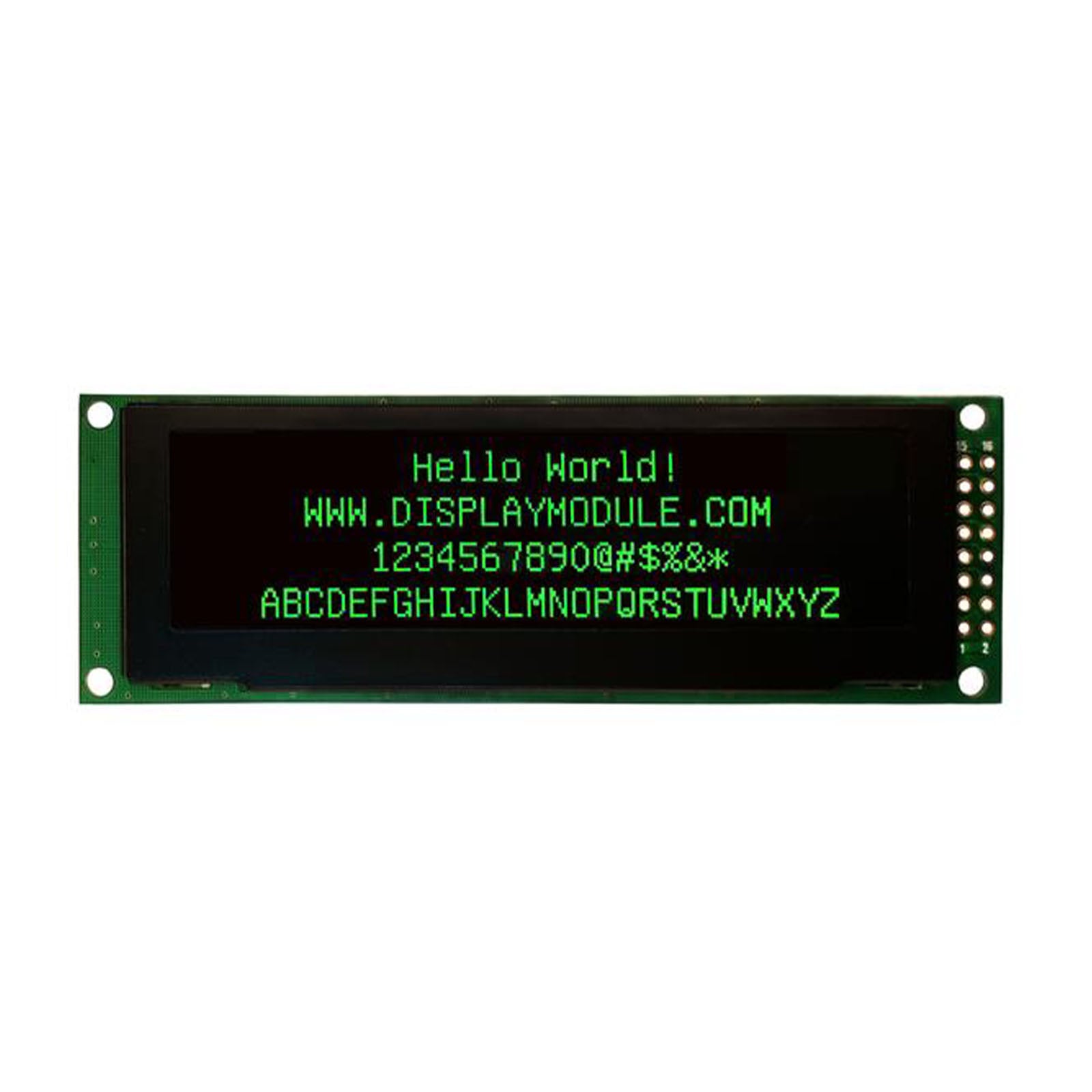

  • 3.2 inch 256x64 green OLED screen displaying the text 'Hello World!'

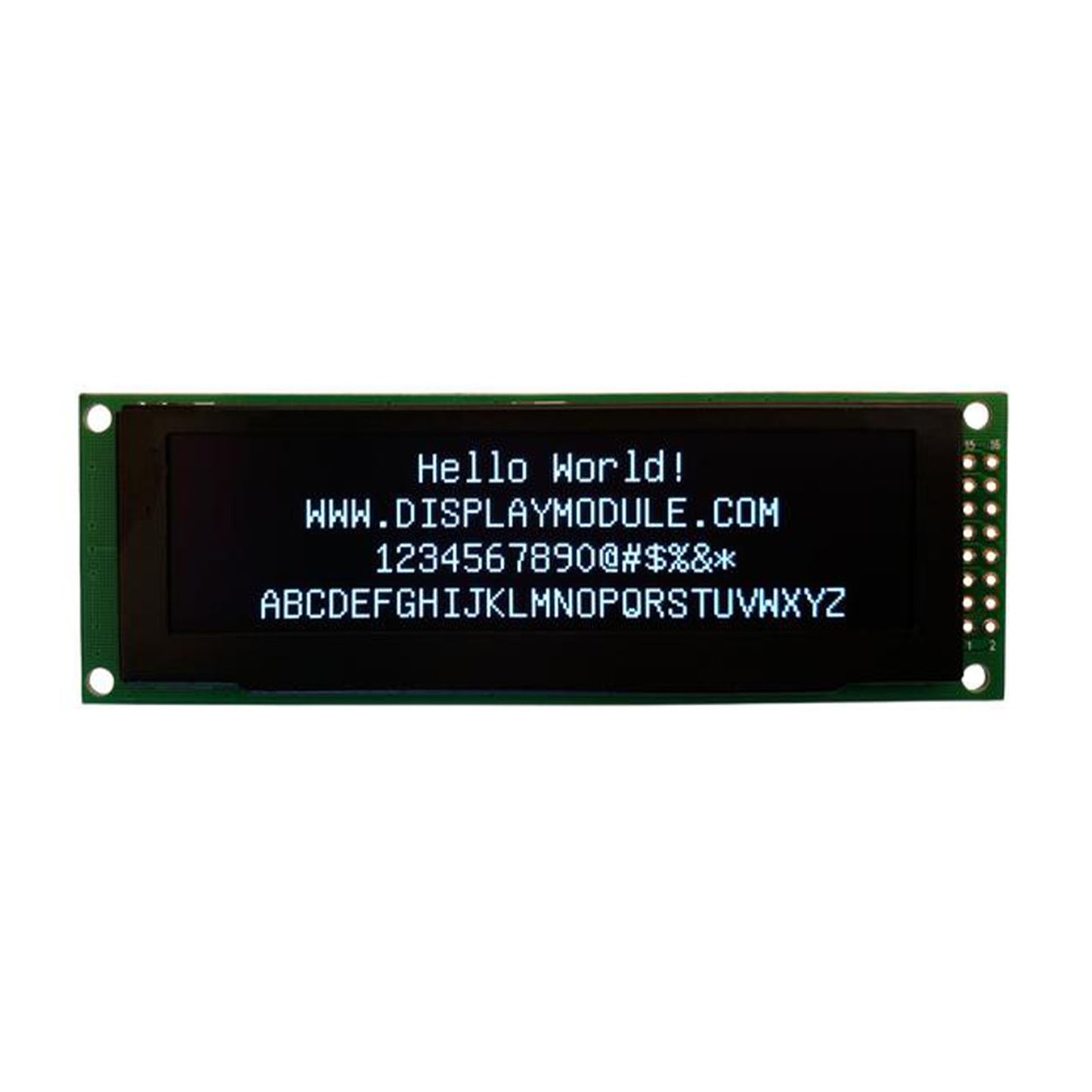

  • 3.2 inch 256x64 white OLED screen displaying the text 'Hello World!'

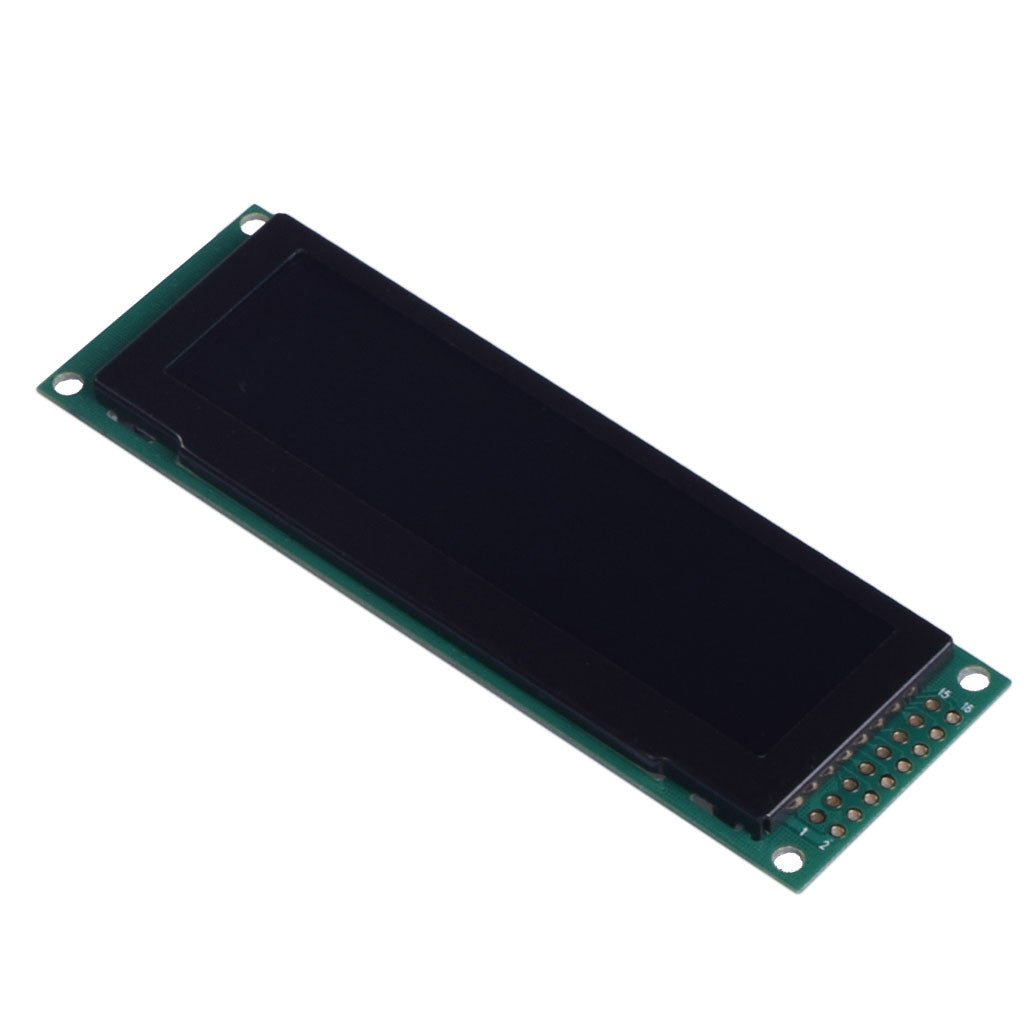

  • 3.2-inch 256x64 monochrome OLED graphic display module with MCU and SPI interfaces

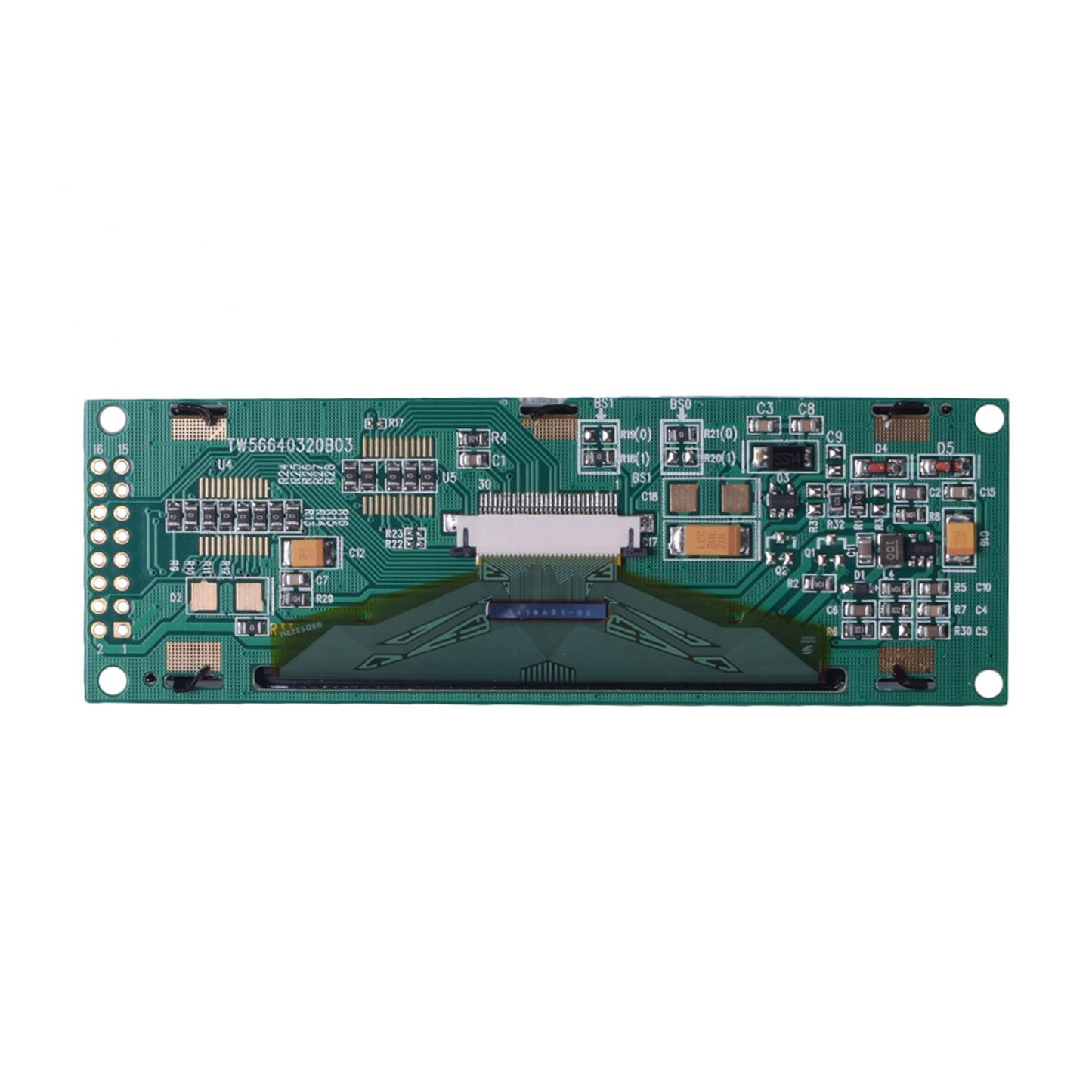

  • Back of 3.2-inch 256x64 monochrome OLED graphic display module with MCU and SPI interfaces

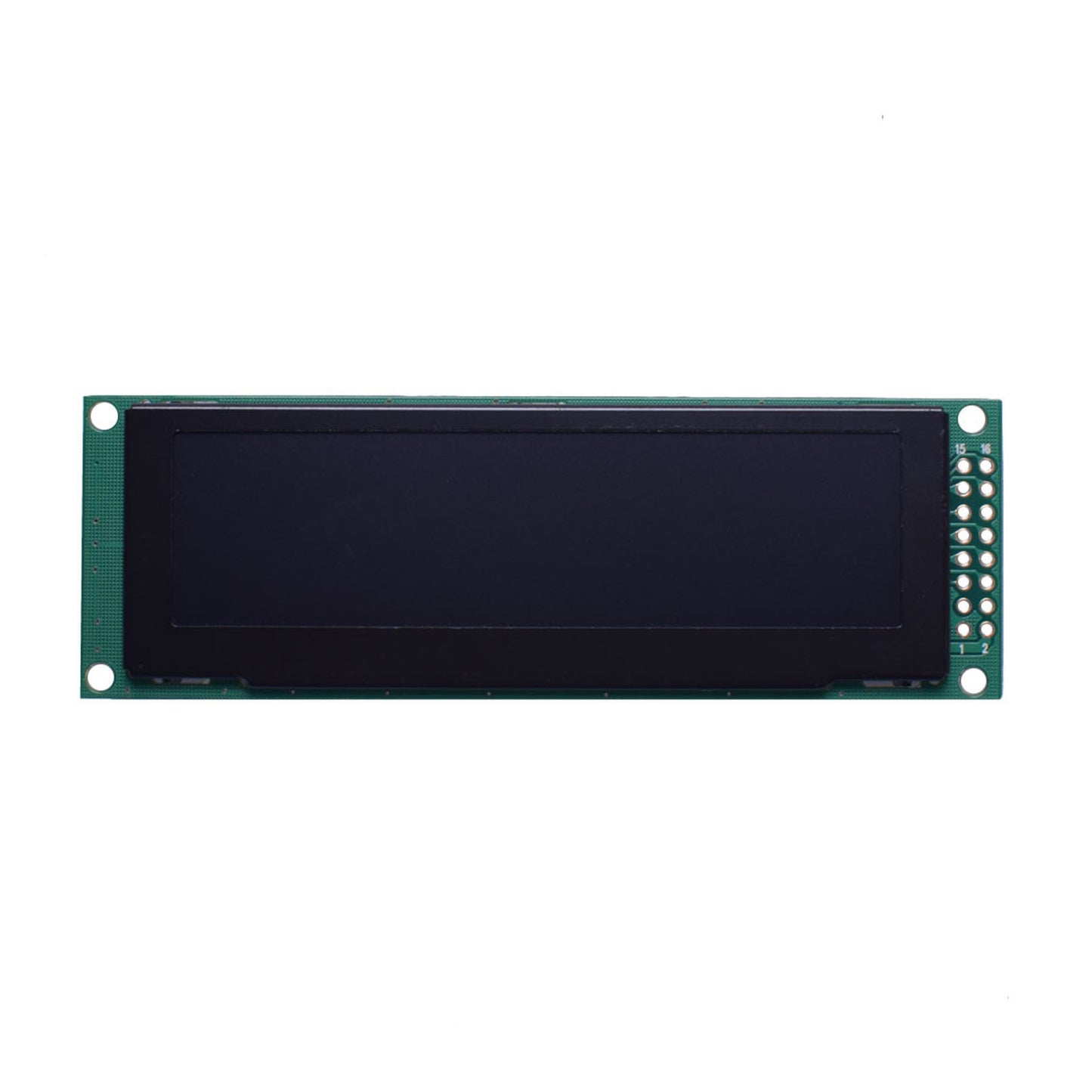

  • Top view of 3.2-inch 256x64 monochrome OLED graphic display module with MCU and SPI interfaces
1 / 1

3.2" 256x64 OLED Graphic Monochrome Display Module - MCU, SPI

$59.00
Shipping calculated at checkout.
SKU: DM-OLED32-617
Type: with Board
Color: Yellow
3.2 inch 256x64 yellow OLED screen displaying the text 'Hello World!'
$59.00
with Board / Yellow

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Resolution : 256 x 64 pixel
  • Display Mode : OLED
  • Display Color : Blue
  • Module Dimension : 100.5 x 33.5 mm
  • Viewing Area : 78.78 x 21.18 mm
  • Power Supply : 3.3/5 V
  • Interface : 8-Bit 6800/8080 Parallel、3/4-Wire Serial SPI
  • Controller IC : SSD1322
  • Operation Temperature : -30℃~85℃
  • Storage Temperature : -40℃~90℃

Dimensions

Resources

Initialization code, please refer to the datasheet.

Arduino SSD1322 Library: u8glib   uncomment device U8GLIB_NHD31OLED_GR u8g(13, 11, 10, 9, 8);
