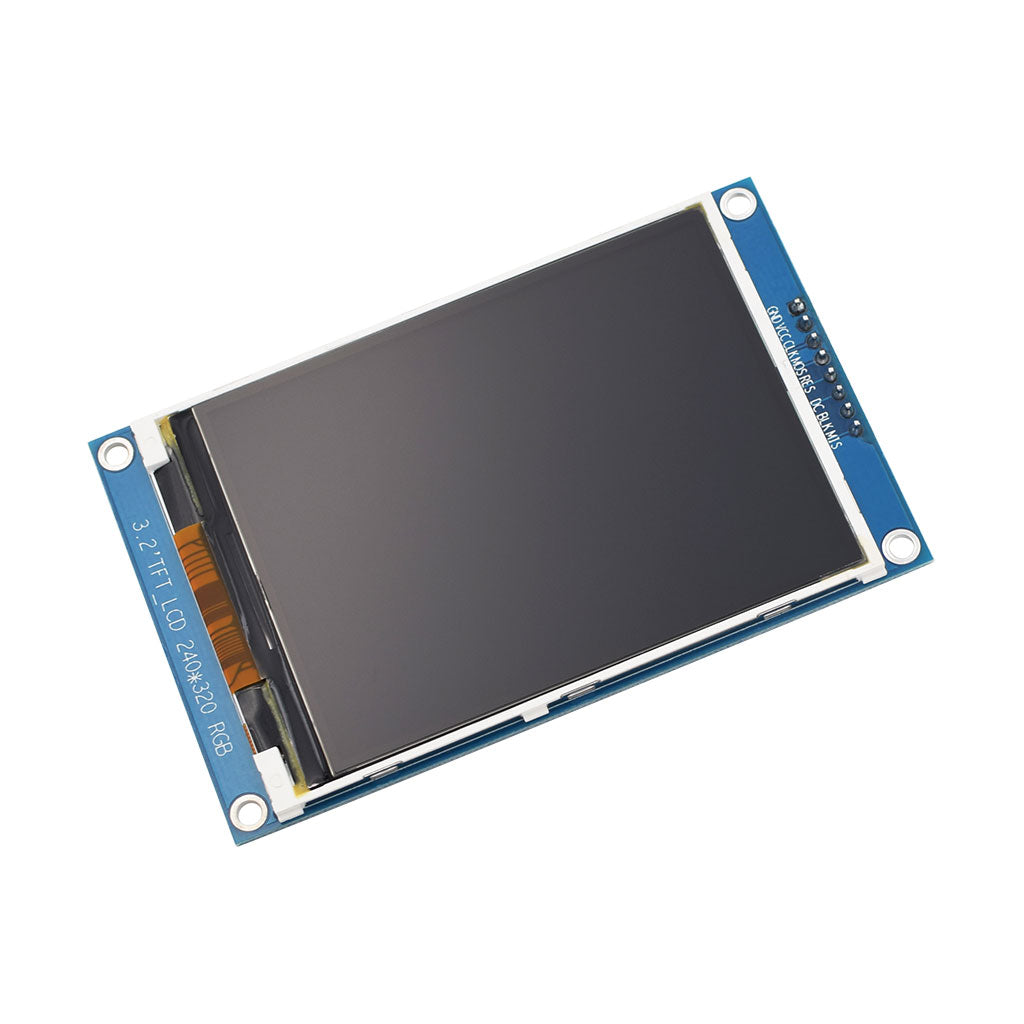

• 3.2-inch 240x320 TFT display module with SPI interface

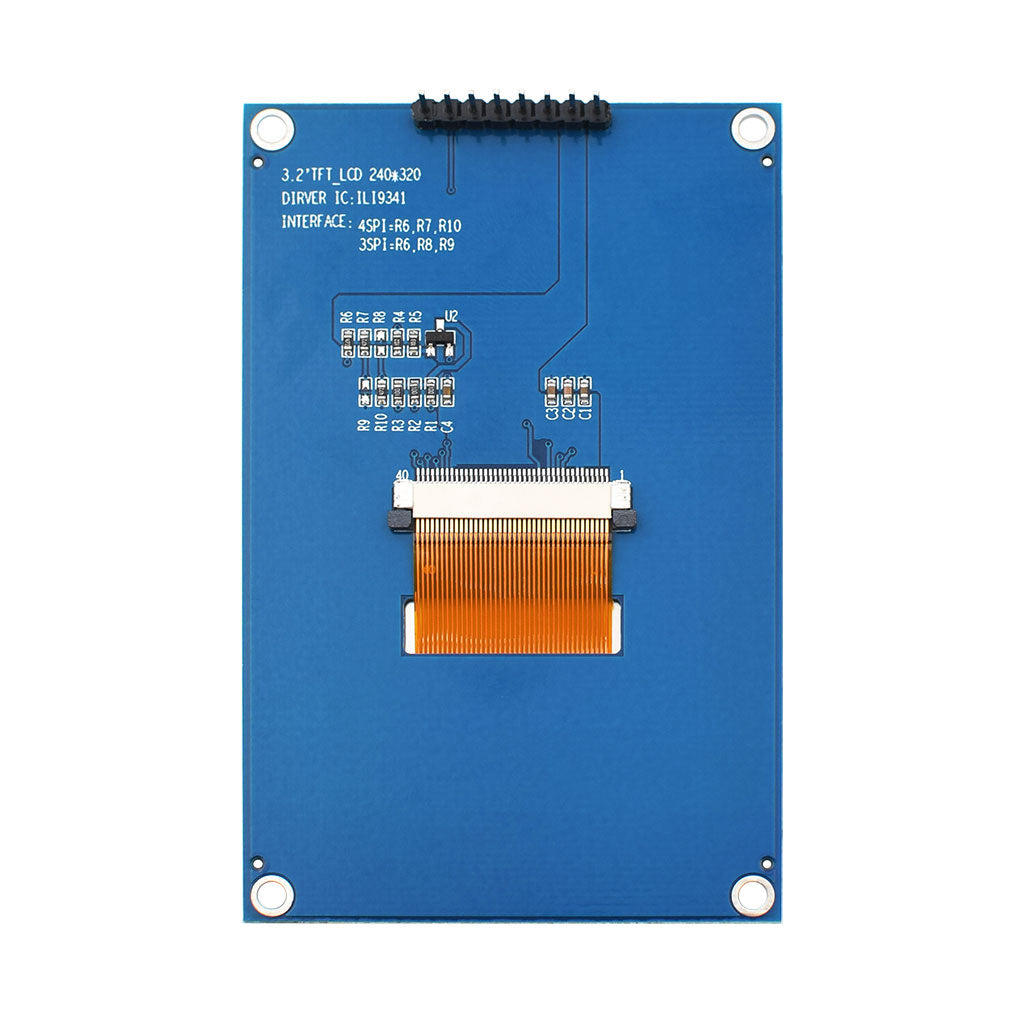

  • back of 3.2-inch 240x320 TFT display module with SPI interface

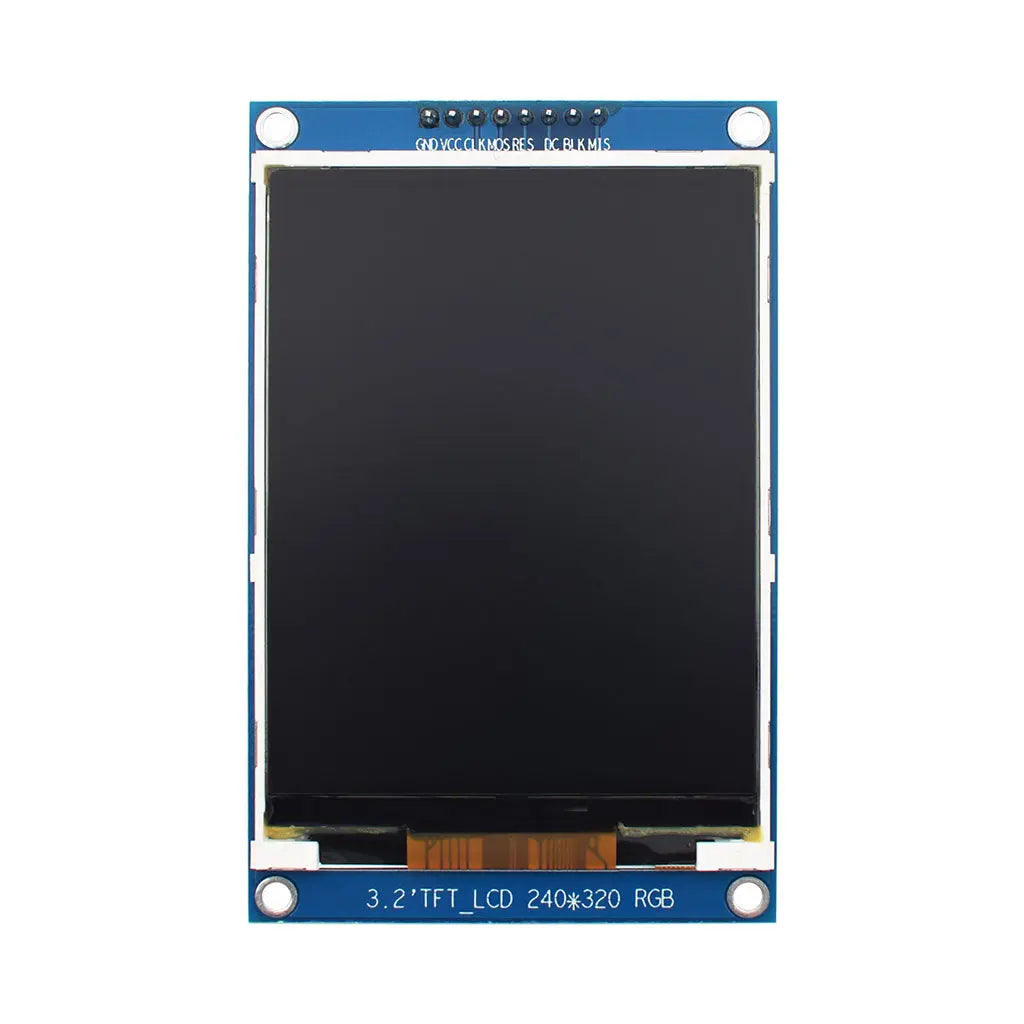

  • top view of 3.2-inch 240x320 TFT display module with SPI interface
  • 3.2-inch 240x320 TFT display panel with SPI interface
  • back of 3.2-inch 240x320 TFT display panel with SPI interface
  • top view of 3.2-inch 240x320 TFT display panel with SPI interface
1 / 1

3.2" 240x320 TFT Display Module - SPI

$24.90
Shipping calculated at checkout.
SKU: DM-TFT32-402
Style: with breakout board
3.2-inch 240x320 TFT display module with SPI interface
$24.90
with breakout board

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 3.2 inch
  • Resolution : 240(RGB)x320 pixel
  • View Direction : 12 o’clock
  • Touch Mode : None
  • Module Dimension : 56.0x89.4x4.7 mm
  • Viewing Area : 48.6x64.8 mm
  • Supply Voltage : 2.8 V
  • Interface : SPI
  • Luminance : 350 cd/m2
  • Drive IC : ILI9341
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimension



Resources

Display Driver IC: ILI9341-V1.05
