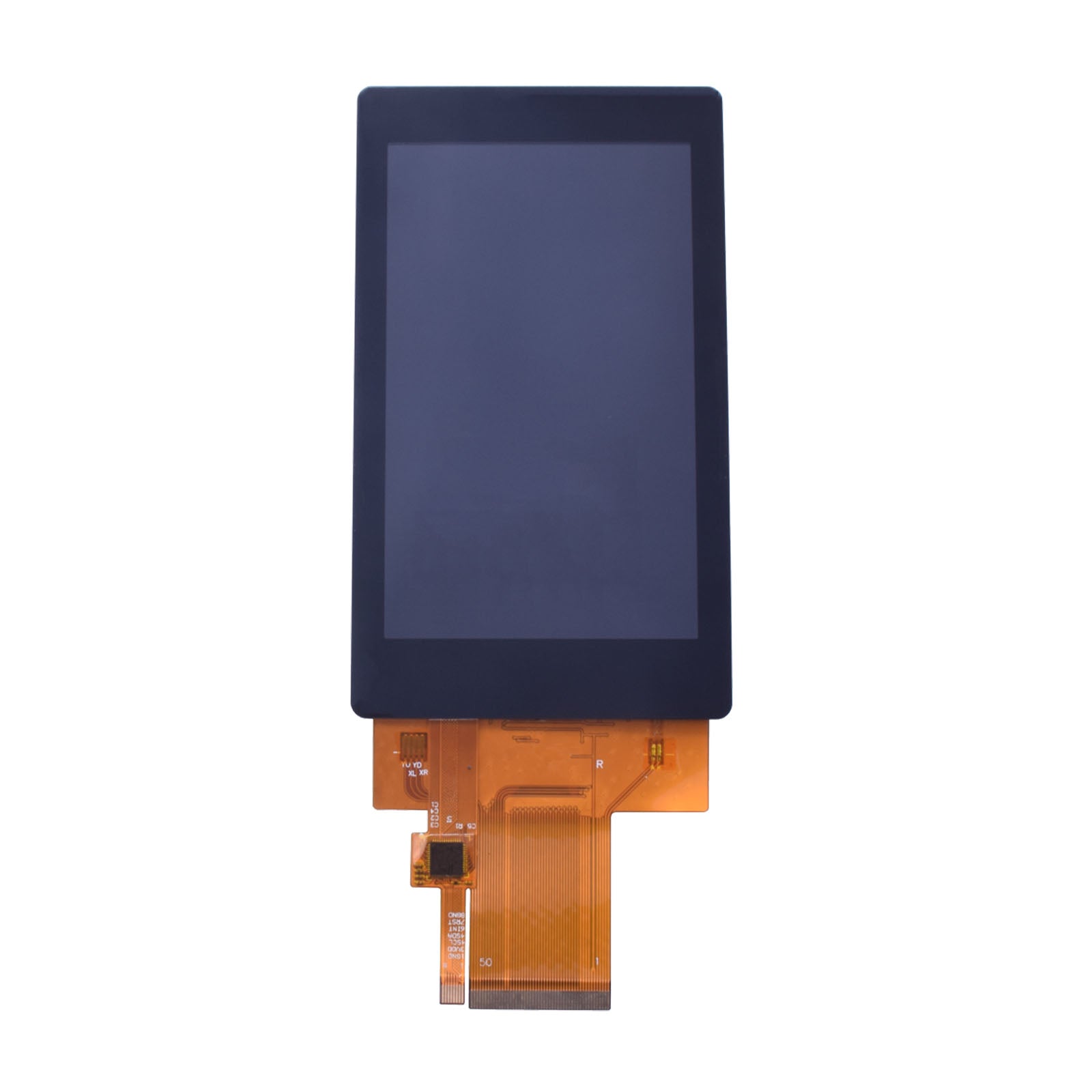

• 4.3-inch IPS display panel with 480x800 resolution, capacitive touch (GT911 controller), and SPI RGB interface

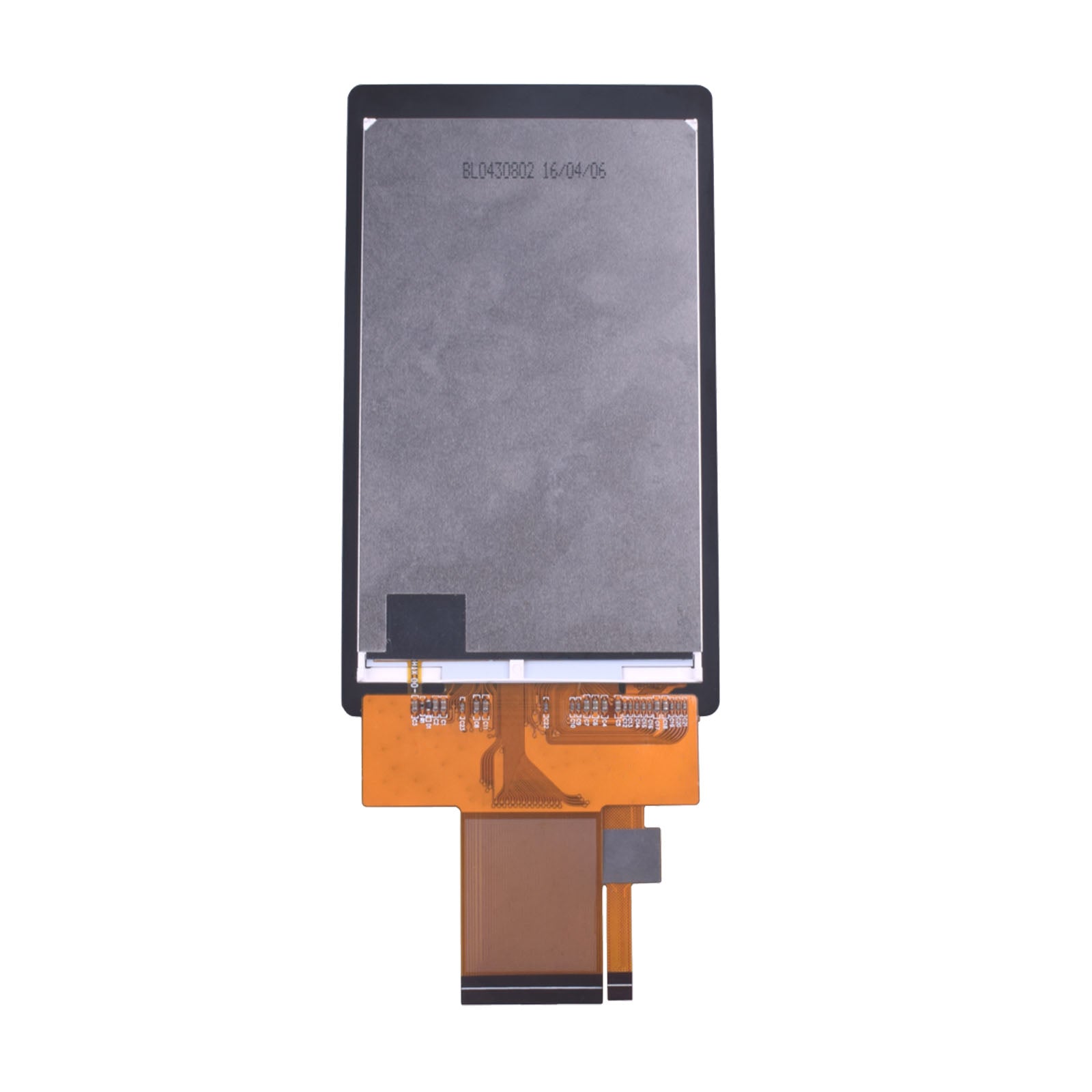

  • back of 4.3-inch IPS display panel with 480x800 resolution

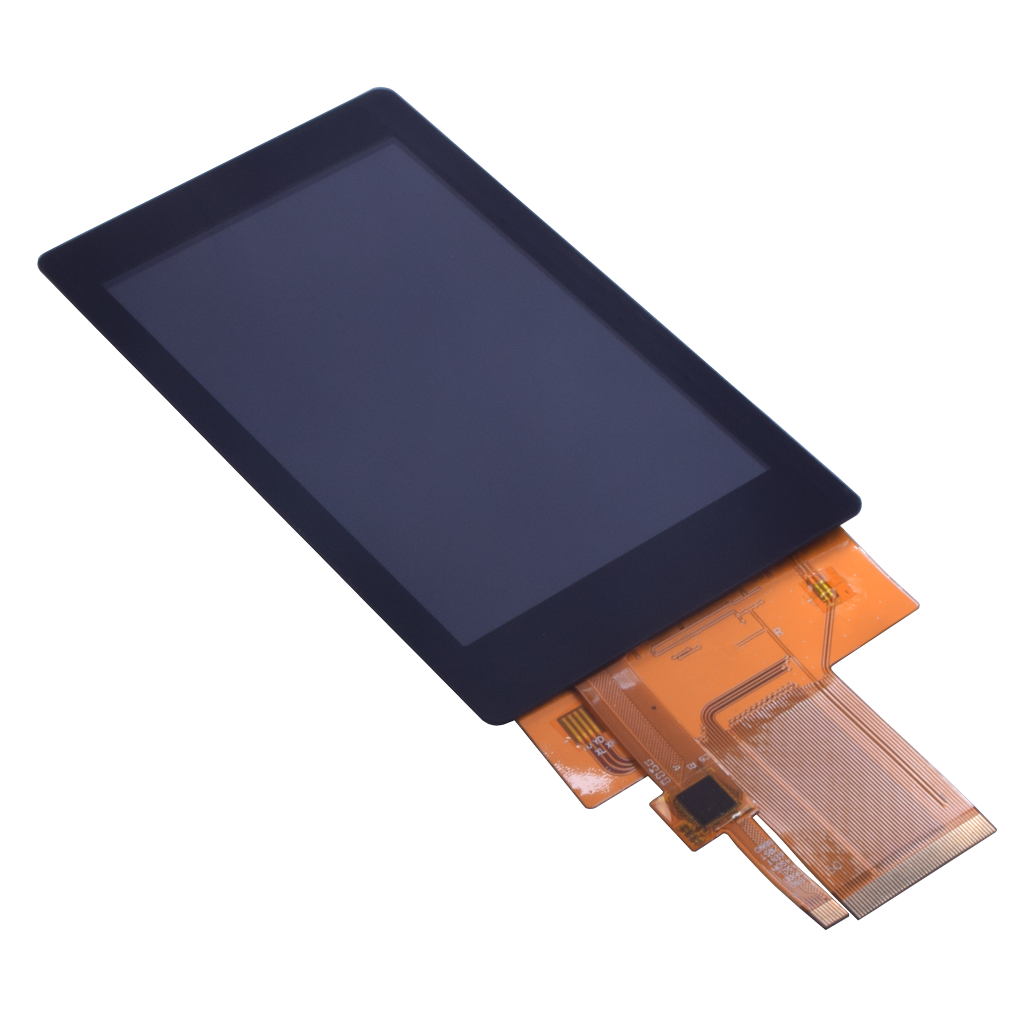

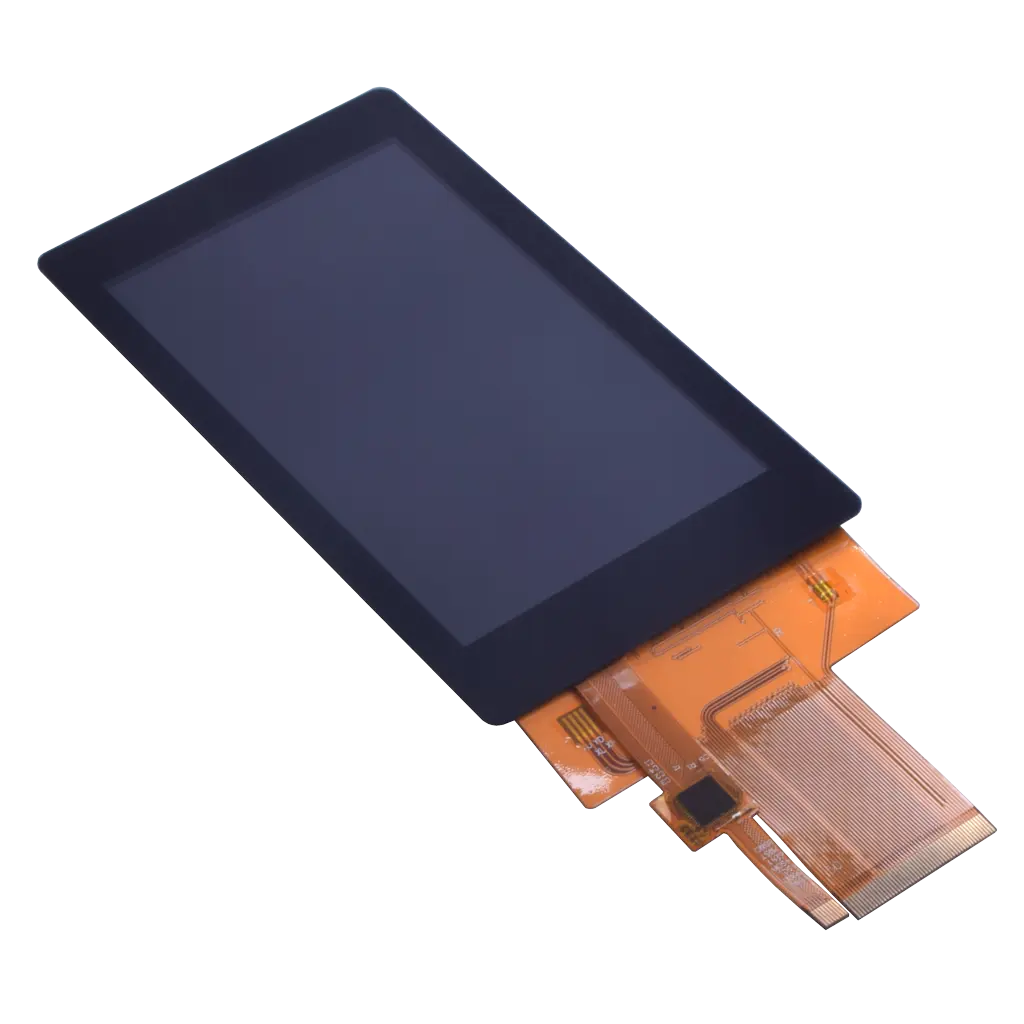

  • top view of 4.3-inch IPS display panel with 480x800 resolution
1 / 1

4.3" IPS Display 480x800 Capacitive - SPI RGB(GT911)

$49.90 $54.99
9% off
Shipping calculated at checkout.
SKU: DM-TFT43-340
4.3-inch IPS display panel with 480x800 resolution, capacitive touch (GT911 controller), and SPI RGB interface
$49.90
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

Display Specifications

  • Diagonal Dimension : 4.3 inch
  • Resolution : 480 x 800 pixel
  • View Direction : All
  • Touch Mode : Capacitive
  • Module Dimension : 62.66 x 105.95 x 3.625 mm
  • Viewing Area : 56.16 x 93.6 mm
  • Supply Voltage : 3.3 V
  • Interface : 3SPI+16/18/24 bit RGB
  • Luminance : 400 cd/m2
  • Drive IC : ILI9806E GT911
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions

Resources

GT911 Programming Guide and Source
