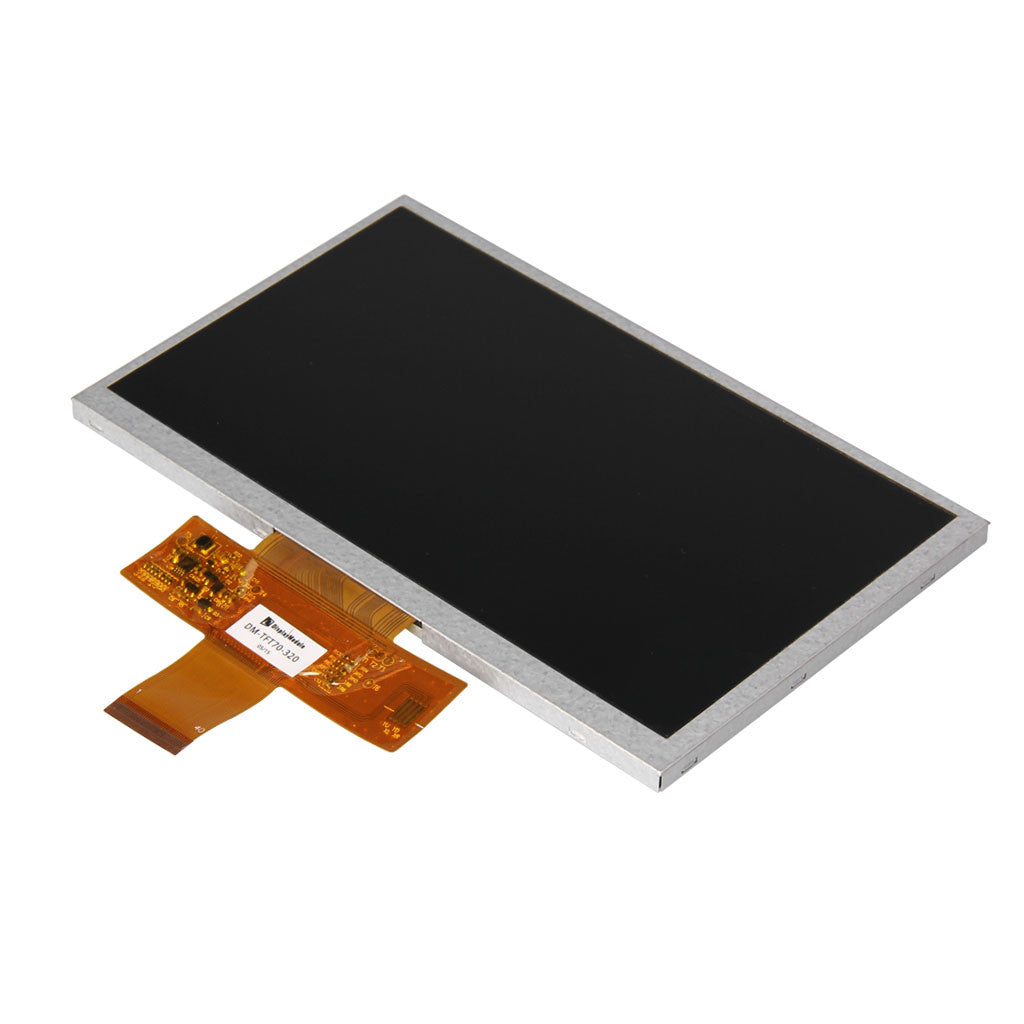

Display Specifications
- Diagonal Dimension : 7.0 inch
- Resolution : 800x480 pixel
- View Direction : 12 o’clock
- Touch Mode : None
- Module Dimension : 165.00(H)x100.00(V)x5.8(D) mm
- Viewing Area : 154.08(H)x85.92(V) mm
- Supply Voltage : 3.3 V
- Interface : 16/18/24 bit RGB
- Luminance : 450 cd/m2
- Drive IC : EK9713/EK7330
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
Resources
- DM-TFT70-320
- Display Controller: EK9713
- No init code needed for this display panel
